OMRON F3SJ-A0299P14-TS SAFETY LIGHT CURTAIN
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: F3SJ-A0299P14-TS
IMS Product Code: 2132216
Packaging: Sold Individually
Description:

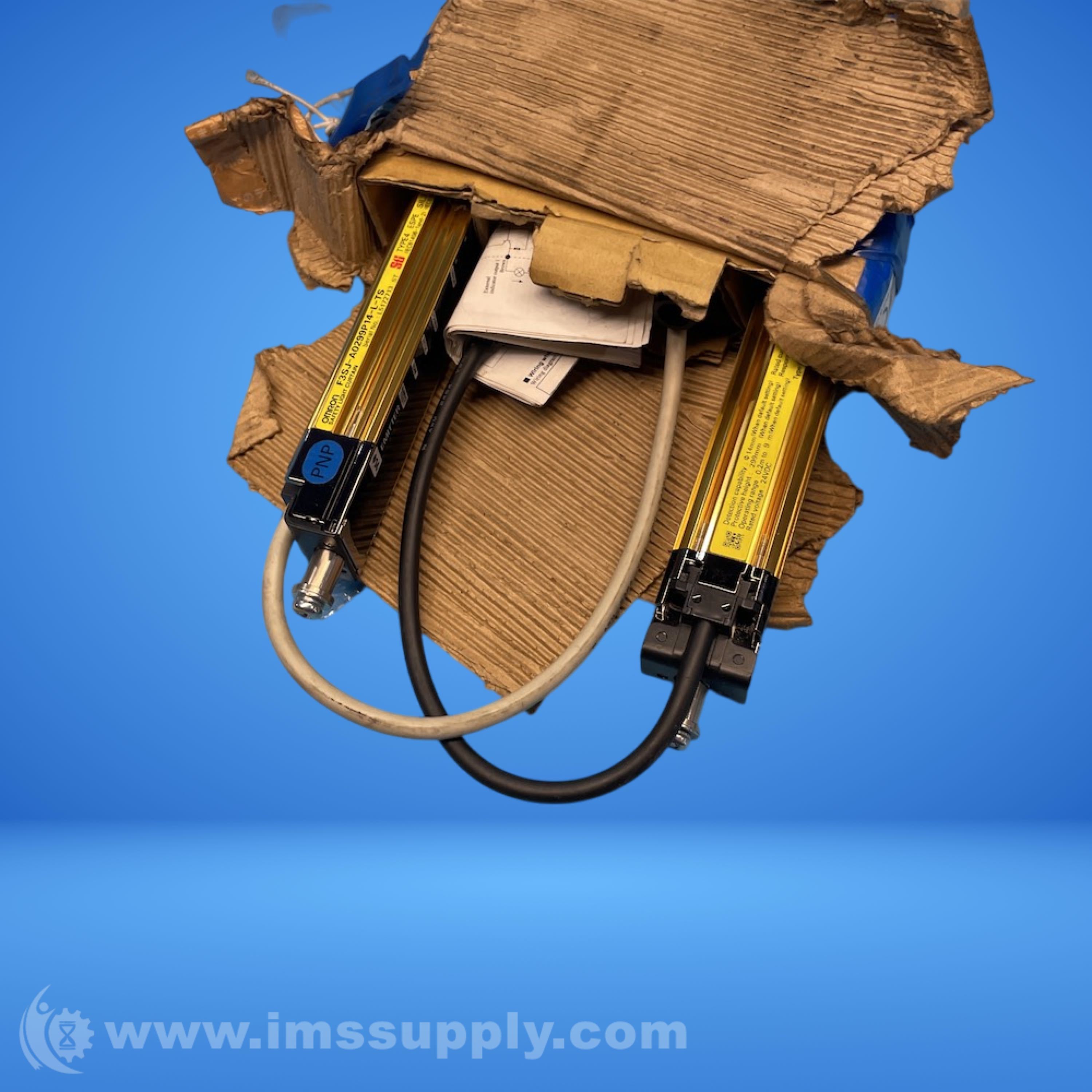

Omron F3SJ-A0299P14-TS Safety Light Curtain
Safety Light Curtain with 299mm protective height, 14mm detection capability, and IP65 protection.
Specifications
- Category: Machine Safety - Light Curtains
- Protection: Finger
- Detection Capability: 14mm
- Protective Height: 299mm
- Number of Beams: 32
- Beam Pitch: 9mm
- Operating Range: 0.2m ~ 9.0m
- Features: Blanking, Muting Function
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Operating Temperature: -10 degrees C ~ 55 degrees C
- Voltage - Supply: 24VDC
- Safety Category: 4,3,2,1,B
- Minimum Detecting Objects: Opaque diameter: 14 mm
- Optical Axis Pitch: 9 mm
- Number of Optical Axis: 32 pieces
- Detection Width: 299 mm
- Control Output: 2 x PNP transistor outputs
- Connection Method: Connector type (M12, 8 pins)

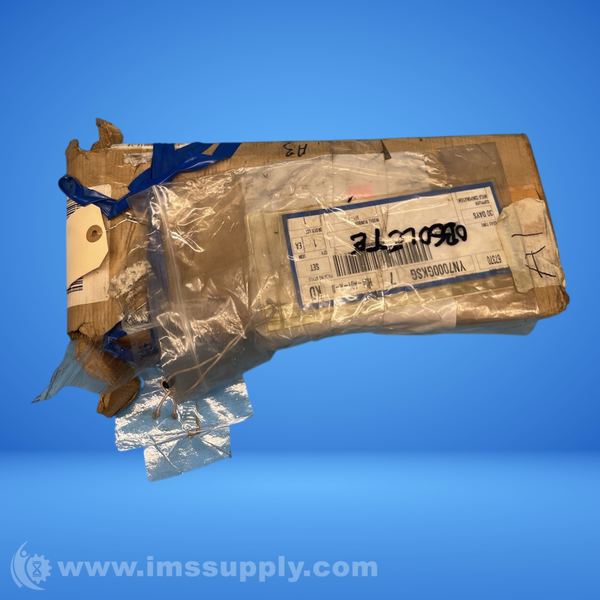

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 38 minutes.
