OMRON H2F-WM MOTOR TIME SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: H2F-WM
IMS Product Code: 2121481
Packaging: Sold Individually
Description:

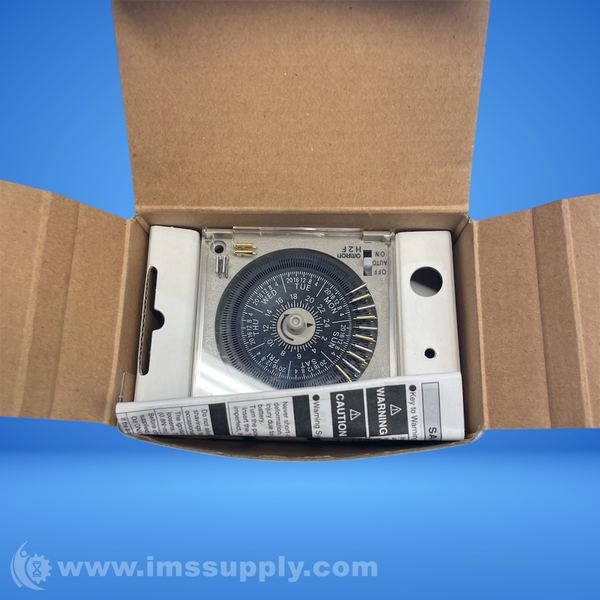

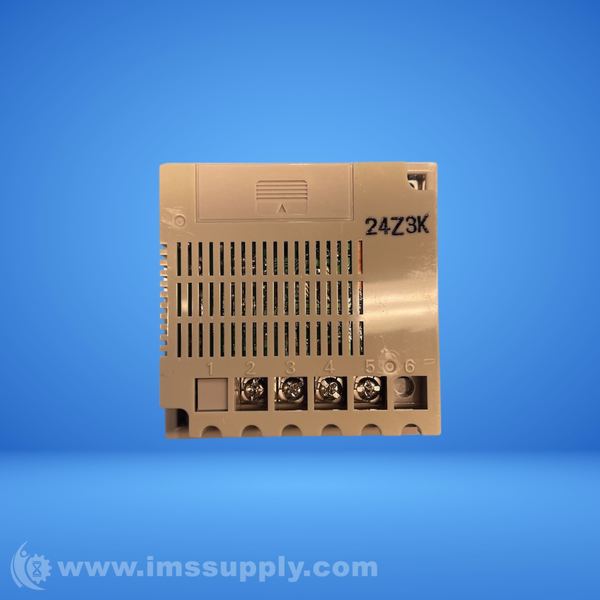

Omron H2F-WM Motor Time Switch
Compact Weekly Time Switch with DIN 72 x 72-mm Body and Power Interruption Backup.
Specifications
- Control Cycle: Weekly
- Drive Method: Quartz Motor
- Power Interruption Backup: Yes
- Power Supply Voltage: 100 to 240 VAC
- Mounting Method: Flush Mounting/Surface Mounting/Track Mounting
- Control Output: SPST-NO
- Minimum Scale Graduation: 1 h
- Minimum Set Time: 2 h
- Maximum Set Time: 166 h
- Operating Voltage Range: 85% to 110% of Rated Supply Voltage
- Power Consumption: Quartz Motor: 1 VA max. at 100 to 120 VAC, 4 VA max. at 200 to 240 VAC, 1 W max. at 12 to 24 VDC
- Ambient Operating Temperature: -10 to 55 degrees C (with no icing)
- Ambient Operating Humidity: 35% to 85%

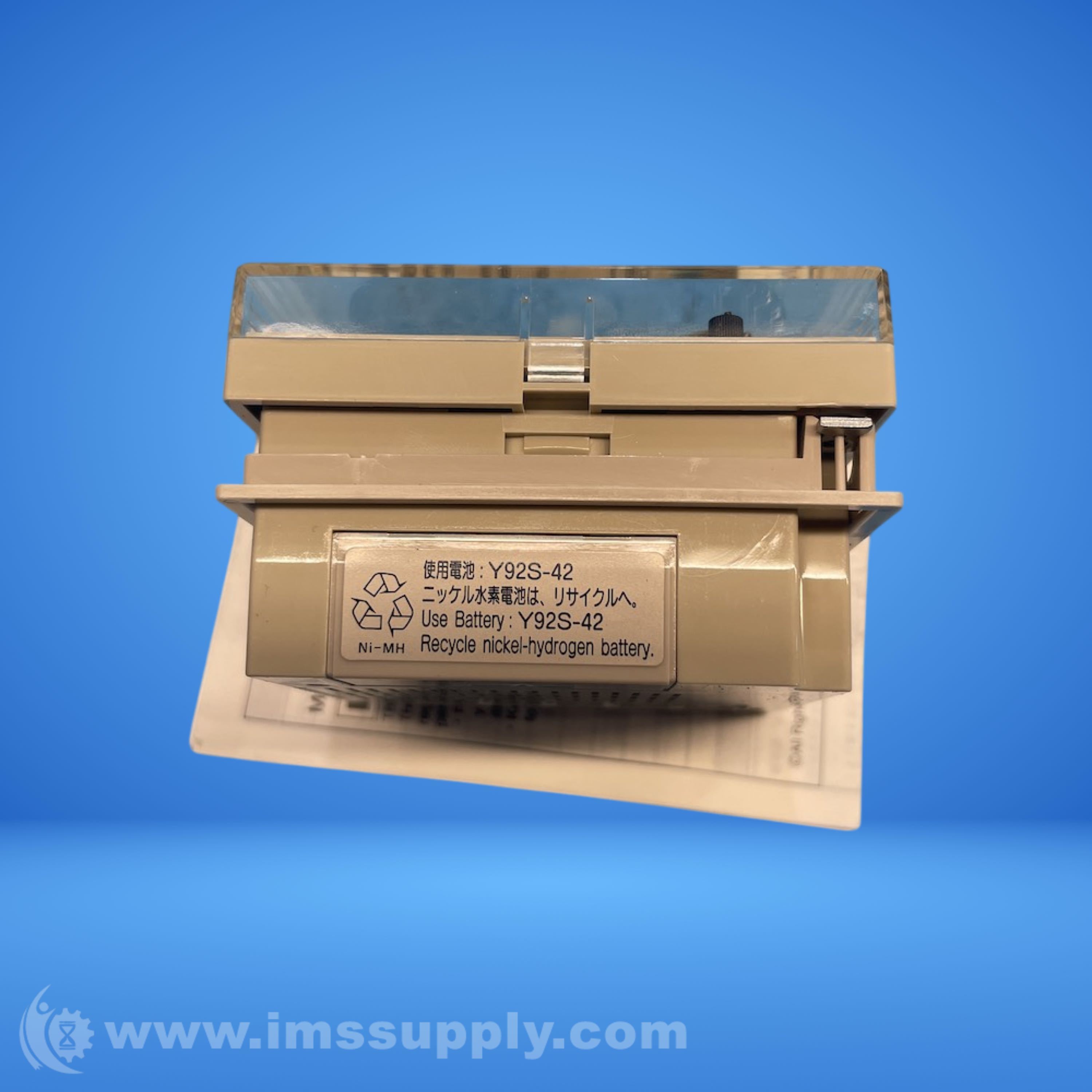

- Battery: Y92S-42

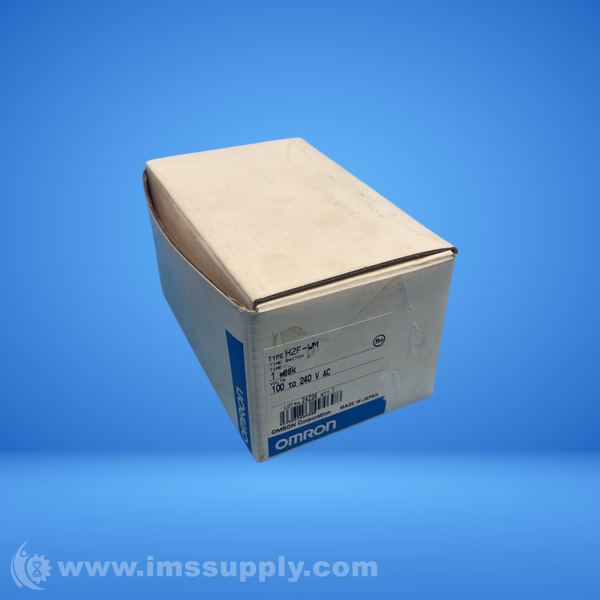

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 26 minutes.
