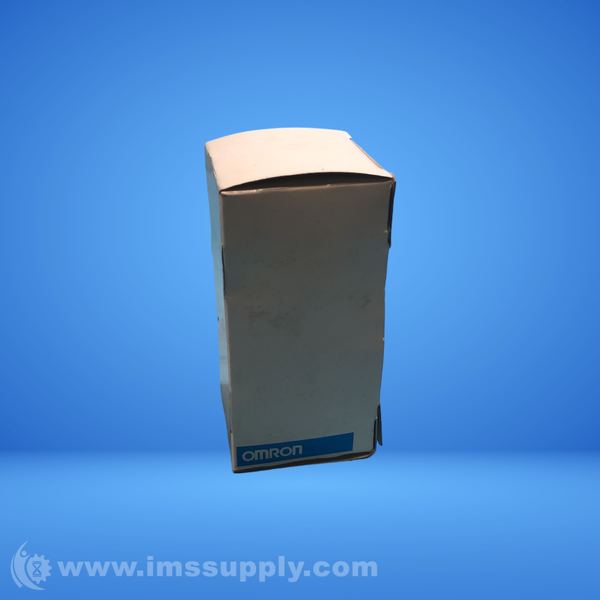

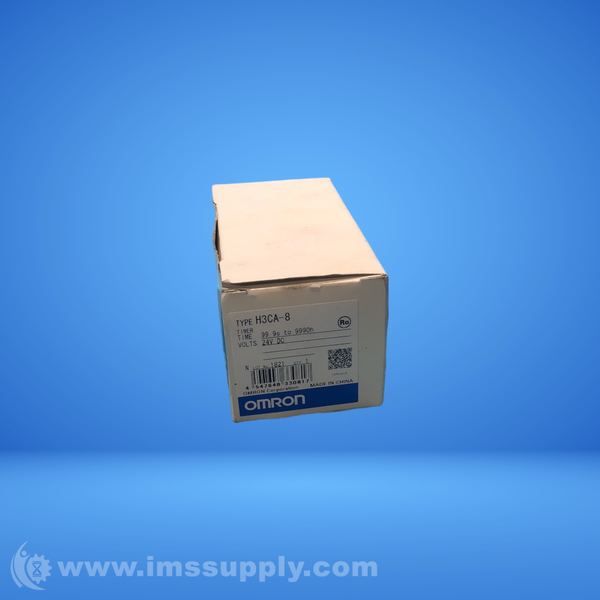

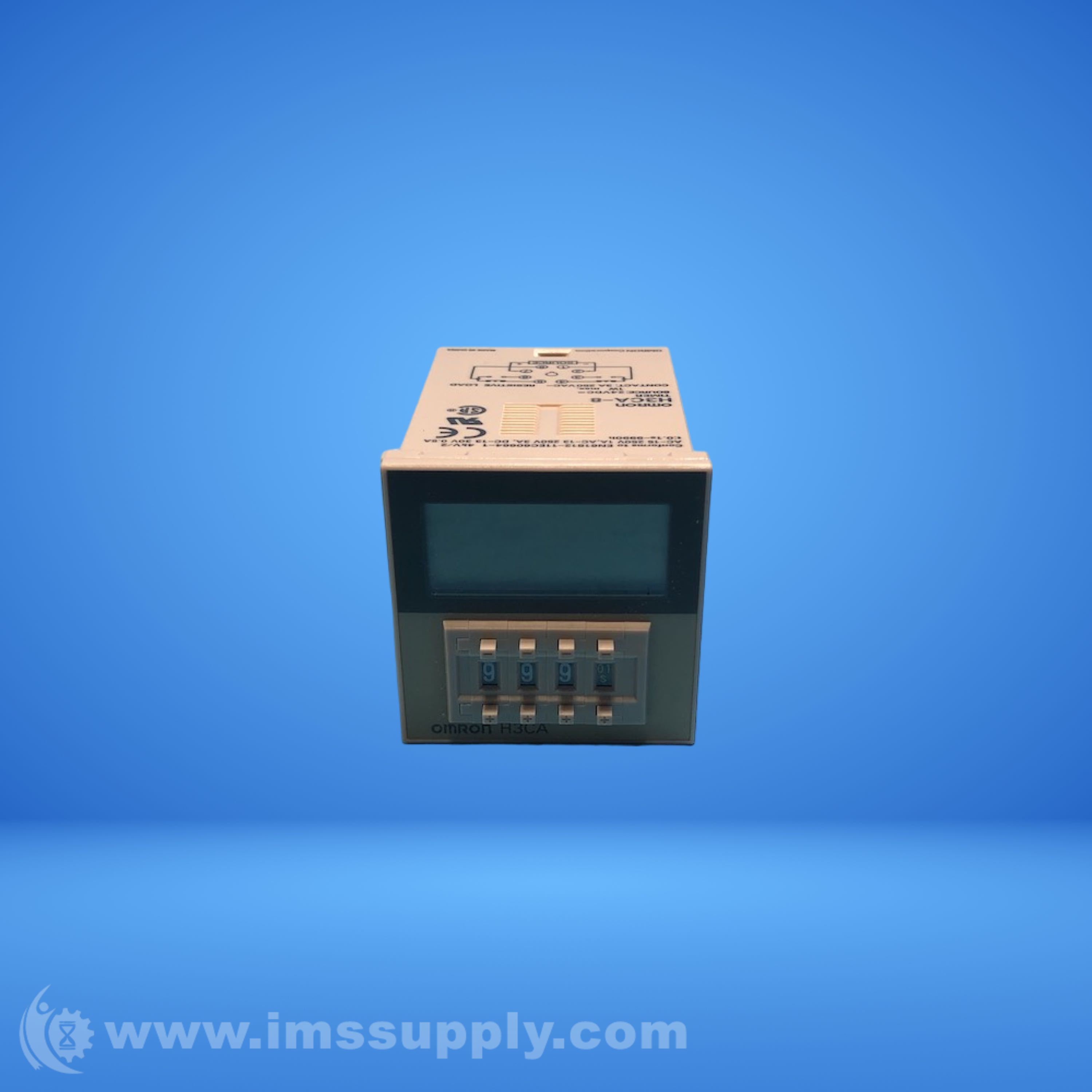

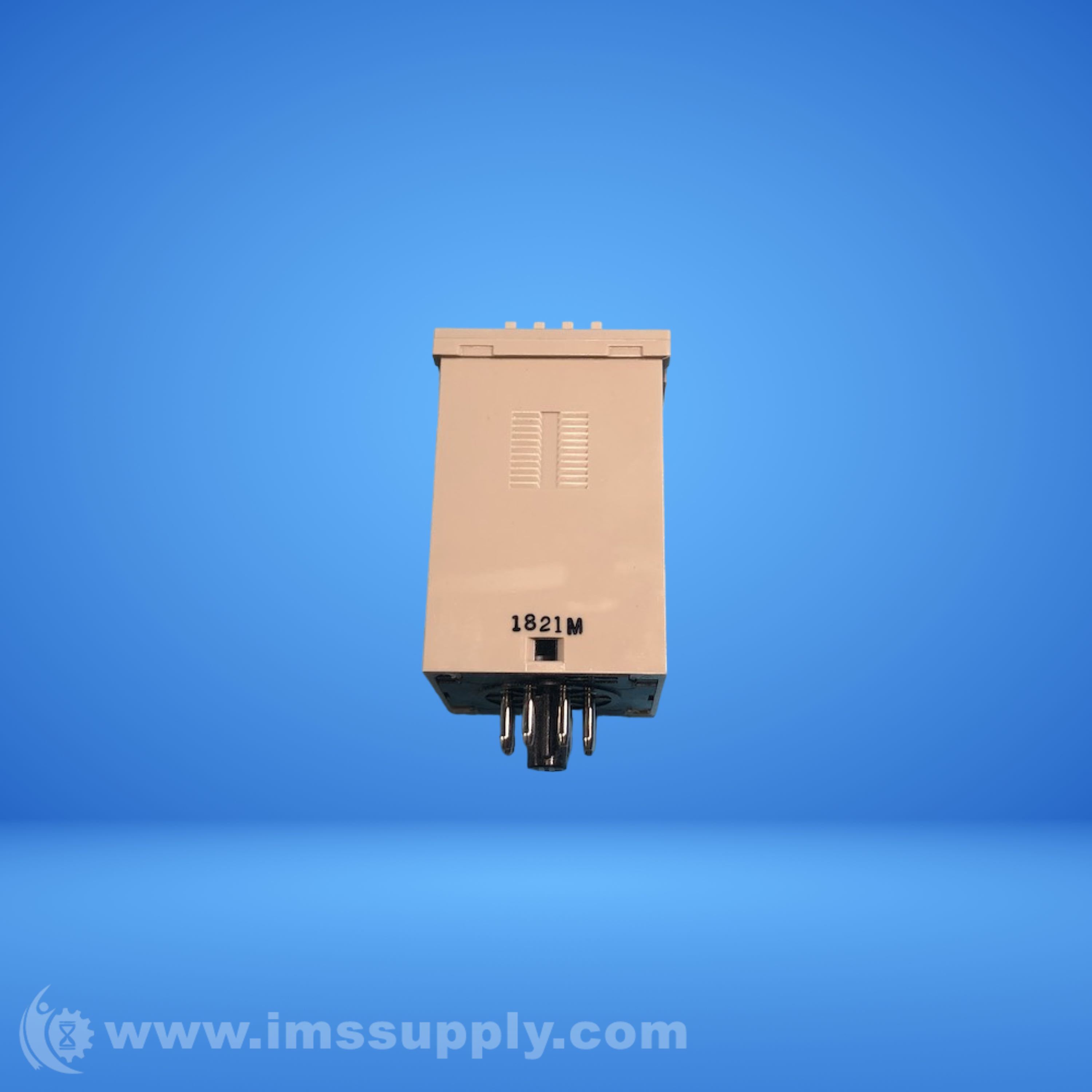

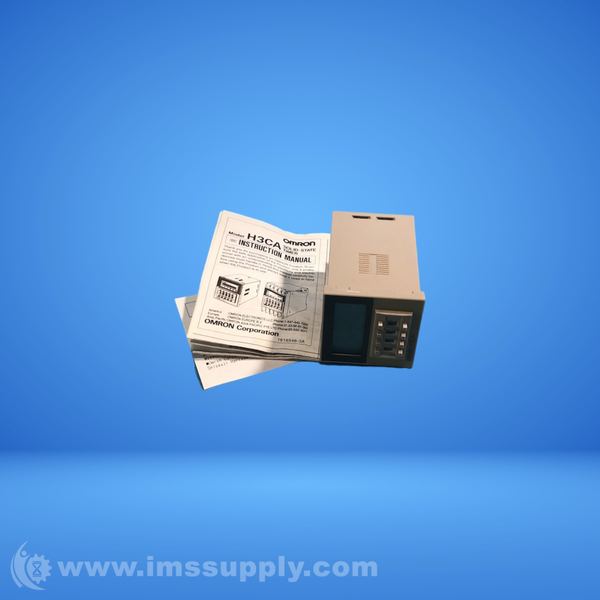

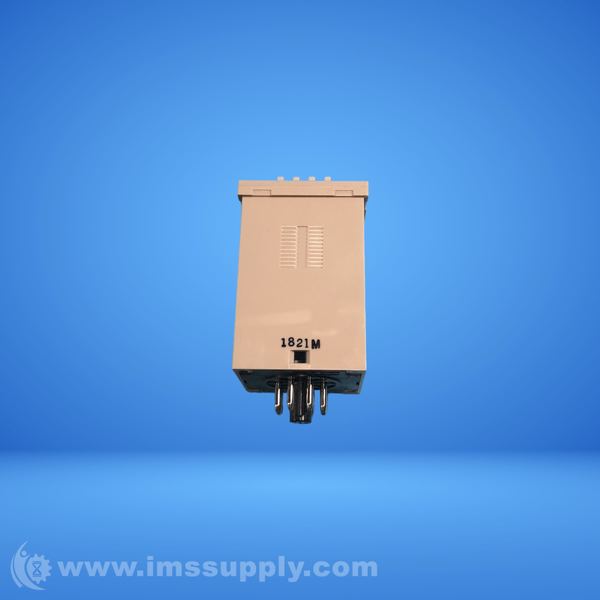

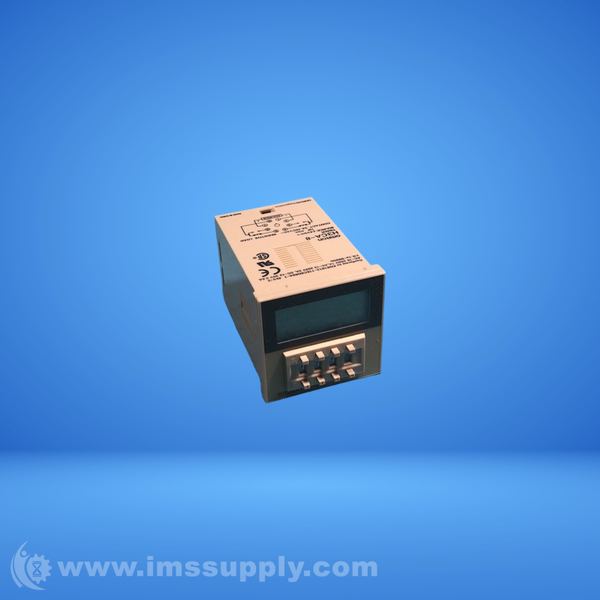

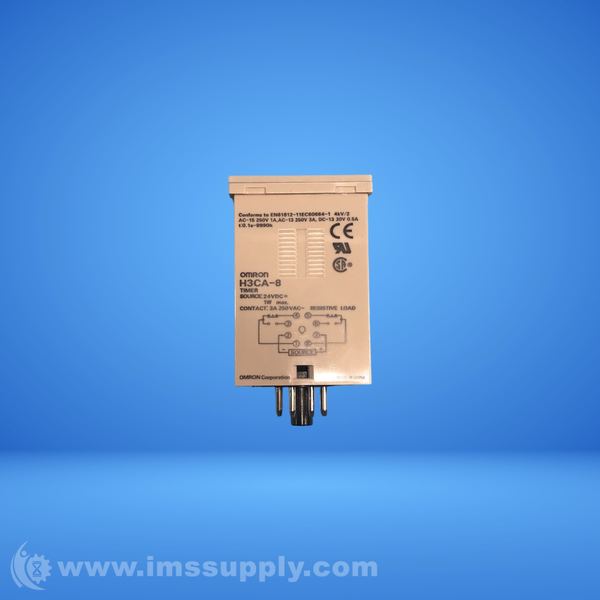

OMRON H3CA-8 SOLID STATE TIMER
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: H3CA-8
IMS Product Code: 2034362
Packaging: Sold Individually
Description:
Omron H3CA-8 Solid State Timer
Solid-state Timer with Digital Setting and LCD Display, Power ON-delay, Time-limit contact DPDT, Time range: 0.1 s to 9990 h
Specifications
- Rated supply voltage: 100/110/120 VAC (50/60 Hz)
- Operating voltage range: 85 to 110% of rated supply voltage
- Power consumption: Approx. 10 VA/Approx. 1 W
- Time ranges: 0.1 to 99.9 s, 1 to 999 s, 0.1 to 99.9 min, 1 to 999 min, 0.1 to 99.9 h, 1 to 999 h, 10 to 9990 h
- Input method: No-voltage input (open and short-circuit)
- Output modes: A: Power ON delay
- Control output: Time-limit contact: DPDT, Resistive load: 3 A at 250 VAC, Minimum applicable load: 10 mA at 5 VDC
- Reset system: Self-reset
- Power reset: Reset time: 0.1 s max.
- Display method: LCD 3 digit
- Ambient temperature: -10 to 55 degrees C
- Ambient humidity: 35 to 85 %
- Accuracy of operating time: ±0.3% ±0.05 s
- Setting error: ±0.5% ±0.05 s
- Influence of voltage: ±0.3% ±0.05 s
- Influence of temperature: ±0.3% ±0.05 s
- Insulation resistance: 100 MO min. (at 500 VDC)
- Dielectric strength: Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min, Between control output terminals and operating circuit: 2000 VAC 50/60 Hz 1 min, Between non-continuous contacts: 1000 VAC 50/60 Hz 1 min
- Impulse withstand voltage: Between power terminals: 3 kV, Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV
- Vibration resistance: Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour, Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min
- Shock resistance: Destruction: 1,000 m/s2, 3 times each in 6 directions, Malfunction: 100 m/s2, 3 times each in 6 directions
- Life expectancy: Electrical: 100,000 operations min. (3 A at 250 VAC resistive load at 1800 operations/h), Mechanical: 10 million operations min. (under no load at 1,800 operations/h)
- Degree of protection: IP40
- Mounting method: Flush mounting / Surface mounting

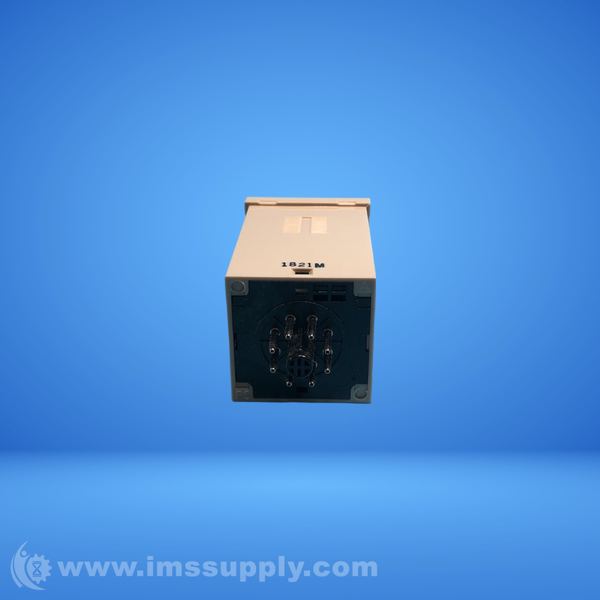

- External connection method: 8-pin round socket
- Applicable socket: P2CF-08, P2CF-08-E, P3G-08, PL08
- Contact Form: DPDT (2 Form C)
- Current Rating: 3 A
- Mounting Type: Socket
- Number of Pins: 8
- Relay Type: Mechanical Relay
- Standards: UL, CSA, CE
- Timer Type: On Delay
- Timing Range: 0.1 Sec. to 9990 Hrs.
- Voltage Rating: 250 VAC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
