OMRON H3CR-A SOLID-STATE MULTI-FUNCTIONAL TIMERS
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: H3CR-A
IMS Product Code: 1756998
Packaging: Sold Individually
Description:
Omron H3CR-A Solid-state Multi-functional Timers
Solid-state multi-functional timer with multiple operating modes and time ranges. DIN 48 x 48-mm size with relay output and various mounting options.
Specifications
- Operating Mode: A: ON-delay, B: Flicker OFF start, B2: Flicker ON start, C: Signal ON/OFF-delay, D: Signal OFF-delay, E: Interval, G: Signal ON/OFF-delay, J: One-shot
- Pin Type: 11-pin
- Input Type: No-voltage input, Voltage input
- Time-limit Output Type: Relay output (DPDT)
- Instantaneous Output Type: Relay output (SPDT)
- Mounting Method: DIN track mounting, surface mounting, and flush mounting
- Approved Standards: UL508, CSA C22.2 No.14, NK, Lloyds, CCC: GB/T 14048.5
- Rated Operating Voltage Ue: 100 to 240 VAC (50/60 Hz)/100 to 125 VDC, 24 to 48 VAC (50/60 Hz)/12 to 48 VDC
- Rated Operating Current Ie: AC-15: Ue: 250 VAC, Ie: 3 A, AC-13: Ue: 250 VAC, Ie: 5 A, DC-13: Ue: 30 VDC, Ie: 0.5 A
- Rated Insulation Voltage: 250 V
- Rated Impulse Withstand Voltage: 4 kV (at 240 VAC)
- Conditional Short-circuit Current: 1000 A
- Time Ranges: 0.05-s to 300-h
- Power Consumption: H3CR-A/-A8: 100 to 240 VAC/100 to 125 VDC (When at 240 VAC, 60 Hz): Relay ON: approx. 2.0 VA (1.6 W), Relay OFF: approx. 1.3 VA (1.1 W), 24 to 48 VAC/12 to 48 VDC (When at 24 VDC): Relay ON: approx. 0.8 W, Relay OFF: approx. 0.2 W
- Control Outputs: Models with Contact Outputs: 5A at 250 VAC/30 VDC, 0.15A at 125 VDC, resistive load (cosf = 1)
- Accuracy of Operating Time: ±0.2% FS max.
- Setting Error: ±5% FS ±50 ms
- Reset Time: Min. power-opening time: 0.1 s max.
- Reset Voltage: 10% max. of rated supply voltage
- Influence of Voltage: ±0.2% FS max.
- Influence of Temperature: ±1% FS max.
- Insulation Resistance: 100 MO min.
- Dielectric Strength: 2,000 VAC (1,000 VAC for H3CR-A[]S), 50/60 Hz for 1 min
- Impulse Withstand Voltage: 5 kV (between power terminals) for 100 to 240 VAC/100 to 125 VDC, 1 kV for 24 to 48 VAC/12 to 48 VDC
- Noise Immunity: ±1.5 kV (between power terminals) and ±600 V (between no-voltage input terminals)
- Static Immunity: Malfunction: 8 kV, Destruction: 15 kV
- Vibration Resistance: Destruction: 10 to 55 Hz with 0.75-mm single amplitude each in 3 directions for 2 hours each, Malfunction: 10 to 55 Hz with 0.5-mm single amplitude each in 3 directions for 10 minutes each
- Shock Resistance: Destruction: 1,000 m/s2 3 times each in 6 directions, Malfunction: 100 m/s2 3 times each in 6 directions
- Ambient Temperature: Operating: -10°C to 55°C (with no icing), Storage: -25°C to 65°C (with no icing)
- Ambient Humidity: Operating: 35% to 85%
- Life Expectancy: Mechanical: 20,000,000 operations min., Electrical: 100,000 operations min.
- EMC: (EMI) EN61812-1, (EMS) EN61812-1
- Case Color: Light gray (Munsell 5Y7/1)
- Degree of Protection: IP40 (panel surface)
- Weight: Approx. 90 g

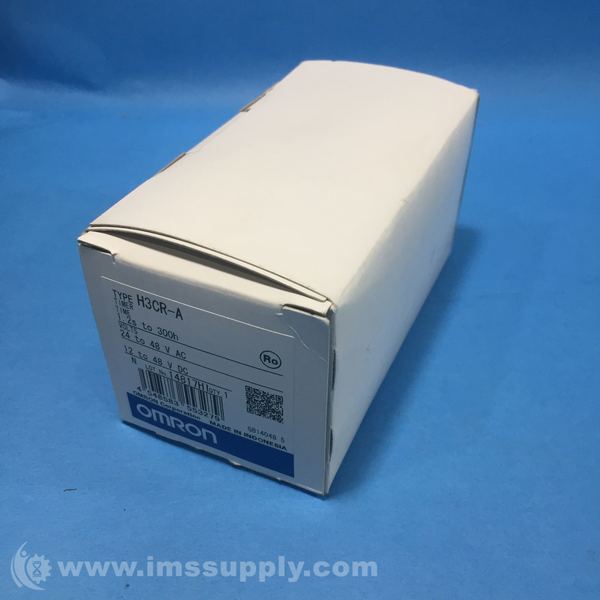

New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 45 minutes.

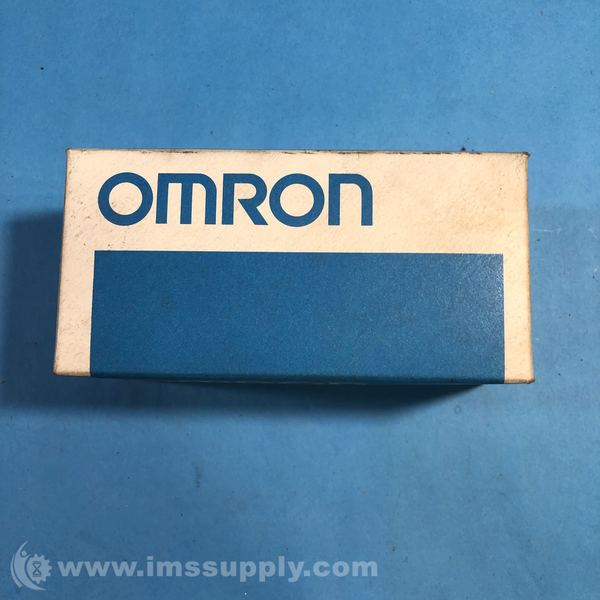

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 45 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 4 hours and 45 minutes.
Used (Special):
ATTACHED PART: UNKNOWN MFG, PN 2-M4X30
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 45 minutes.
