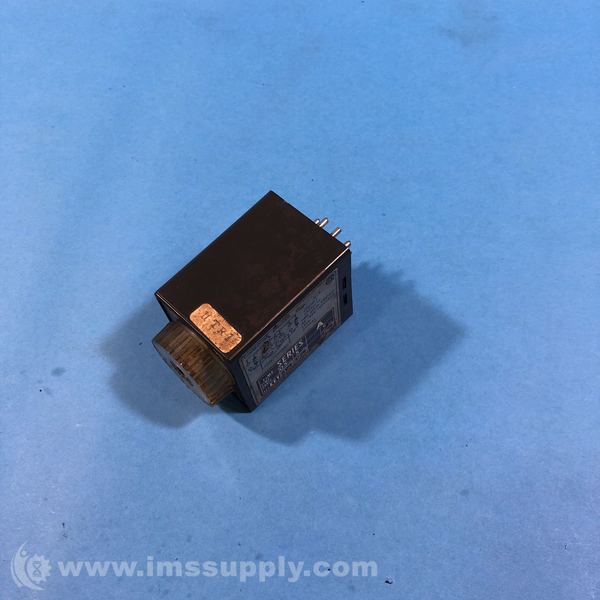

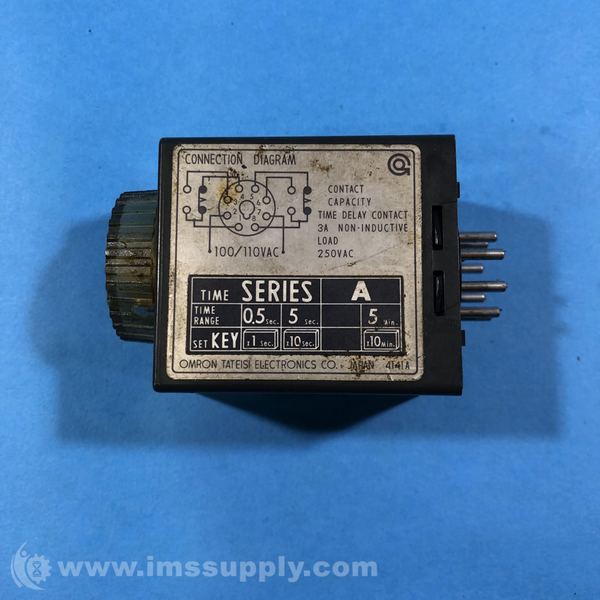

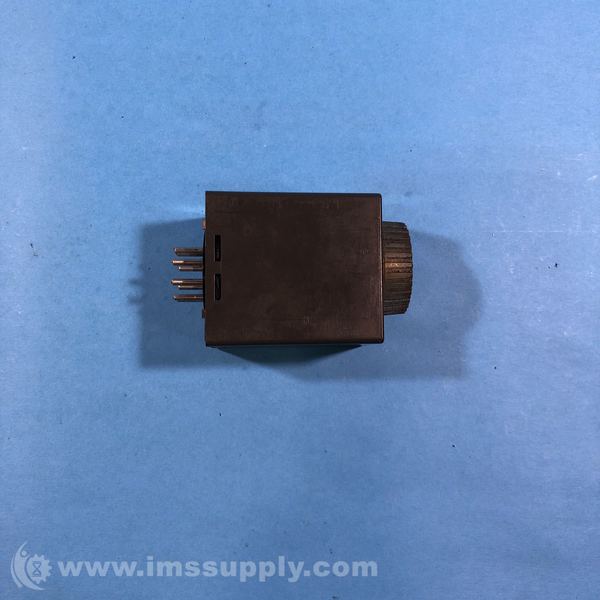

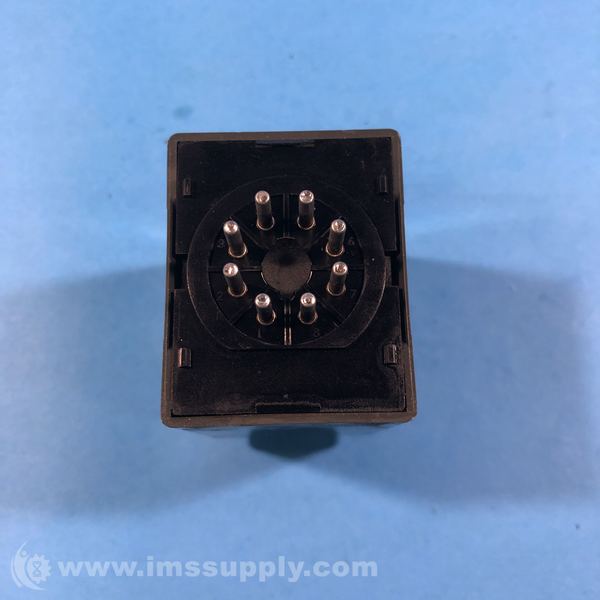

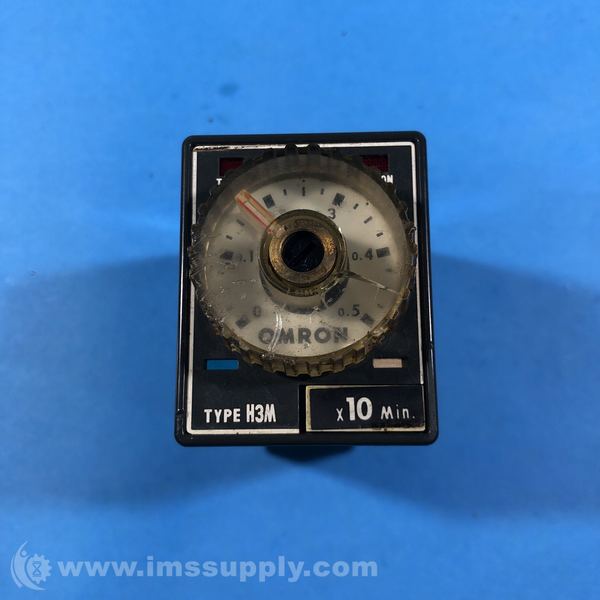

OMRON H3M SOLID-STATE TIMER
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: H3M
IMS Product Code: 1913702
Packaging: Sold Individually
Description:
Omron H3M Solid-State Timer
Solid-state Timer with Variable Time Ranges
Specifications
- Rated supply voltage: 100/110/120 VAC (50/60 Hz), 200/220/240 VAC (50/60 Hz), 12, 24, 48, 100, 110 VDC
- Operating voltage range: AC: 85% to 110% of rated supply voltage, DC: 80% to 110% of rated supply voltage
- Power consumption: AC: Approx. 5 VA/2 W, DC: Approx. 2 W
- Control outputs: 5 A at 250 VAC, resistive load (cosf = 1)
- Accuracy of operating time: ±1% max.
- Setting error: ±10% max.
- Reset time: 0.1 s max.
- Influence of voltage: ±1% max.
- Influence of temperature: ±2% max.
- Insulation resistance: 100 MO min. (at 500 VDC)
- Dielectric strength: 2,000 VAC, 50/60 Hz for 1 min (between current-carrying and non-current-carrying parts), 1,500 VAC, 50/60 Hz for 1 min (between contact and control circuit), 1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
- Vibration resistance: Destruction: 10 to 55 Hz with 0.75-mm double amplitude, Malfunction: 10 to 55 Hz with 0.5-mm double amplitude
- Shock resistance: Destruction: 1,000 m/s2 (approx. 100 G), Malfunction: 100 m/s2 (approx. 10 G)
- Ambient temperature: Operating: -10°C to 50°C, Storage: -25°C to 65°C
- Ambient humidity: Operating: 35% to 85%
- Life expectancy: Mechanical: 20,000,000 operations min. (under no load at 1,800 operations/h), Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h)
- Approved standards: UL (File No. E41515), CSA (File No. LR22310)
- Weight: Approx. 100 g
- Timing Range: 0.05 second to 30 hours
- Mounting Type: Surface mounting
- Mounting Space: 40 x 50 mm
- Indicators: Power-ON & time-out indicators
- Approvals: UL, CSA, LR
- Time Series: C, D, E
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
