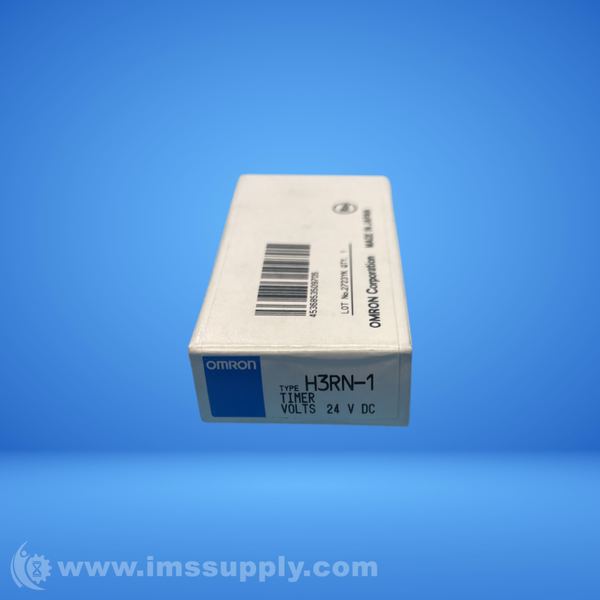

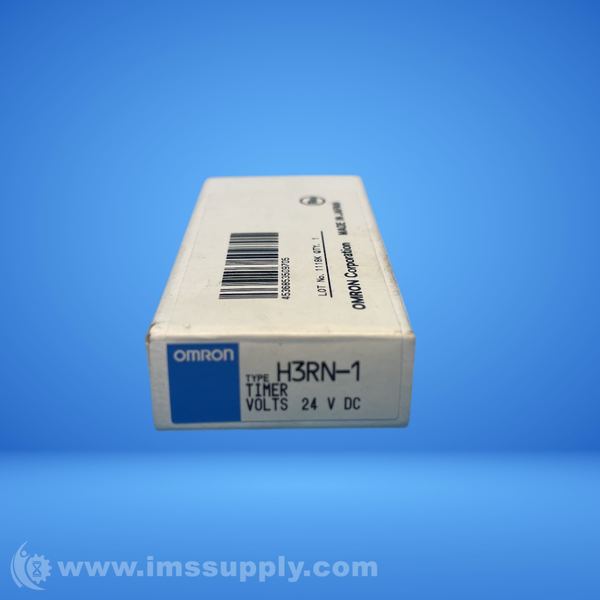

OMRON H3RN-1 SOLID-STATE TIMER
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: H3RN-1
IMS Product Code: 2142294
Packaging: Sold Individually
Description:
Omron H3RN-1 Solid-State Timer
Solid-state Timer with multiple operation modes and SPDT output
Specifications
- Rated power supply voltage: 24 VDC
- Allowable voltage variable range: 90 to 110% of the power supply voltage
- Power consumption: Approx. 0.4 W
- Reset voltage: 10% max. of rated supply voltage
- Number of time ranges: 4
- Operation mode: ON delay, Flicker OFF start, Flicker ON start, Interval
- Control output (Type): Time-limit: SPDT
- Control output (Contact output): Resistive load: 3 A at 250 VAC (cosf=1), Minimum applicable load: 10 mA at 5 VDC
- Ambient temperature range: Operating: -10 to 55 degrees C, Storage: -25 to 65 degrees C
- Ambient humidity range: Operating: 35 to 85%
- Accuracy of operating time: �1% FS max.
- Setting error: �15% FS �50 ms max.
- Reset time: 0.1 s max.
- Influence of voltage: �2% FS max.
- Influence of temperature: �2% FS max.
- Insulation resistance: 100 MO min. (at 500 VDC)
- Dielectric strength: 2000 VAC 50/60 Hz 1 min
- Impulse withstand voltage: 1 kV
- Noise immunity: �1.5 kV square-wave noise
- Static immunity: Malfunction: 4 kV, Destruction: 8 kV
- Vibration resistance: Destruction: 10 to 55 Hz, 0.75 mm single amplitude, Malfunction: 10 to 55 Hz, 0.5 mm single amplitude
- Shock resistance: Destruction: 980 m/s2, Malfunction: 100 m/s2
- Life expectancy (relay output): Electrical: 100,000 operations min., Mechanical: 10 million operations min.
- Degree of protection: IP40
- Connecting method: 5-pin round socket
- Weight: 0.015 kg
- Dimensions: 5.00 � 1.00 � 3.00 cm
