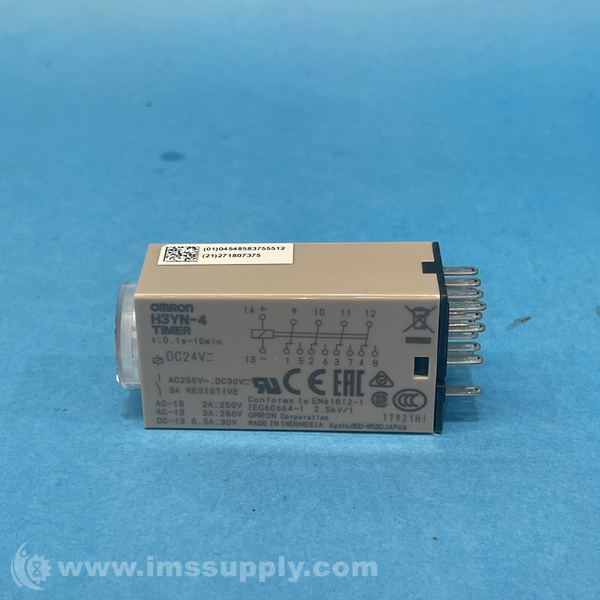

OMRON H3YN-4 SOLID STATE TIMER
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: H3YN-4
IMS Product Code: 1798858
Packaging: Sold Individually
Description:
Omron H3YN-4 Solid State Timer
Solid-state Timer H3YN Series
Specifications
- Electrical Connection Type: Pin
- Number of Pins: 14
- Number of Delay Functions: 4
- Delay Function: Flicker Off Start; Flicker On Start; Interval; On Delay
- Current Rating: 5 A
- Input Voltage: 24V DC
- Contact Form: 4PDT
- Contact Rating (DC): 1.00 mA @ 1V
- Contact Rating (AC): 3 A @ 250V (Resistive Load)
- Minimum Time Setting: 0.1 sec
- Maximum Time Setting: 1 sec
- Operating Time Accuracy: �1% �10 ms in a range of 1 s; �1% FS max
- Adjustment Interface: Analog
- Relay Operation: Solid State
- Body Height: 1.1 in
- Body Width: 0.84 in
- Body Depth: 2.22 in
- Electrical Operating Durability: 200,000
- Mechanical Operating Durability: 1,000,000
- Minimum Operating Temperature: 14 �F
- Maximum Operating Temperature: 50 �C
- IP Rating: IP40
- Standards: (EMI) EN 61812-1; (EMS) EN 61812-1; Conforms to EN 61812-1 and IEC 60664-1. (2.5 kV/2 for H3YN-2/-21, 2.5 kV/1 for H3YN- 4/-41, H3YN-4-Z/-41-Z); Emission AC Mains: EN 55011 Group 1 Class A; Emission Enclosure: EN 55011 Group 1 Class A; Immunity Burst: IEC 61000-4-4; Immunity Conducted Disturbance: IEC 61000-4-6; Immunity ESD: IEC 61000-4-2; Immunity RF-interference: IEC 61000-4-3; Immunity Surge: IEC 61000-4-5; Immunity Voltage Dip/Interruption: IEC 61000-4-11; UL 508, CSA C22.2 No. 14, Lloyd's, CCC: GB/T 14048.5
- Country of Origin: Indonesia (subject to change)
- Type: Timer Relay
- Voltage: 24vdc
- Coil Voltage: 24 vdc
- Amperage: 3A
- Weight: 1.00 LBS

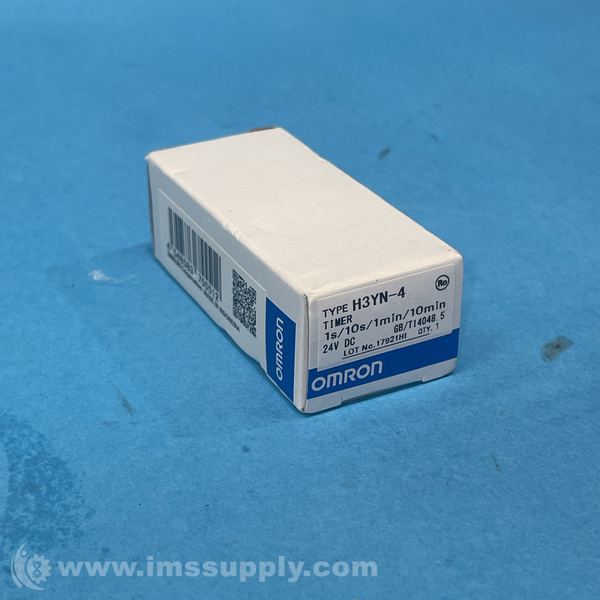

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 57 minutes.
