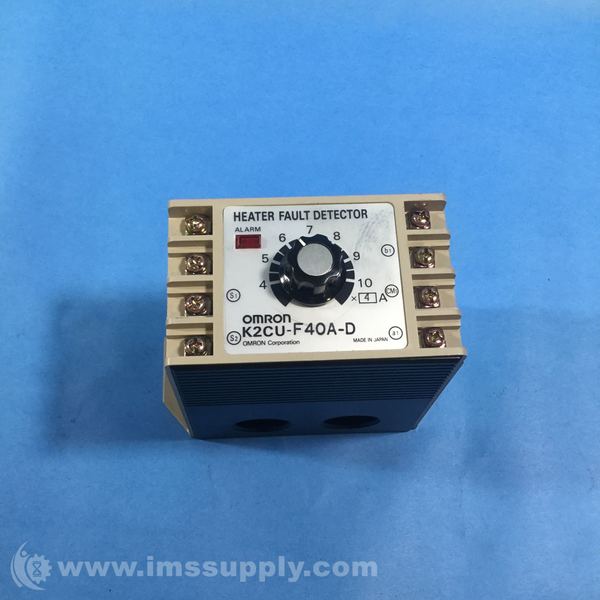

OMRON K2CU-F40A-D HEATER FAULT DETECTOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: K2CU-F40A-D
IMS Product Code: 1807878
Packaging: Sold Individually
Description:
Omron K2CU-F40A-D Heater Fault Detector
Heater fault detector operating at 110 VAC supply with current range 16A to 40A.
Specifications
- Operating Current Range: 16 to 40 A
- Control Supply Voltage: 110 VAC
- Operating Voltage Range: 85% to 110% of control supply voltage
- Power Consumption: Input: 0.5 VA max., Power Supply: 5 VA max.
- Gate Input Voltage Range: 5 to 30 VDC for models with gate input terminals
- Insulation Resistance: 10 M? min. at 500 VDC between electric circuits and the mounting panel
- Dielectric Strength: 2,000 VAC, 50/60 Hz for 1 min.
- Vibration Resistance: Designed to withstand vibrations up to 16.7 Hz, 1-mm double amplitude
- Shock Resistance: Resistant to shocks up to 100 m/sē
- Operating Conditions: -10 degrees C to 55 degrees C and humidity levels from 45% to 85%
- Maximum Amperage: 40 A
- Current Type: AC/DC

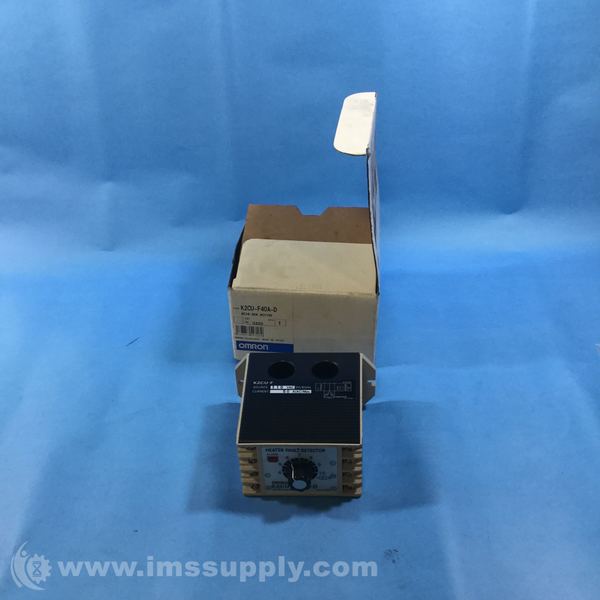

New - Open Box:
