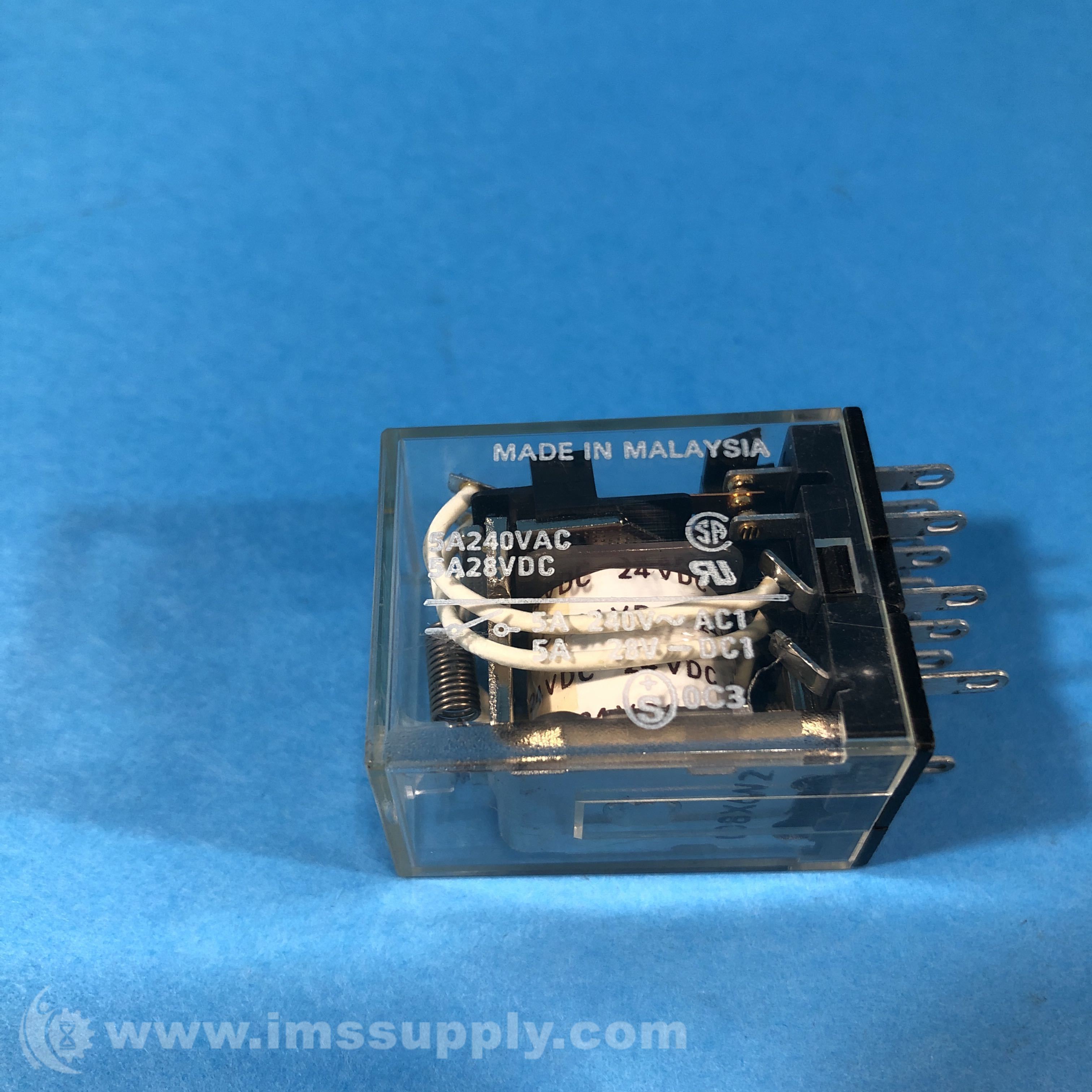

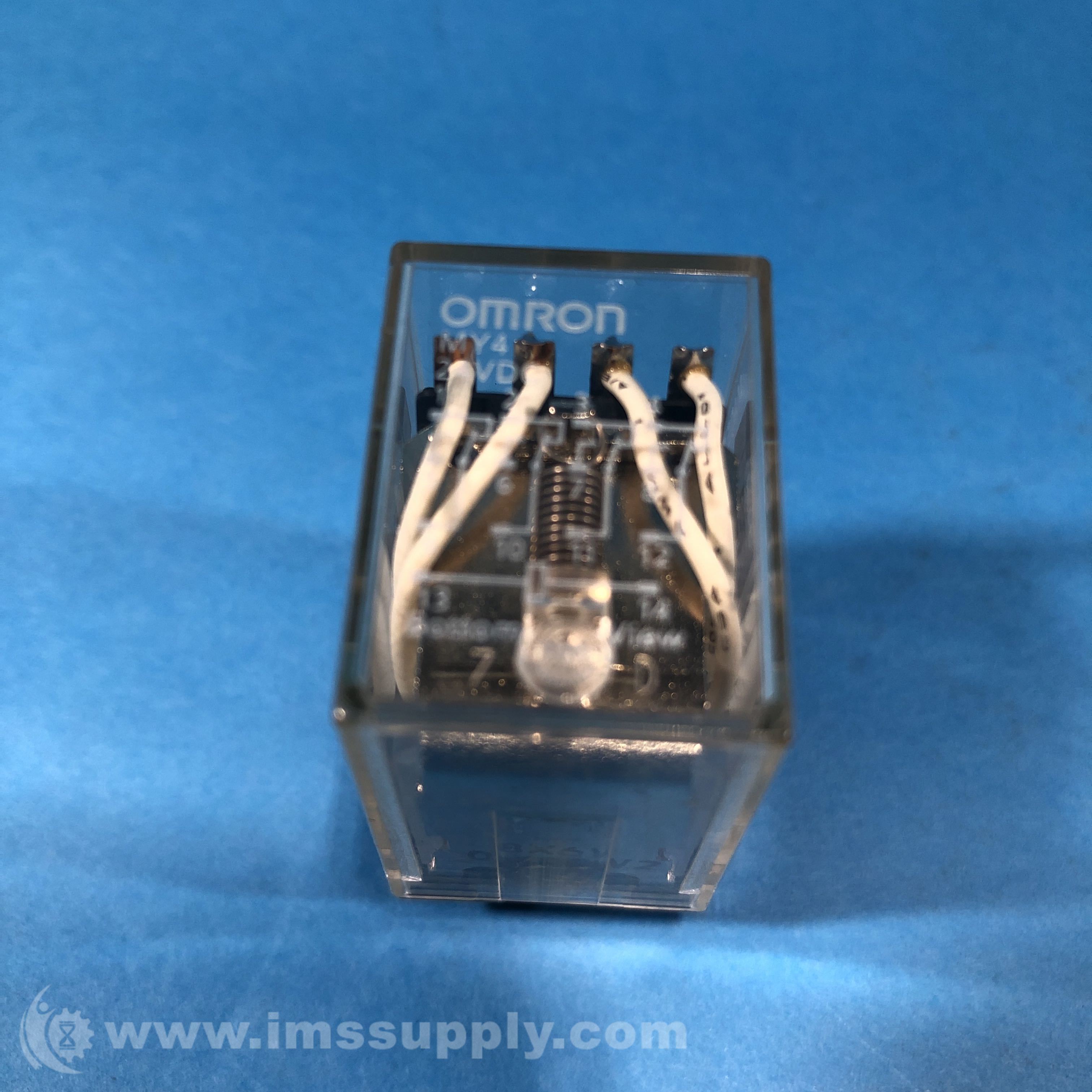

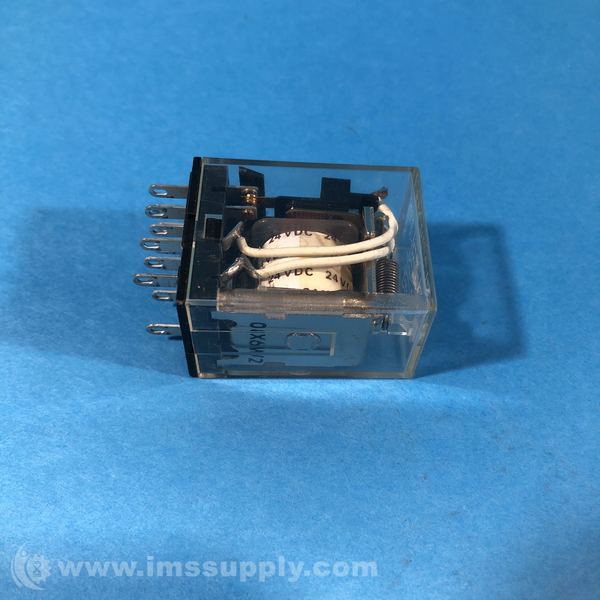

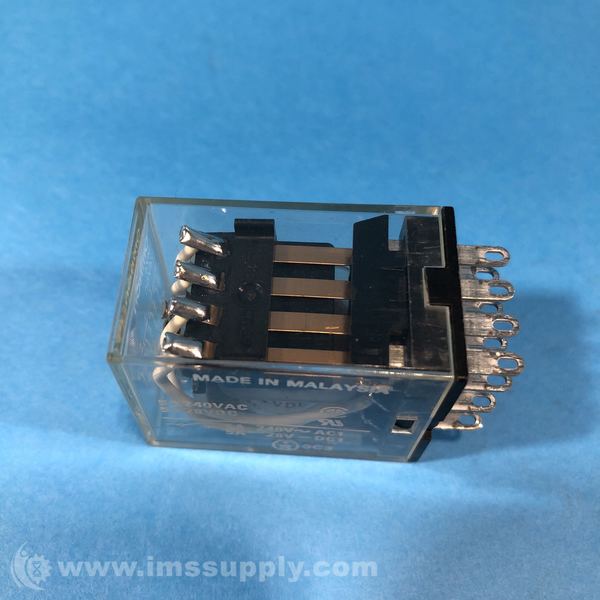

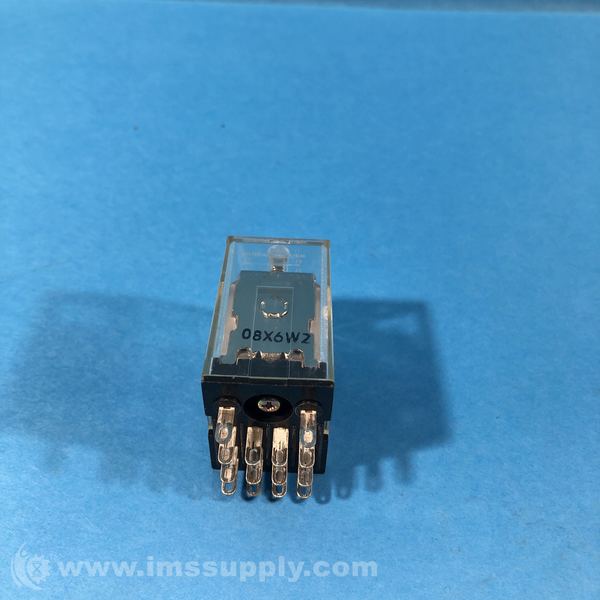

OMRON MY4-DC24 4PDT 24VDC RELAY
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: MY4-DC24
IMS Product Code: 987944
Packaging: Sold Individually
Description:
Omron MY4-DC24 4PDT 24VDC Relay
Miniature Power Relay, 4-pole, Single contact, Plug-in terminals, 24 VDC
Specifications
- Coil Ratings: 24 VDC 36.3 mA
- Coil Resistance: 662 O
- Operate Voltage: 80 % max.
- Release Voltage: 10 % min.
- Maximum Voltage: 110 % (23 ?)
- Power Consumption: Approx. 0.9 W
- Contact Rated Load: 220 VAC 3 A (Resistive load)220 VAC 0.8 A (Inductive load (cosf = 0.4))24 VDC 3 A (Resistive load)24 VDC 1.5 A (Inductive load (L/R = 7 ms))
- Max. Contact Voltage: 250 VAC125 VDC
- Max. Contact Current: AC: 3 ADC: 3 A
- Maximum Switching Power: 660 VA (Resistive load)176 VA (Inductive load (cosf = 0.4))72 W (Resistive load)36 W (Inductive load (L/R = 7 ms))
- Contact Form: 4PDT
- Contact Method: Single
- Contact Material: Au clad + Ag alloy
- Contact Resistance: 50 mO max. (Voltage drop method with 5 VDC 1 A)
- Operating Time: 20 ms max. (With rated operating power applied, not including contact bounce)
- Reset Time: 20 ms max. (With rated operating power applied, not including contact bounce)
- Maximum Operating Frequency: Mechanical: 18000 time/hourRated load: 1800 time/hour
- Insulation Resistance: Between coil and contacts: 100 MO min. (at 500 VDC)Between contacts of different polarity: 100 MO min. (at 500 VDC)Between contacts of same polarity: 100 MO min. (at 500 VDC)
- Dielectric Strength: Between coil and contacts: 2000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2000 VAC 50/60 Hz 1 minBetween contacts of same polarity: 1000 VAC 50/60 Hz 1 min
- Vibration Resistance (Destruction): 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
- Vibration Resistance (Malfunction): 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
- Shock Resistance (Destruction): 1000 m/s2
- Shock Resistance (Malfunction): 200 m/s2
- Endurance (Mechanical): 100 million operations min. (switching frequency 18,000 operations/h)
- Endurance (Electrical): 200,000 operations min. (23 ?, Rated load, switching frequency 1,800 operations/h)
- Failure Rate: 1 VDC 1 mA (failure level: Preference value, Switching frequency: 120 operations per minute)
- Ambient Temperature (Operating): -55 to 70 ? (with no freezing or condensation)
- Ambient Humidity (Operating): 5 to 85 %
- Weight: Approx. 35 g
- Mounting Method: Socket
- Applicable Socket: PYF14S/ PYF14T/ PYF-14-PU/ PYF-14-PU-L/ PYFZ-14/ PYFZ-14-E/ PY14/ PY14-Y1/ PY14QN/ PY14QN2/ PY14QN-Y1/ PY14QN2-Y1/ PY14-02
- Degree of Protection: Closed type (cover)
- Terminal Structure: Plug-in terminal
- Size: 28mm×21.5mm×36mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
