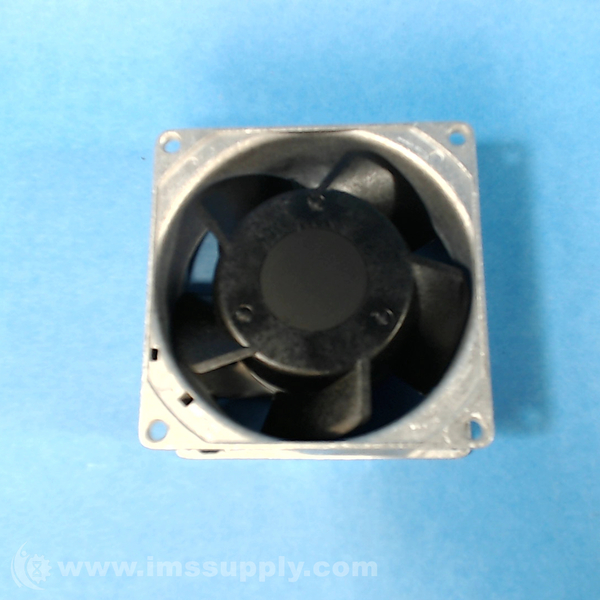

OMRON R87F-A1A85HP AC AXIAL FANS WITH TERMINALS (80X80XT38 MM)
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: R87F-A1A85HP
IMS Product Code: 1732692
Packaging: Sold Individually
Description:
Omron R87F-A1A85HP AC Axial Fans with Terminals (80 x 80 x t38 mm)
Specifications:
- 100V
- 50/60Hz
- Motor type: Single-phase shading coil induction motor (2-pole, open type)
- Terminal type: Terminals
- Insulation class: IEC class B (130°C) UL class A (105°C) CSA class A (105C)
- Insulation resistance: 100 MΩ min. (at 500 VDC) between all power supply connections and
- uncharged metal parts.
- Insulation withstand voltage: 2,000 VAC (1 minute) between all power supply connections and uncharged metal parts.
- Ambient operating temperature: −30 to 70°C (no icing)
- Ambient storage temperature: −40 to 85°C (no icing)
- Ambient humidity: 25% to 85%
- Protection: Impedance protection
- Materials: Frame:
- Die-cast aluminum,
- Blades: Glass polycarbonate
- Bearings: Ball bearings
- Weight: Approx. 280 g
