OMRON SHL-Q2255-MR ENCLOSED SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: SHL-Q2255-MR
IMS Product Code: 1812944
Packaging: Sold Individually
Description:

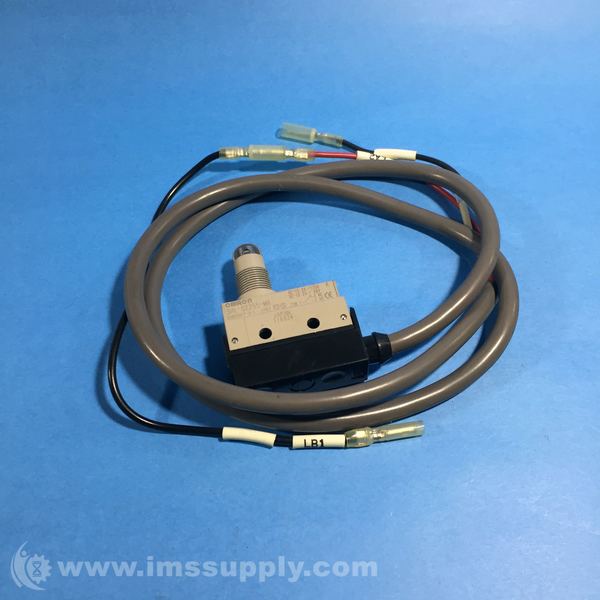

Omron SHL-Q2255-MR Enclosed Switch
Enclosed switch with panel mount roller plunger and right-hand cable output direction.
Specifications
- Shape/Structure: Enclosed Limit switches
- Actuator: Panel mount roller plunger 11 dia. x 4.7 Stainless sintered alloy roller
- Contact form: SPDT
- Ratings (AC): Non-Inductive load: 10 A at 125 VAC/10 A at 250 VAC/2 A at 480 VAC, Lamp load: 1.5 A at 125 VAC/1.5 A at 250 VAC, Inductive load: 3 A at 125 VAC/2 A at 250 VAC, Motor load: 2.5 A at 125 VAC/1.5 A at 250 VAC
- Ratings (DC): Non-Inductive load: 10 A at 8 VDC/10 A at 14 VDC/5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC, Lamp load: 2 A at 8 VDC/2 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC, Inductive load: 5 A at 8 VDC/5 A at 14 VDC/1.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC, Motor load: 2 A at 8 VDC/2 A at 14 VDC/1.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
- Cable specifications: VCTF, 3 cores, 3 m, Nominal sectional area: 0.75 mm2, Diameter: 7 dia., Location of lead output: Right-hand
- Ambient temperature: Operating: -10 to 80 degrees C (with no icing)
- Ambient humidity: 35 to 95 %
- Degree of protection: IP67
- Classification of protection against electric shock: Class II (Grounding not required with double) insulation
- Operating Force (OF): 9.81 N max.
- Release Force (RF): 1.96 N min.
- Pre-Travel (PT): 1.5 mm max.
- Movement Differential (MD): 0.5 mm max.
- Over-Travel (OT): 2 mm min.
- Operating Position (OP): 43±0.8 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
