OMRON TL-N5ME1 RECTANGULAR PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: TL-N5ME1
IMS Product Code: 1787547
Packaging: Sold Individually
Description:

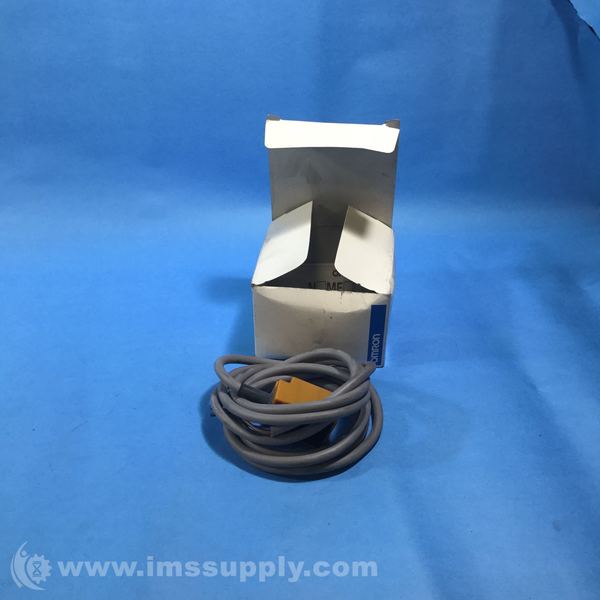

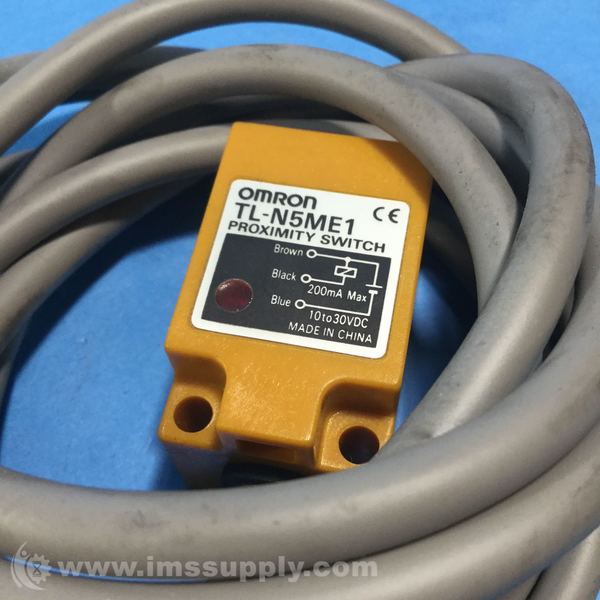

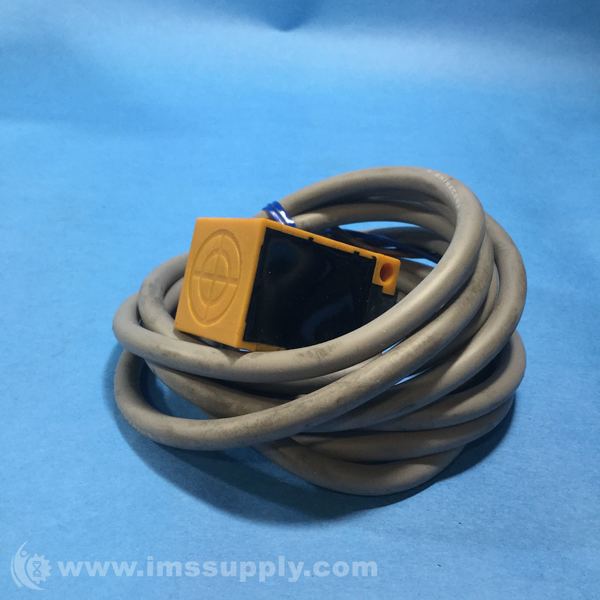

Omron TL-N5ME1 Rectangular Proximity Sensor
Rectangular Standard Proximity Sensor, Sensing distance: 5 mm, Unshielded, DC 3-wire, NPN, NO, Cable length 5 m
Specifications
- Sensing head size: 25 mm x 25.5 mm x 38.5 mm
- Type: Square type, Unshielded
- Power source: DC Three-wires models
- Sensing distance: 5 mm ±10%
- Setting distance: 0 to 4 mm
- Differential distance: 15% max. of sensing distance
- Sensing object: Ferrous metal (Sensitivity lowers with non-ferrous metals.)
- Standard sensing object: Iron 30 x 30 x 1 mm
- Response frequency: 500 Hz (Average value)
- Power supply voltage: 12 to 24 VDC ripple (p-p) 10% max.
- Operating voltage range: 10 to 30 VDC
- Current consumption: at 12 VDC: 8 mA max.at 24 VDC: 15 mA max.
- Control output (Output type): NPN
- Control output (Switching capacity): at 12 VDC: 100 mA max.at 24 VDC: 200 mA max.
- Control output (Residual voltage): 1 V max. (at 200 mA load current)
- Indicator: Detection indicator (red)
- Operation mode: NO
- Protective circuit: Reverse polarity protectionSurge suppressor
- Ambient temperature (Operating): -25 to 70 ?
- Ambient temperature (Storage): -25 to 70 ?
- Ambient humidity (Operating): 35 to 95 %
- Ambient humidity (Storage): 35 to 95 %
- Temperature influence: ±10% max. of sensing distance at 23 ? in the temperature range of -25 to 70 ?
- Voltage influence: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
- Insulation resistance: Between charged parts and the case: 50 MO min. at 500 VDC
- Dielectric strength: Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
- Shock resistance: Destruction: 500 m/s2 10 times each in X, Y, and Z directions
- Degree of protection: IEC: IP67Company standard: Oil-proof
- Connection method: Pre-wired models (5 m)
- Material: Case: Heat-resistant ABS resinSensing surface: Heat-resistant ABS resin
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
