OMRON XG4 FLAT CABLE CONNECTORS
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: XG4
IMS Product Code: 1973535
Packaging: Sold Individually
Description:

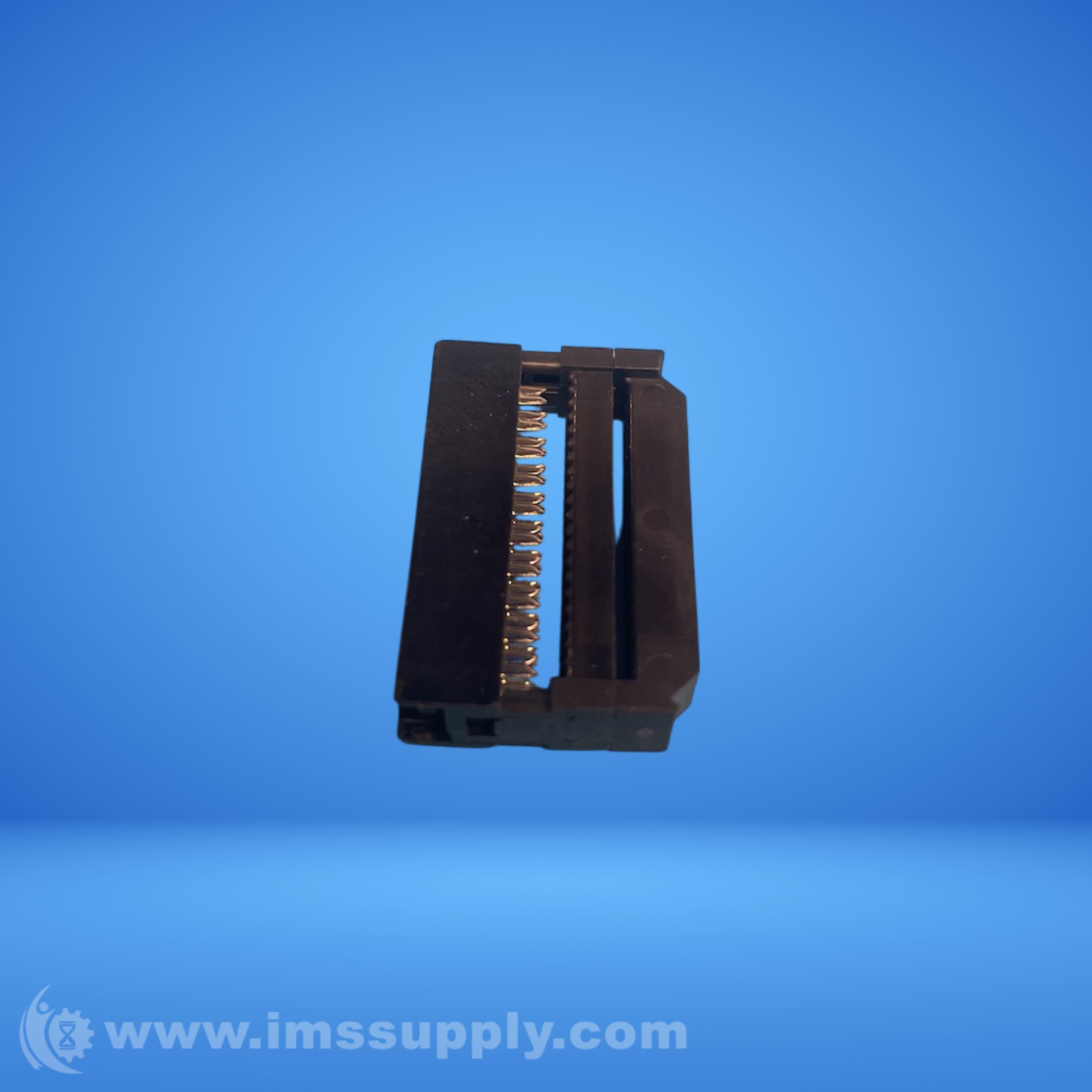

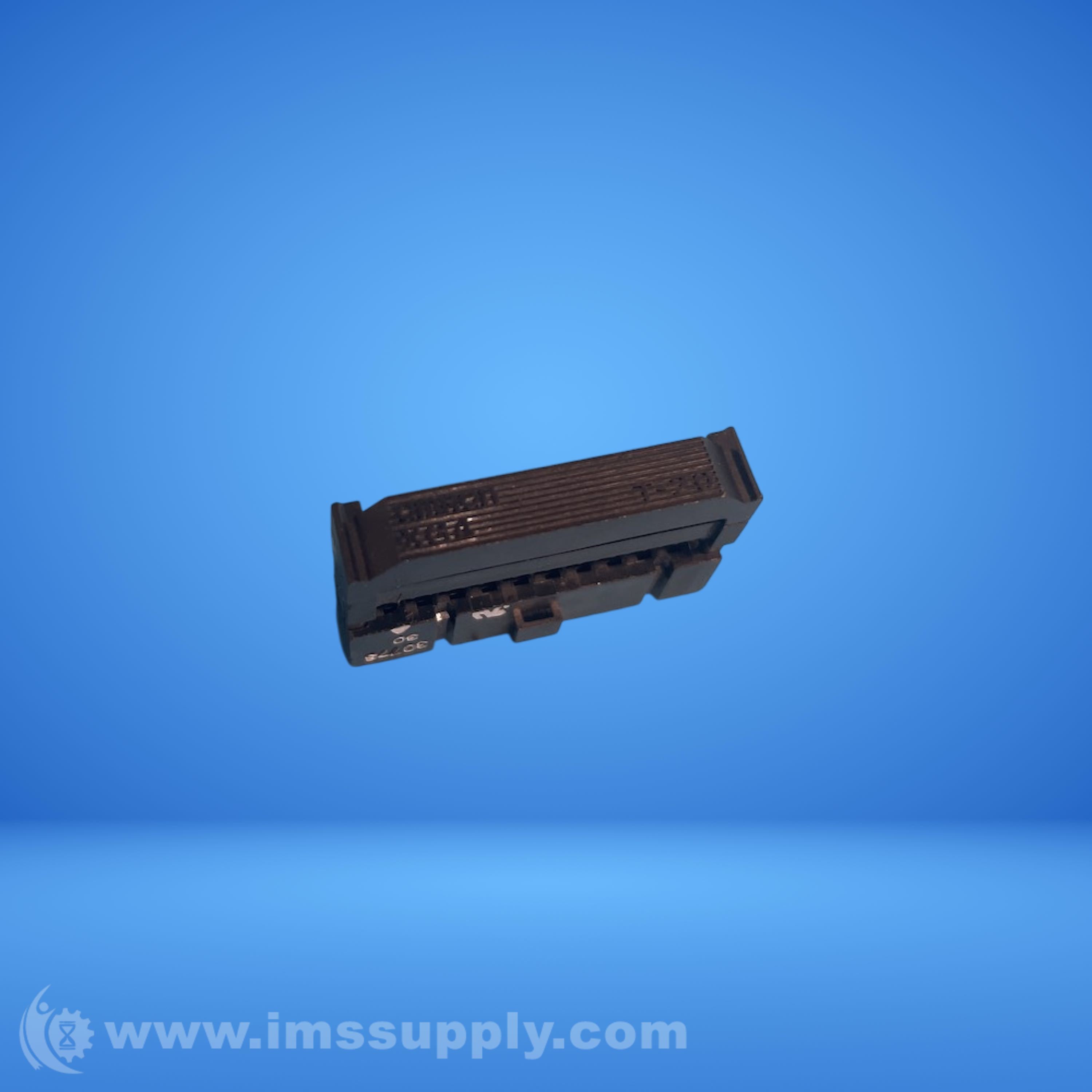

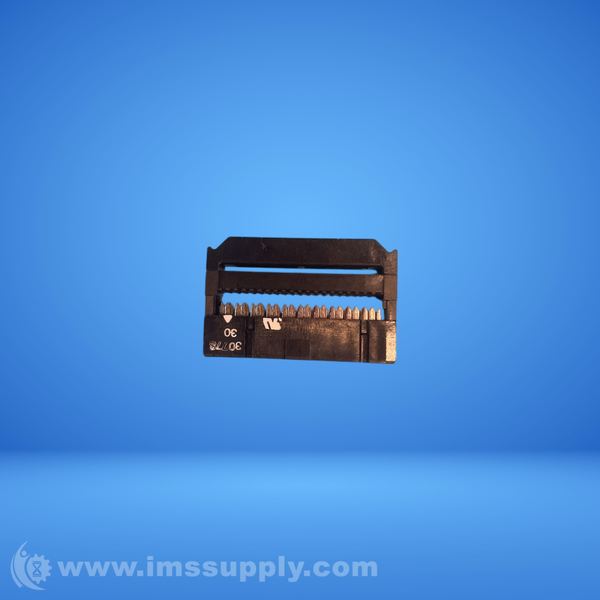

Omron XG4 Flat Cable Connectors
Flat Cable Connectors conforming to MIL Standards
Specifications
- Maximum Contact Resistance: 20mO
- Minimum Insulation Resistance: 1000MO
- Dielectric Strength: 500VAC
- Connector Insertion Force: 1.96N
- Contact Removal Force: 0.39N
- Insertion Durability: 50 times
- Ambient Temperature Range: -55°C to +105°C
- Lock Width: 8mm
- Assembly: temporarily assembled
- Applicable Wires: For pressing 1.27-mm pitch flat cable incorporating AWG28 wires
- Mating Combinations: XG4M, XG4E, XG4C, XG4A
- Standards: MIL-C-83503, UL (file No. E103202)
- Rated Current: 1 A (using XG4M)
- Number of Positions: varies
- Number of Rows: 2
- Termination Style: Solder Pin/IDC
- Mounting Style: Through Hole/Cable Mount
- Contact Gender: Pin (Male)/Socket (Female)
- Mounting Angle: Straight/Right Angle
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
