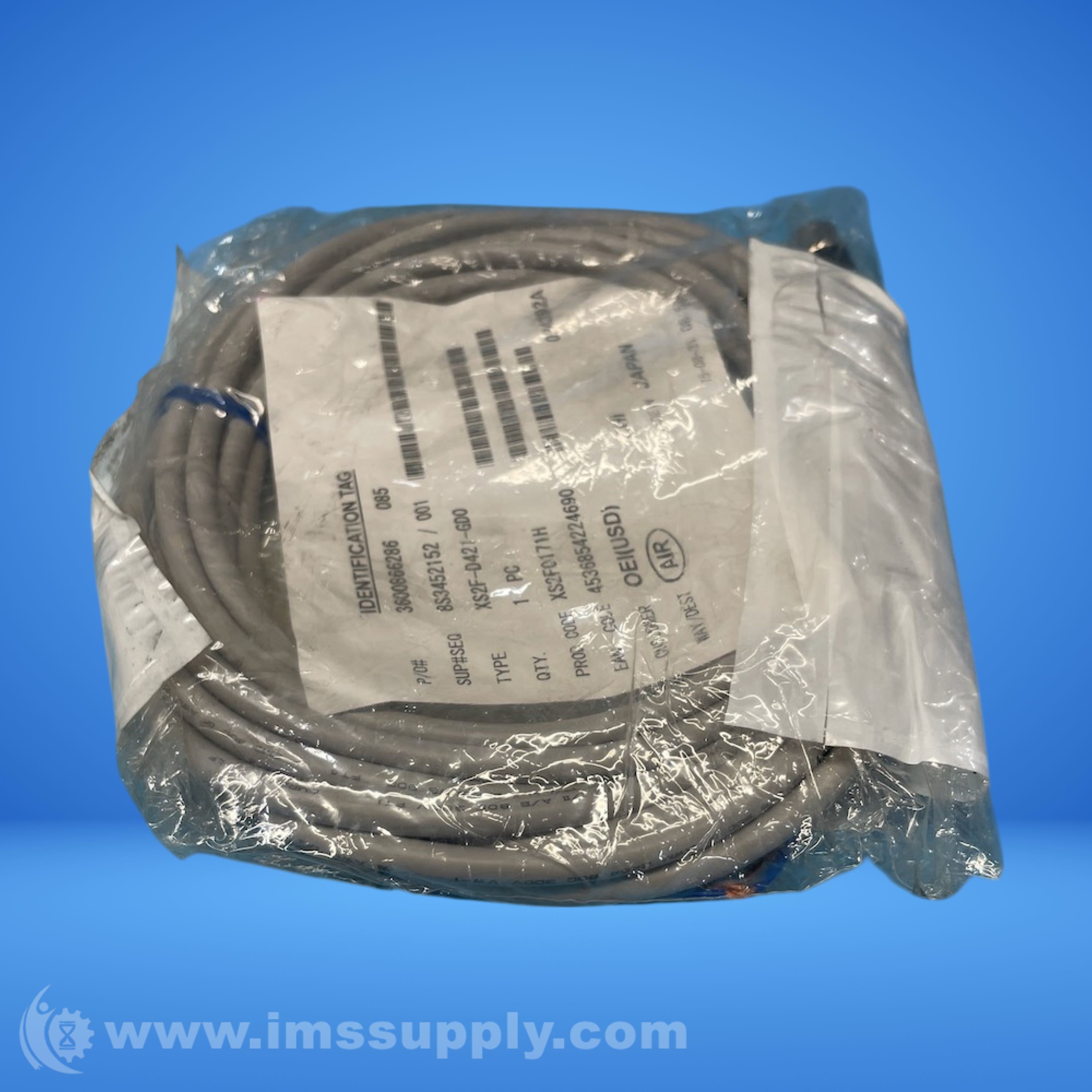

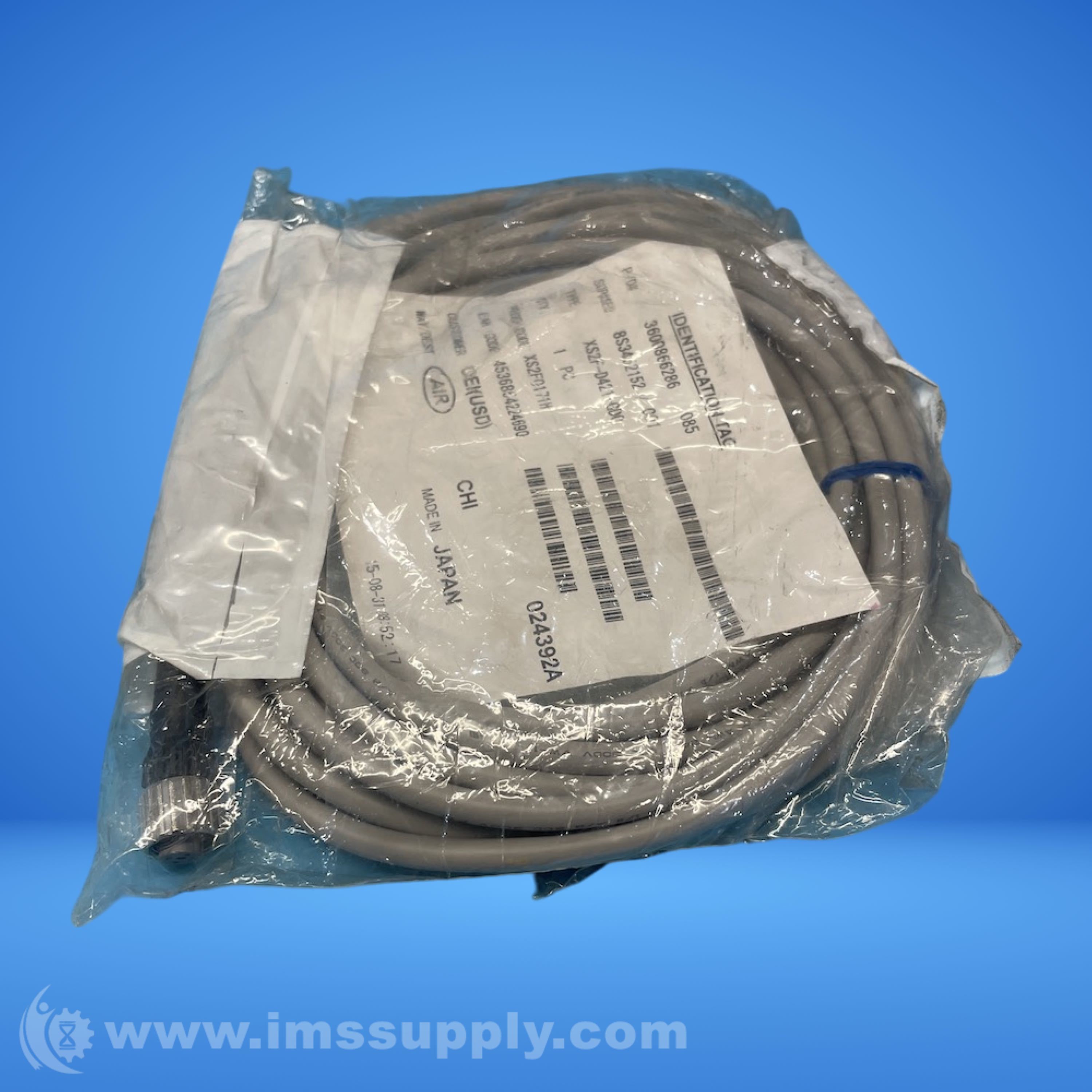

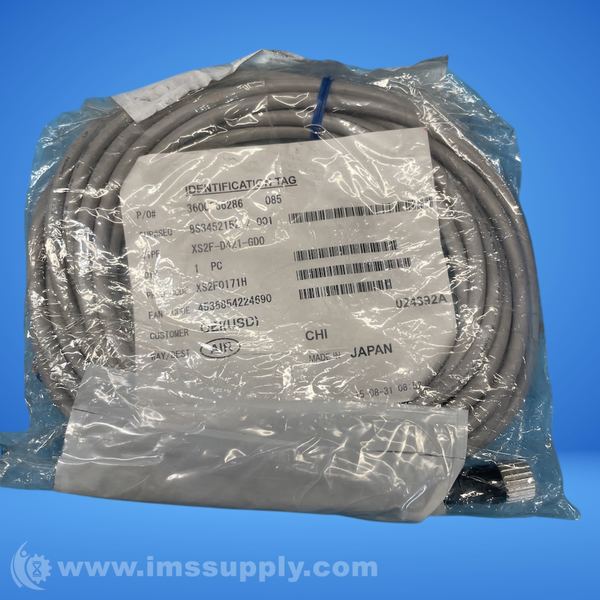

OMRON XS2F-D421-GD0 M12 CONNECTOR CABLE
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: XS2F-D421-GD0
IMS Product Code: 2128025
Packaging: Sold Individually
Description:
Omron XS2F-D421-GD0 M12 Connector Cable
M12 connector cable with 4 poles, gold plating, straight output, 5m length, IP67 protection
Specifications
- Type: Water-resistant Connectors
- Application: for DC
- Number of poles: 4 pole
- Plug/socket: Socket
- Location of lead output: Straight
- Fastening method: M12 Threads
- Rated voltage: 250 VDC
- Rated current: 4 A
- Contact resistance: 40 mO max. (20 mV max, 100 mA max.)
- Cable specifications: Fireretardant, PVC robot cable
- Outer diameter: 6 mm dia.
- Number of wires: 2 cores
- Cable length: 5 m
- Ambient temperature range (Operating): 0 to 70 ?
- Ambient humidity range (Operating): 20 to 85 %
- Insulation resistance: 1000 MO min. (at 500 VDC)
- Dielectric strength: 1,500 VAC 1 min (Leakage current 1mA max.)
- Degree of protection: IP67
- Material: Pin block: PBT resin Cover: PBT resin Contact: Copper alloy (gold plating) Fixture: Copper alloy (Nickel platin) O-ring: Rubber parts
- Insertion durability: 200 time
- Series: XS2
- 1st Connector Type: Plug
- 1st Connector Gender: Female Sockets
- 1st Connector Number of Positions: 4
- 1st Connector Number of Positions Loaded: 2
- 1st Connector Shell Size - Insert: M12
- 1st Connector Orientation: Keyed
- 1st Connector Mounting Type: Free Hanging (In-Line)
- 2nd Connector Type: Wire Leads
- Length: 16.40' (5.00m)
- Assembly Configuration: Standard
- Cable Type: Round
- Color: Gray
- Shielding: Unshielded
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Usage: Industrial Environments
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
