OMRON Z-15GD-B7-K SNAP ACTION SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: Z-15GD-B7-K
IMS Product Code: 988267
Packaging: Sold Individually
Description:

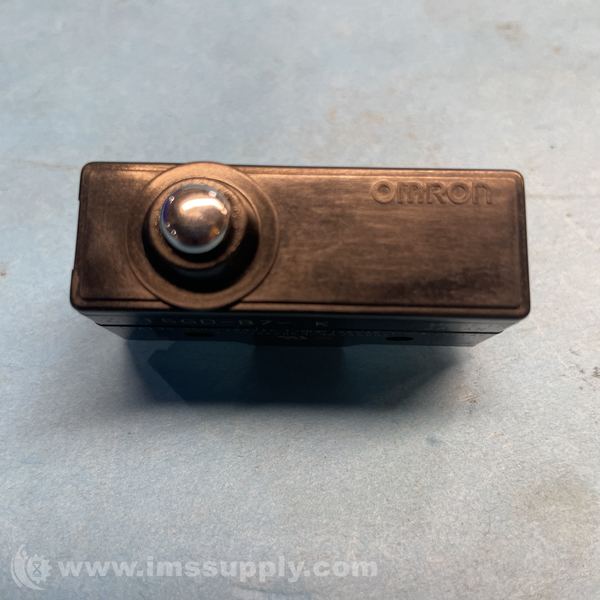

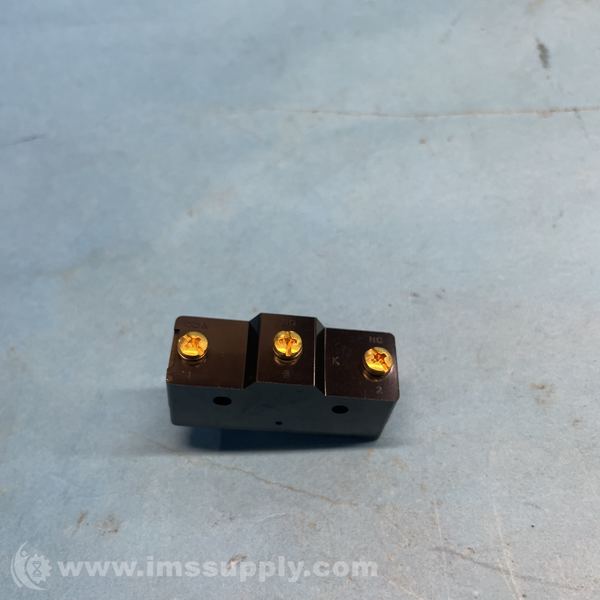

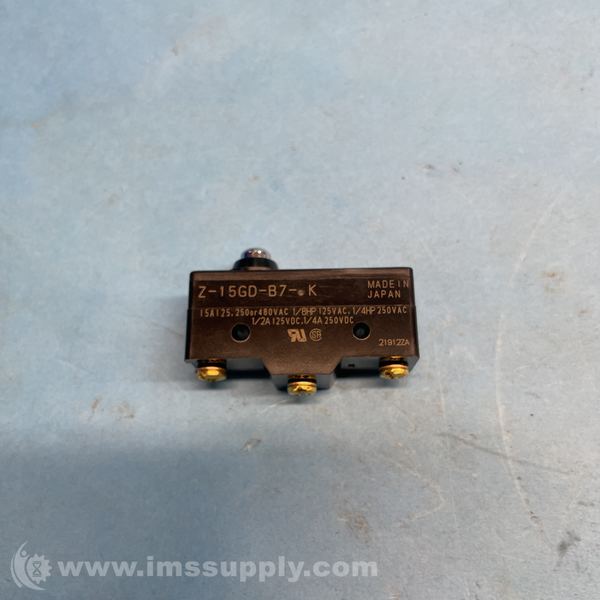

Omron Z-15GD-B7-K Snap Action Switch
Snap action switch with plunger actuator, SPDT contact configuration, screw terminals, 15A current rating.
Specifications
- Series: Z
- Actuator Style: Plunger
- Contact Form: 1NO/1NC
- Electrical Connection: Screw
- Body Material: Phenolic
- Operating Temperature - Minimum: -13 degrees F
- Operating Temperature - Maximum: 176 degrees F
- Mounting Hole Diameter: 3/16 in
- Center Mounting Hole Distance: 1 in
- AC Contact Rating: 15 A @ 250 V
- DC Contact Rating: 15 A @ 14 V
- Pre-Travel: 0.016 in
- Over Travel: 0.063 in
- Differential Travel - Maximum: 0.002 in
- Operating Force - Minimum: 2.45 N
- Operating Force - Maximum: 3.43 N
- Release Force: 4.03 ozf
- Standards: CSA; UL Listed
- Country of Origin: Japan
- Compatible Wire Gauge (AWG): 1-5
- Mechanical Life: 20 Mcycles
- Electrical Life: 500 kcycles
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
