OMRON Z-15GQA55-B5V BASIC SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: Z-15GQA55-B5V
IMS Product Code: 2138946
Packaging: Sold Individually
Description:

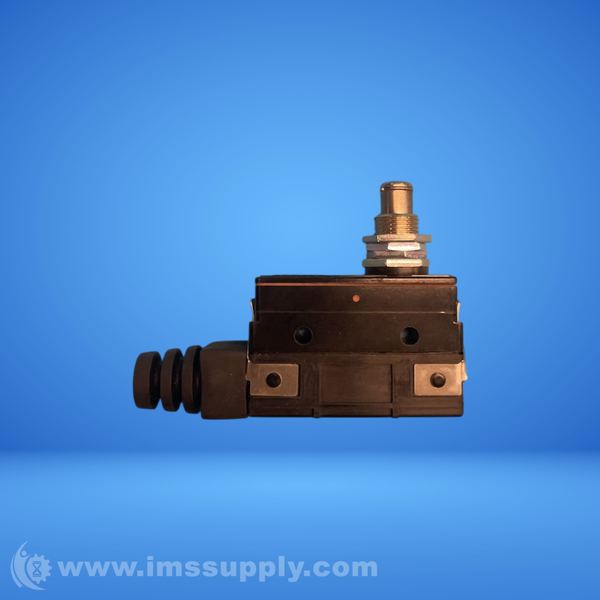

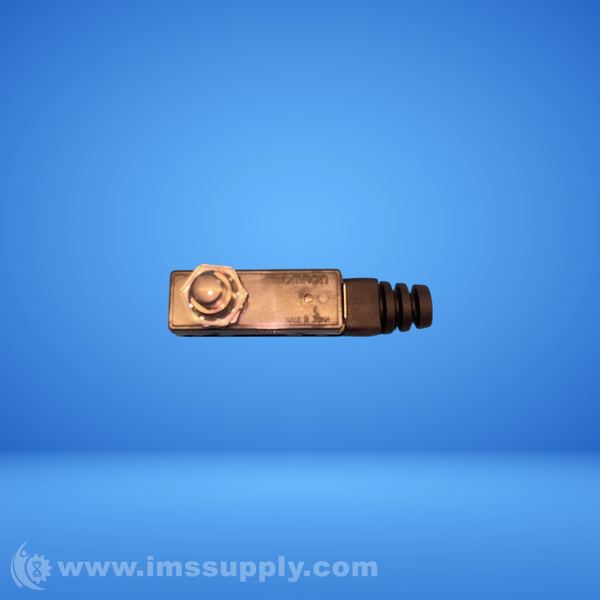

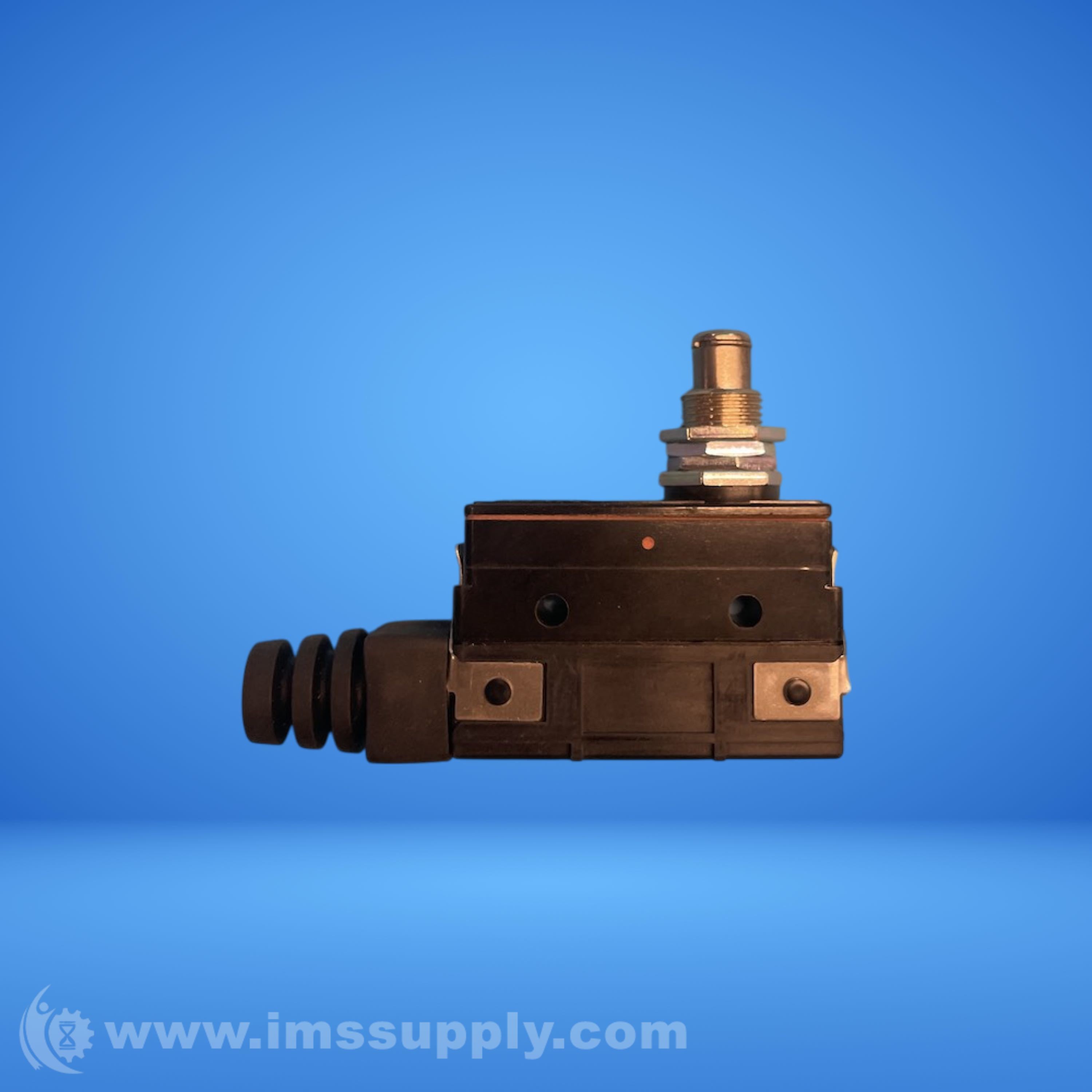

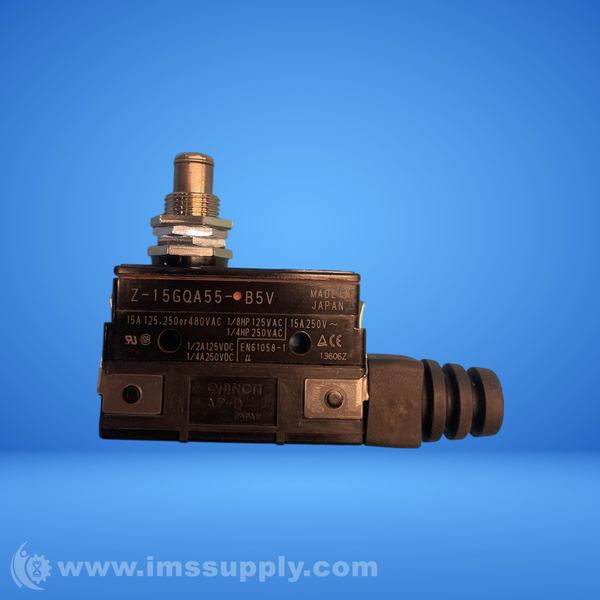

Omron Z-15GQA55-B5V Basic Switch
General-purpose Basic Switch with panel mount plunger, rated current 15 A, SPDT contact form, screw terminal with protective cover.
Specifications
- actuator: Panel mount plunger 8.35 dia.
- contact form: SPDT
- terminal: Screw terminal with terminal protective cover
- rated current: 15 A
- degree of protection: Equivalent to IP62 (excluding the terminals on terminal models)
- contact gap (standard value): 0.5 mm
- load: General load
- ratings (ac): Non-Inductive load: 15 A at 125 VAC, 15 A at 250 VAC, 10 A at 500 VAC
- ratings (dc): Non-Inductive load: 15 A at 8 VDC, 15 A at 14 VDC, 6 A at 30 VDC, 0.5 A at 125 VDC, 0.25 A at 250 VDC
- inrush current: NC: 30 A max., NO: 15 A max.
- ambient temperature: -15 to 80 ?
- ambient humidity: 35 to 95 %
- speed of permissible operation: 0.01 mm/s to 1 m/s
- permissible operating frequency: Electrical: 20 operations / 1 minute max., Mechanical: 240 operations / 1 minute max.
- contact resistance (initial value): 15 mO max.
- insulation resistance: 100 MO min. (at 500 VDC)
- dielectric strength: Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min, Between live-metallic part and ground: 2,000 VAC 50/60 Hz 1 min, Between each terminal and non-live-metallic part: 2,000 VAC 50/60 Hz 1 min
- durability: Electrical: 500,000 operations min., Mechanical: 10 million operations min.
- degree of protection against electric shock: Class I
- proof tracking index(pti): 175
- malfunction: 10 to 55 Hz, 1.5 mm double amplitude (Malfunction: 1 ms max.)
- destruction: 1000 m/s2
- operating force (of): Standard value 5.3 N max.
- release force (rf): Standard value 1.12 N min.
- pre-travel (pt): Standard value 1.8 mm max.
- over-travel (ot): Standard value 5.5 mm min.
- movement differential (md): Standard value 0.06 mm max.
- operating position (op): Standard value 21 to 22.6 mm
- mechanical life: 10 Mcycles
- mount: Panel
- contact current rating: 15 A
- contact voltage rating (ac): 250 V
- electrical life: 500 kcycles
- max current rating: 15 A
- max operating temperature: 80 °C
- min operating temperature: -15 °C
- operating force: 5.3 N
- overtravel: 5.5118 mm
- pretravel: 1.8 mm
- sealable: IP62
- switch function: On-Mom
- termination: Screw
- throw configuration: SPDT
- voltage rating (ac): 125 V
- voltage rating (dc): 30 V
- height: 25.5 mm
- length: 49.2 mm
- country/region of manufacture: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
