OMRON Z-15GW-B SNAP ACTION SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: Z-15GW-B
IMS Product Code: 988291
Packaging: Sold Individually
Description:

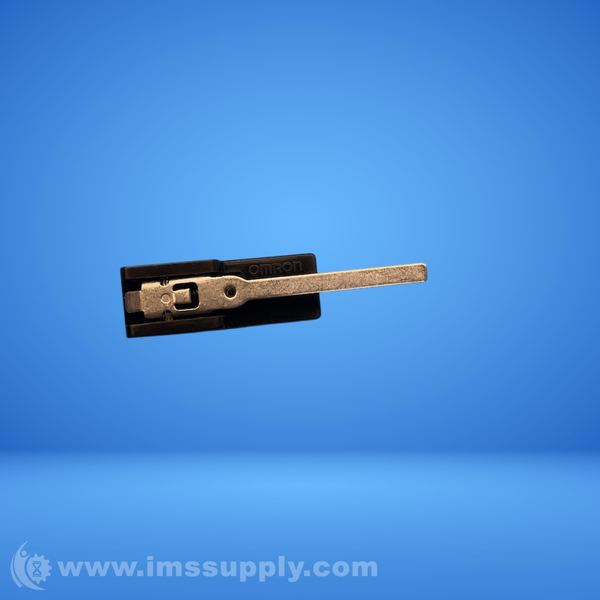

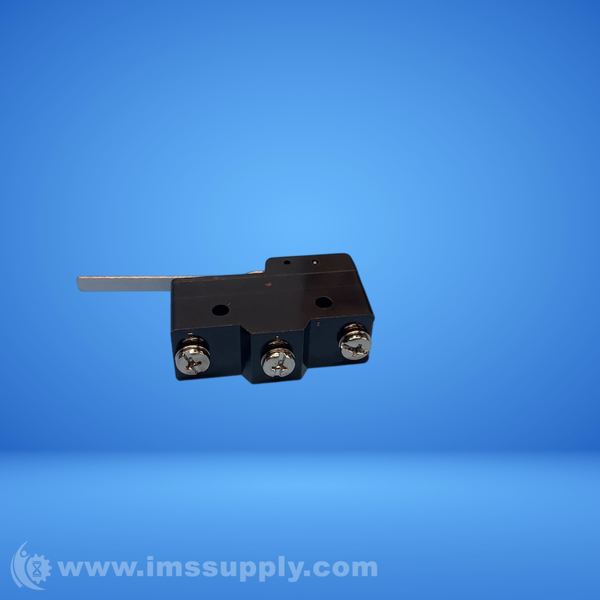

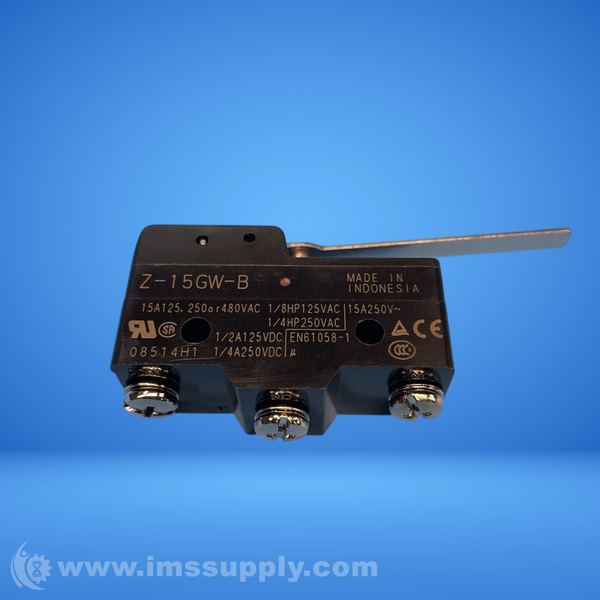

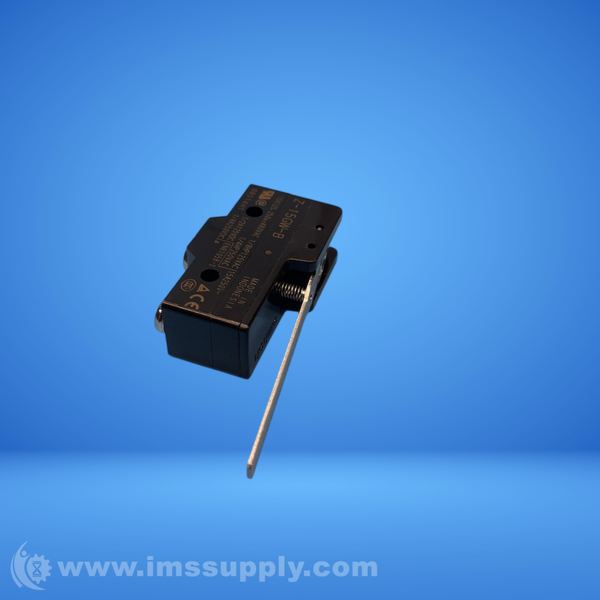

Omron Z-15GW-B Snap Action Switch
Snap action switch with hinge lever actuator, SPDT contact configuration, screw terminals, rated for 15A at 250V AC/DC.
Specifications
- Microswitch Type: Snap Action
- Contact Configuration: SPDT
- Contact Current Max: 15A
- Product Range: Z Series
- Operating Force Max: 70gf
- Microswitch Actuator: Hinge Lever
- Switch Terminals: Screw
- Contact Voltage AC Nom: 250V
- Electrical Operations Minimum: 500,000 Operations
- Mechanical Operations Minimums: 20,000,000 Operations
- Mounting Type: Chassis 4.2mm Hole
- IP Rating: IP00
- Type: General-Purpose Basic
- Height (mm): 29mm
- Width (mm): 50mm
- Depth (Length) (mm): 18mm
- Contact Resistance: 100mO Max
- Insulation Resistance: 100MO Min
- Dielectric Strength: 1,000VAC
- Operating Life: 500,000 cycles
- Switching method: ON-(ON)
- Number of positions: 2
- Manufacturer series: Z-15
- Stable positions number: 1
- Lever length: 63.5mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
