OMRON ZX-LT010 LASER DISPLACEMENT SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: ZX-LT010
IMS Product Code: 1904131
Packaging: Sold Individually
Description:
Omron ZX-LT010 Laser Displacement Sensor
Smart Sensor Laser Displacement Sensor
Specifications
- Measuring Range: 0 to 10 mm
- Resolution: 0.01% F.S.
- Linearity: ±0.01% F.S.
- Temperature Characteristic: 0.1% F.S./degrees C
- Operating Temperature Range: 0 to 50 degrees C
- Storage Temperature Range: -20 to 70 degrees C
- Operating Humidity: 35 to 85% RH
- Storage Humidity: 35 to 85% RH
- Insulation Resistance: 20 MO min. at 500 VDC
- Dielectric Strength: 1,000 VAC, 50/60 Hz for 1 min
- Vibration Resistance: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
- Shock Resistance: 500 m/s² 3 times each in X, Y, and Z directions
- Protective Structure: IP40
- Power Supply Voltage: 12 to 24 VDC ±10% ripple (p-p) 10% max.
- Current Consumption: 140 mA max. (with Sensor Head)
- Measuring Period: 1 ms
- Response Time: 1 ms (average 1, 4, or 8 times), 2 ms (average 16 or 32 times), 4 ms (average 64 times)
- Output: NPN open-collector output, 30 VDC, 50 mA max.
- Ambient Illumination: Incandescent lamp: 3,000 lux max., Sunlight: 10,000 lux max.
- Materials: Case: PBT (polybutylene terephthalate); Cover: Polycarbonate
- Cable Length: 2 m (can be extended up to 8 m max.)
- Weight: Approx. 120 g (with 2-m cable)
- Series: ZX
- Sensing distance: 500 mm
- Beam width: 10 mm
- Minimum detection object: 100 µm
- Resolution: 4 µm
- Emission source: visible light semiconductor laser
- Wavelength: 650 nm
- Housing material: polyetherimide
Used (Special):

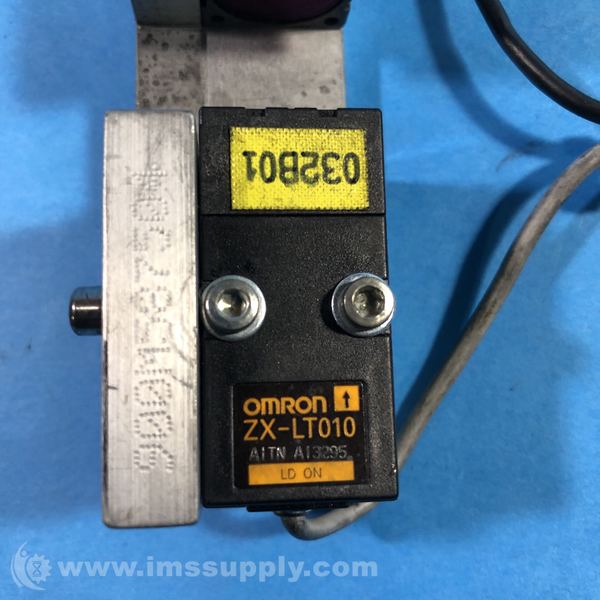

Attached to mounting bracket assembly.
Availability: 1 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):

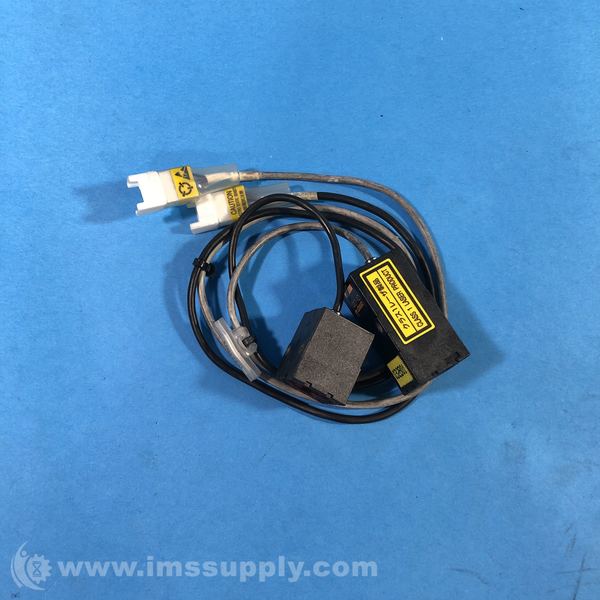

Caution tabs on bottom
Availability: 5 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
