ONO SOKKI FV-1100 F/V CONVERTER
Quick Overview
Manufactured By: ONO SOKKI
Manufacturer Part Number: FV-1100
IMS Product Code: 2153755
Packaging: Sold Individually
Description:

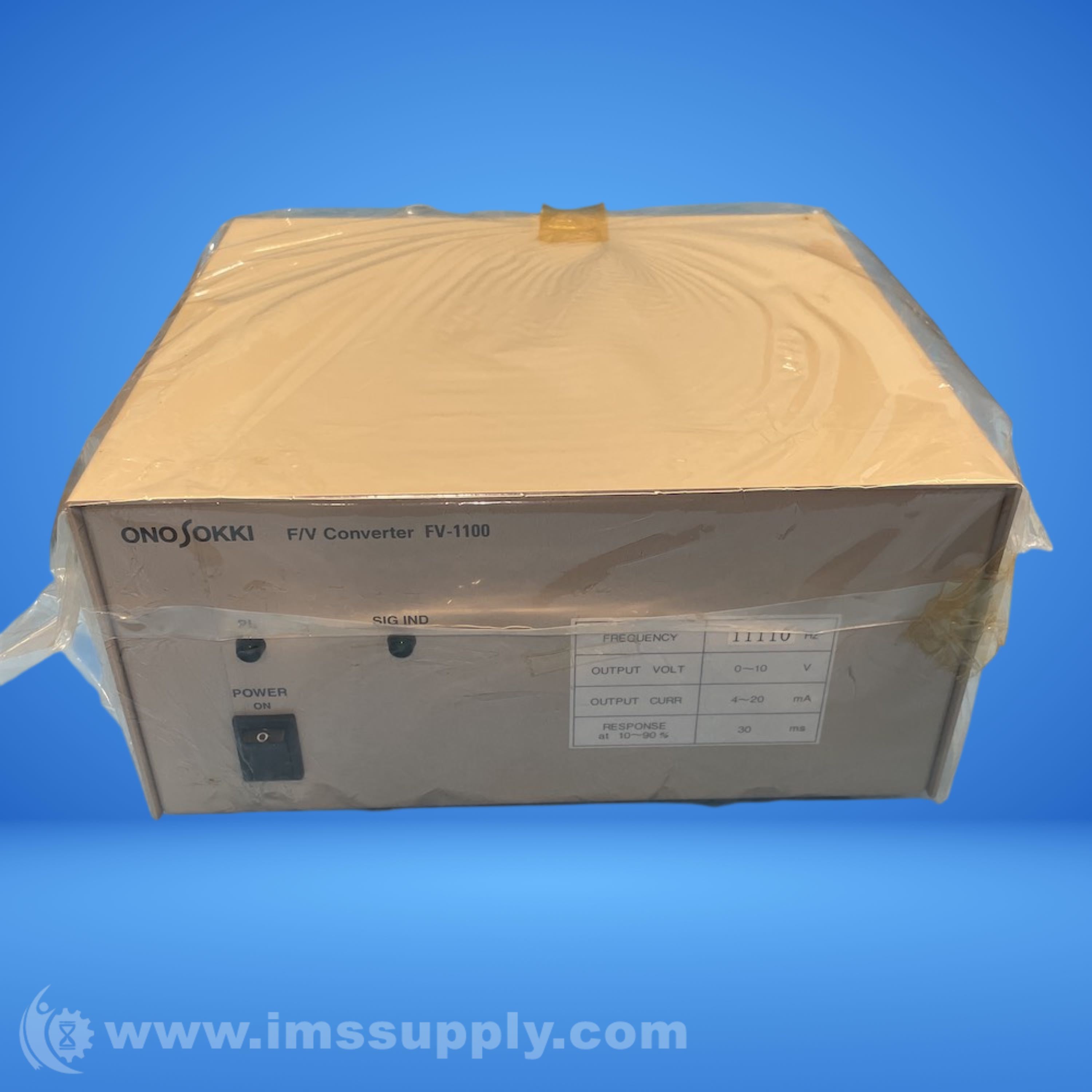

Ono Sokki FV-1100 F/V Converter
F/V Converter with constant width pulse integration method
Specifications
- Conversion method: Constant width pulse integration method
- Response: 30 ms
- Input frequency: 10 kHz
- Input terminal: BNC (CO2 ) / terminal board (3.5M)
- Input voltage: AC input sine wave:0.2 to 50 Vrms, rectangular wave: 0.6 tp 70 Vp-p, DC input square wave:Hi = +4 to 30 V, Lo = -1 t to +1 V, pulse width 3 µs or more
- Input impedance: 80 kO or more (20 kHz), 30 kO or more (100 kHz)
- Output terminal: Terminal block (3.5 M)
- Output voltage: 0 to 10 V, load resistance 1 kO or more
- Output current: 4 to 20 mA, load resistance 500 O or less
- Linearity: ±0.2 % or less of the maximum rated value
- Ripple: 0.1 % of the maximum rated value or up to 10 mV
- Power supply for detector: +12 VDC ± 10 %, 100 mA
- Power supply: 100 VAC +10%, -15% or less, 46 to 63 Hz
- Operating temperature range: 0 to 40 ?
- Weight: Approx. 2 kg
- Outer dimensions: 245 (W) × 99 (H) ×180 (D) mm

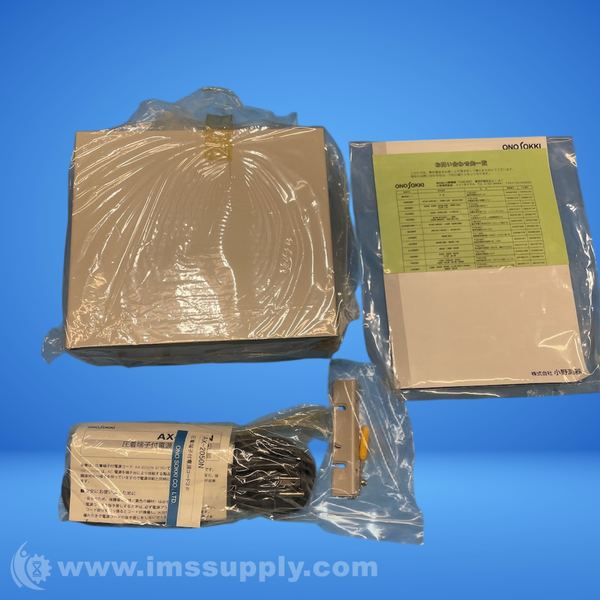

- Accessory: Power cable for 100 VAC (AX-2050N: 3 m)x1, flat-tip screwdriver x 1, panel mounting fixture x 1set, instruction manual x 1

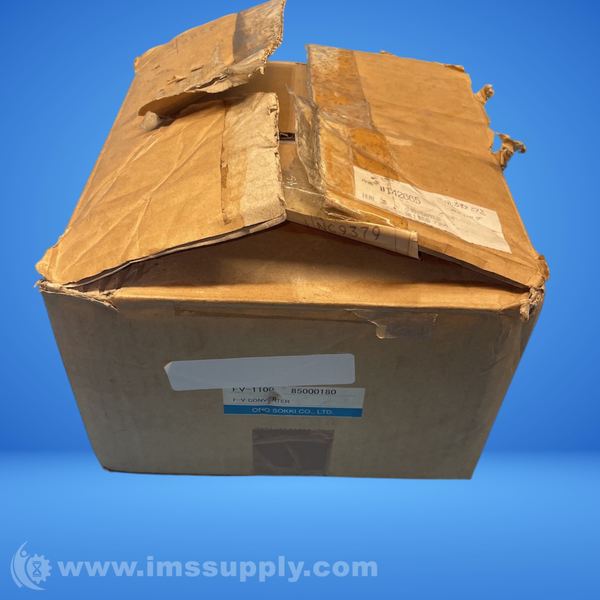

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 29 minutes.
