OPHIR 7Z02633 THERMAL POWER SENSOR
Quick Overview
Brand: OPHIR
Part Number: 7Z02633
IMS Product Code: 2133870
Packaging: Sold Individually
Description:

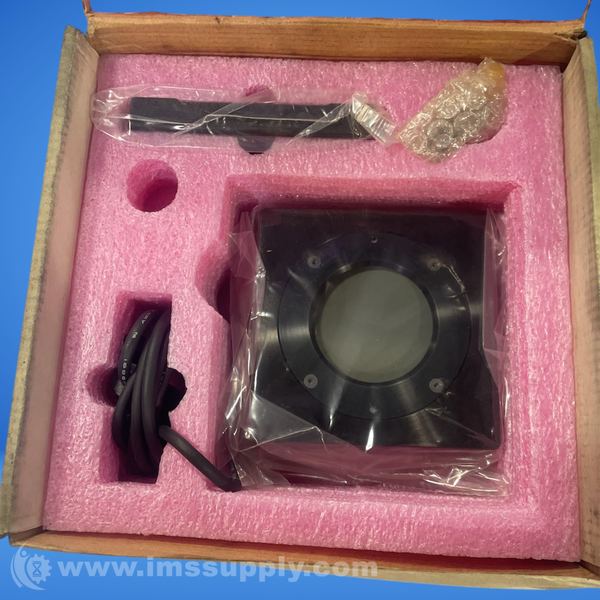

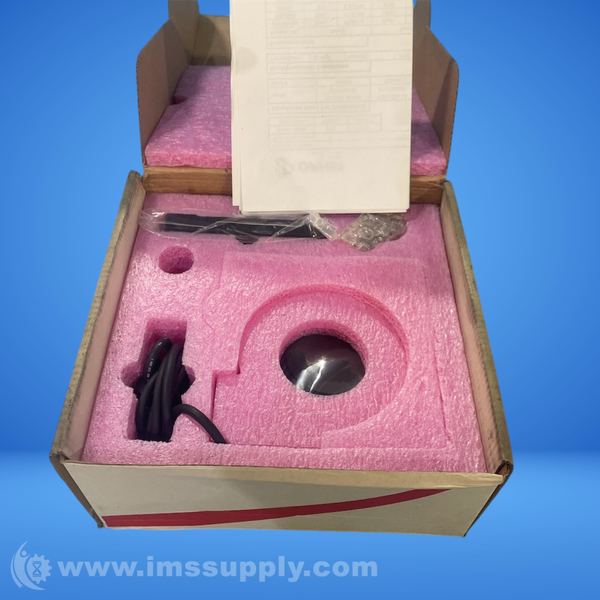

Ophir 7Z02633 Thermal Power Sensor
Thermal power/energy laser measurement sensor with 50mm aperture, measuring 100mW-150W power and 100mJ-4000J energy.
Specifications
- Absorber Type: Broadband
- Aperture: 50mm
- Spectral Range: 0.19-20µm
- Power Range: 100mW-150W
- Energy Range: 100mJ-4000J
- Dimensions: 100 L x 100 W x 39 D (mm)
- Max Pulse Energy: 4000J
- Max Average Power Density: 12kW/cm²
- Response Time: 2.5 s
- Max Energy Density (for <100ns): 0.3J/cm²
- Max Energy Density (for 2ms): 10J/cm²
- Max Average Power: 150W
- Power Mode: CW to 35W or 50W, intermittent to 150W
- Maximum Intermittent Power: 150W for 3min, 80W for 5.5min, 35W continuous
- Power Scales: 150W / 20W
- Power Noise Level: 5mW
- Power Accuracy: +/- 3%
- Linearity with Power: +/- 1%
- Energy Mode: 100mJ - 200J
- Energy Scales: 200J / 30J / 3J
- Minimum Energy: 100mJ
- Maximum Energy Density: 100 J/cm2
- Cooling: convection / ballistic
- Fiber Adapters Available: ST, FC, SMA, SC
- Weight: 0.6 kg
- Version: Standard Sensor
