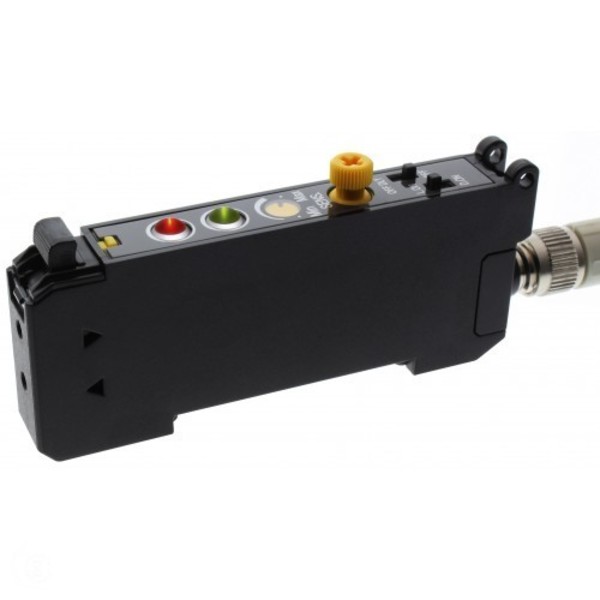

OPTEX BGF-CP FIBER OPTIC AMP GREEN LED 10-TURN POTENTIOMETER

MSRP: $107.00
Starting At: $104.86

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGF-CP
IMS Product Code: 1779776
Packaging: Sold Individually

Description:

Optex BGF-CP Fiber Optic Amp Green LED 10-turn potentiometer M8 QD PNP

All models featurea bright stability and output operation indicators, 40ms pulse stretcher and easy turn adjustment knob for sensitivity adjustment

All models include fiber insertion indicator that confirms the fiber optic cable is inserted properly

The BRF series includes gasketed cover and provides IP66 protection. This allows the sensor to be mounted outside of panels if needed in most applications.

Specifications:

  • Sensing Mode - Type     Fiber Optic Amplifier
  • Features     Low Cost and Tough Mechanics
  • Sensitivity Adjustment     10-turn potentiometer
  • Supply Voltage     10 to 30 VDC
  • Light Source     Green LED
  • Indicators     Orange LED (output) Green LED (stability)
  • Model Type     Stand-Alone Type
  • Cross-Talk Prevention     Up to 4 amplifiers
  • LED Power Level Control
  • Current Consumption     30mA
  • Response Time     250µs
  • Output     PNP
  • Output Operation Mode     Light-on / dark-on switch selectable
  • Timer/Counter Option     40ms off-delay switch selectable
  • Shock Rating     50G
  • Protection     IP66
  • Temperature     -25 to 55° C
  • Connection     M8 4 pin QD
  • Includes     BEF-WLL170 DIN bracket

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Optex. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
