OPTEX BGF-P FIBER OPTIC AMP GREEN LED 10-TURN POTENTIOMETER CABLE

MSRP: $107.00
Starting At: $104.86

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGF-P
IMS Product Code: 1779784
Packaging: Sold Individually

Description:

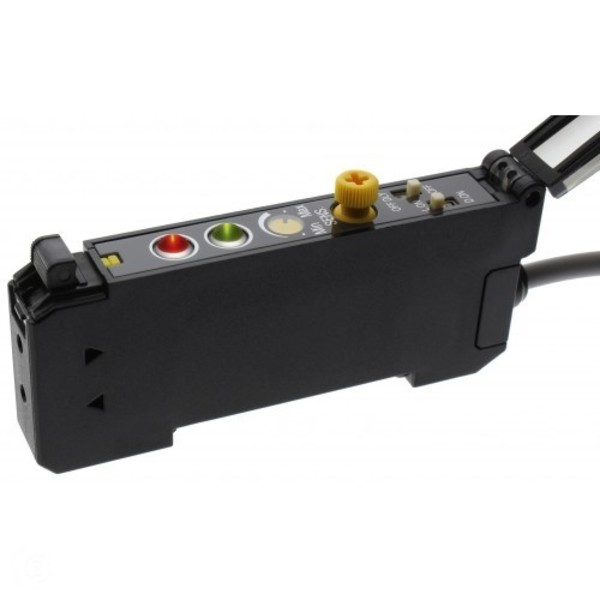

Optex BGF-P Fiber Optic Amp Green LED 10-turn potentiometer Cable Type PNP

All models featurea bright stability and output operation indicators, 40ms pulse stretcher and easy turn adjustment knob for sensitivity adjustment

All models include fiber insertion indicator that confirms the fiber optic cable is inserted properly

The BRF series includes gasketed cover and provides IP66 protection. This allows the sensor to be mounted outside of panels if needed in most applications.

Specifications:

  • Sensing Mode - Type     Fiber Optic Amplifier
  • Features     Low Cost and Tough Mechanics
  • Sensitivity Adjustment     10-turn potentiometer
  • Supply Voltage     10 to 30 VDC
  • Light Source     Green LED
  • Indicators     Orange LED (output) Green LED (stability)
  • Model Type     Stand-Alone Type
  • Cross-Talk Prevention     Up to 4 amplifiers
  • LED Power Level Control
  • Current Consumption     30mA
  • Response Time     250µs
  • Output     PNP
  • Output Operation Mode     Light-on / dark-on switch selectable
  • Timer/Counter Option     40ms off-delay switch selectable
  • Shock Rating     50G
  • Protection     IP66
  • Temperature     -25 to 55° C
  • Connection     2 meter cable
  • Includes     BEF-WLL170 DIN bracket
