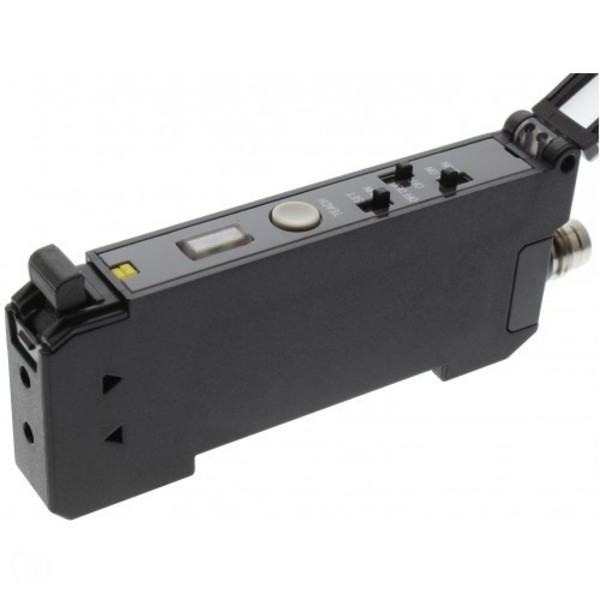

OPTEX BGF-TCP FIBER OPTIC AMP GREEN LED PUSHBUTTON

MSRP: $144.00
Starting At: $138.24

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGF-TCP
IMS Product Code: 1779793
Packaging: Sold Individually

Description:

Optex BGF-TCP Fiber Optic Amp Green LED Pushbutton Adjust M8 QD NPN

All models feature a bright stability and output operation indicators, pushbutton teach and remote teach

All models include fiber insertion indicator that confirms the fiber optic cable is inserted properly

The BRF series includes gasketed cover and provides IP66 protection. This allows the sensor to be mounted outside of panels if needed in most applications.

Specifications:

  • Sensing Mode - Type     Fiber Optic Amplifier
  • Features     Push Button Teach
  • Sensitivity Adjustment     Teach methods include: Maximum, 1-pt teach, 2-pt teach, position teach, and dynamic teach
  • Supply Voltage     10 to 30 VDC
  • Light Source     Green LED
  • Indicators     Output: Orange, Stability: Green
  • Model Type     Stand-Alone Type
  • Cross-Talk Prevention
  • LED Power Level Control
  • Current Consumption     30mA
  • Response Time     250µs
  • Output     PNP
  • Output Operation Mode     Light-on / dark-on selectable
  • Timer/Counter Option     Selectable 40ms fixed 0ff-delay
  • Shock Rating     50G
  • Protection     IP66
  • Temperature     -25 to +55° C
  • Connection     M8 4P QD
  • Includes     Screw mounting DIN bracket

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Optex. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
