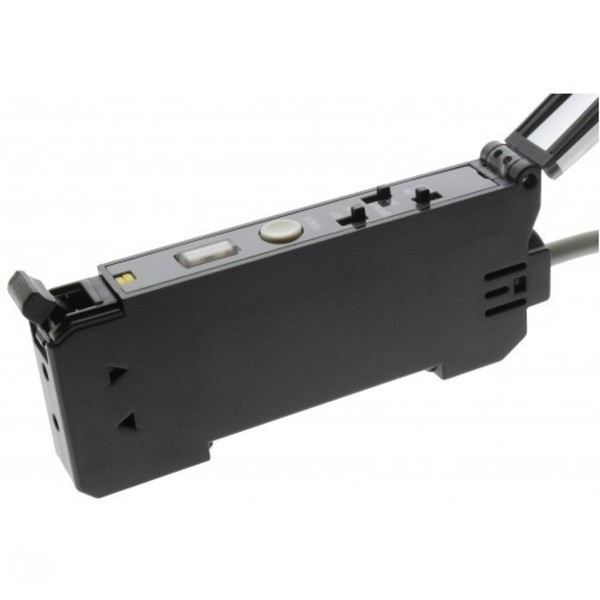

OPTEX BGF-TN FIBER OPTIC AMP GREEN LED PUSHBUTTON
Starting At: $132.48
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGF-TN
IMS Product Code: 1779794
Packaging: Sold Individually
Description:
Optex BGF-TN Fiber Optic Amp Green LED Pushbutton Adjust Cable Type NPN
All models feature a bright stability and output operation indicators, pushbutton teach and remote teach
All models include fiber insertion indicator that confirms the fiber optic cable is inserted properly
The BRF series includes gasketed cover and provides IP66 protection. This allows the sensor to be mounted outside of panels if needed in most applications.
Specifications:
- Sensing Mode - Type Fiber Optic Amplifier
- Features Push Button Teach
- Sensitivity Adjustment Teach methods include: Maximum, 1-pt teach, 2-pt teach, position teach, and dynamic teach
- Supply Voltage 10 to 30 VDC
- Light Source Green LED
- Indicators Output: Orange, Stability: Green
- Model Type Stand-Alone Type
- Cross-Talk Prevention
- LED Power Level Control
- Current Consumption 30mA
- Response Time 250µs
- Output NPN
- Output Operation Mode Light-on / dark-on selectable
- Timer/Counter Option Selectable 40ms fixed 0ff-delay
- Shock Rating 50G
- Protection IP66
- Temperature -25 to +55° C
- Connection 2 meter cable
- Includes Screw mounting DIN bracket
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
