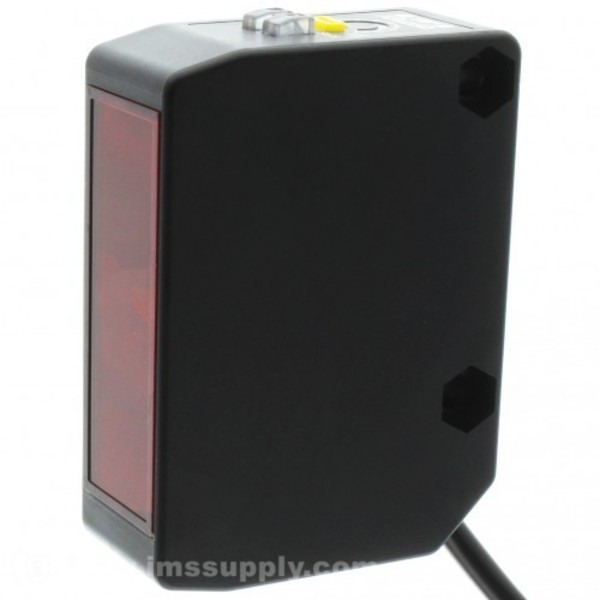

OPTEX BGS-2V100 AC/DC BACKGROUND SUPPRESSION .25 TO 1M SPDT RELAY

MSRP: $125.00
Starting At: $120.00

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V100
IMS Product Code: 1779882
Packaging: Sold Individually

Description:

Optex BGS-2V100 AC/DC Background Suppression .25 to 1M SPDT relay 2M cable

A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.

The BGS-2V100 sensor is capabale of detecting various reflective objects out to 1 meter without being influence by background object. Below is a color response chart.

DC24-240V AC24-240V Relay Rated 3amps at 240VAC

Specifications:

  • Sensing Mode / Type     Background Suppression
  • Sensing Distance     250 to 1,000mm
  • Resolution / Min Detectable Object     1mm or less
  • Light Source     Red LED
  • Supply Voltage     24 to 240 Volt AC/DC
  • Current Consumption     3VA
  • Response Time     15ms
  • Sensitivity Adjustment     2-turn potentiometer
  • Output     SPDT relay 3 amp AC
  • Output Operation Mode     L/O mode
  • Material     Case/cover ABS (glass reinforced) Lens: PC
  • Protection     IP67
  • Shock Rating     50G
  • Temperature     -25 to 55° C
  • Connection     2 meter cable
  • Includes     Mounting bracket/screws

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

IMS Supply is an authorized Optex distributor.
