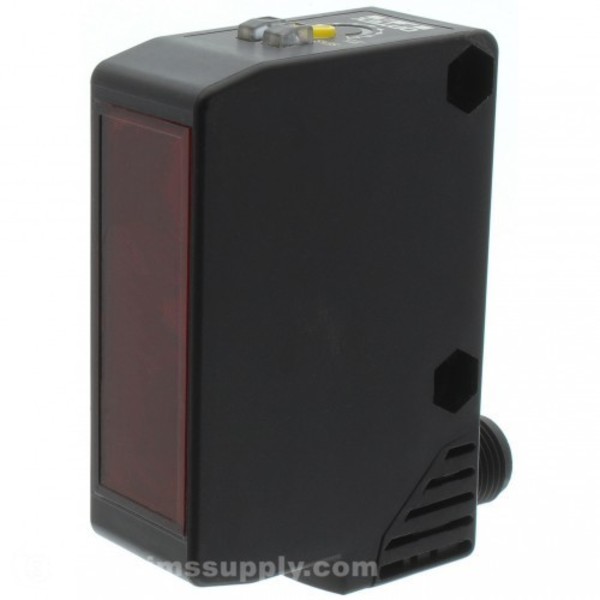

OPTEX BGS-2V100CN BACKGROUND SUPPRESSION .25 TO 1M NPN M12 QD

MSRP: $144.00
Starting At: $141.12

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V100CN
IMS Product Code: 1779885
Packaging: Sold Individually

Description:

Optex BGS-2V100CN Background Suppression .25 to 1M NPN M12 QD

A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.

The BGS-2V100 sensor is capabale of detecting various reflective objects out to 1 meter without being influence by background object. Below is a color response chart.

The connector rotates 90 degrees for added flexibility when mounting. IP67 is maintained even with the connector

10 to 30VDC with NPN Output. Light ON / Dark ON selected by wiring.

Specifications:

  • Sensing Mode / Type     Background Suppression
  • Sensing Distance     250 to 1,000mm
  • Resolution / Min Detectable Object     1mm or less
  • Light Source     Red LED
  • Supply Voltage     10 to 30 VDC
  • Current Consumption     35mA
  • Response Time     0.5ms
  • Sensitivity Adjustment     2-turn potentiometer
  • Output     NPN
  • Output Operation Mode     LO/DO Switch Selectable
  • Material     Case/cover ABS (glass reinforced) Lens: PC
  • Protection     IP67
  • Shock Rating     50G
  • Temperature     -25 to 55° C
  • Connection     M12 4 pin QD Swivel type
  • Includes     Mounting bracket/screws

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
