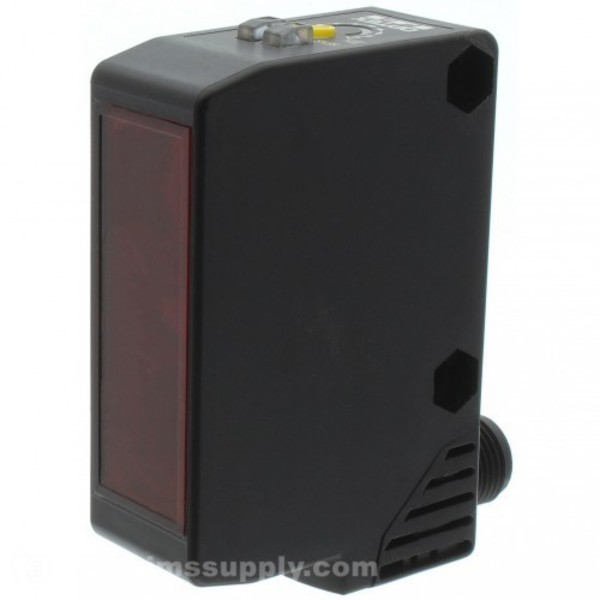

OPTEX BGS-2V30CP BACKGROUND SUPPRESSION 100 TO 300MM PNP M12 QD

MSRP: $138.00
Starting At: $132.48

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V30CP
IMS Product Code: 1779725
Packaging: Sold Individually

Description:

Optex BGS-2V30CP Background Suppression 100 to 300mm PNP M12 QD

A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.

The BGS-2V30 sensor is capabale of detecting various reflective objects out to 300mm without being influence by background object. Below is a color response chart.

The connector rotates 90 degrees for added flexibility when mounting. IP67 is maintained even with the connector

10 to 30VDC with PNP Output. Light ON / Dark ON selected by wiring.

  • Sensing Mode / Type: Background Suppression
  • Sensing Distance: 100 to 300mm
  • Resolution / Min Detectable Object: .5mm or less
  • Light Source: Red LED
  • Supply Voltage: 10 to 30 VDC
  • Current Consumption: 35mA
  • Response Time: 0.5ms
  • Sensitivity Adjustment: 2-turn potentiometer
  • Output: PNP
  • Output Operation Mode: LO/DO Switch Selectable
  • Material: Case/cover ABS (glass reinforced)
  • Lens: PC
  • Protection: IP67
  • Shock Rating: 50G
  • Temperature: -25 to 55° C
  • Connection: M12 4 pin QD Swivel type
  • Includes: Mounting bracket/screws

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

IMS Supply is an authorized Optex distributor.
