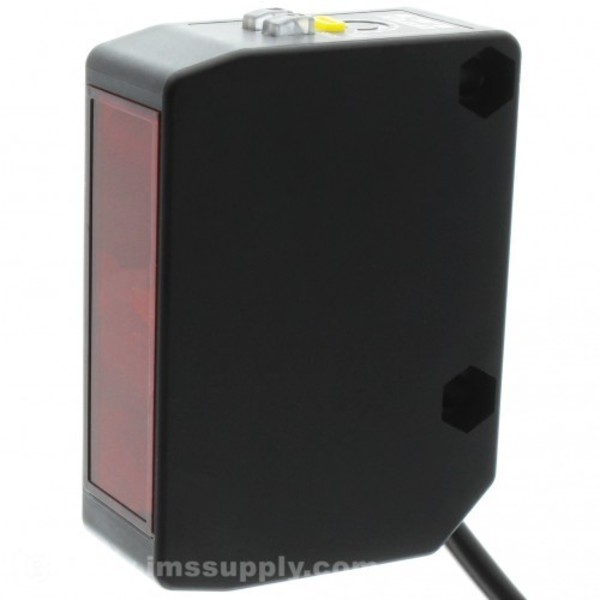

OPTEX BGS-2V50 AC/DC BACKGROUND SUPPRESSION 150 TO 500MM SPDT

MSRP: $135.00
Starting At: $132.30

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V50
IMS Product Code: 1779928
Packaging: Sold Individually

Description:

Optex BGS-2V50 AC/DC Background Suppression 150 to 500mm SPDT relay 2M cable

A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere

The BGS-2V50 sensor is capabale of detecting various reflective objects out to 500mm without being influence by background object. Below is a color response chart.

DC24-240V AC24-240V Relay Rated 3amps at 240VAC

Specification:

  • Sensing Mode / Type     Background Suppression
  • Sensing Distance     150 to 500mm
  • Resolution / Min Detectable Object     1mm or less
  • Light Source     Red LED
  • Supply Voltage     24 to 240 Volt AC/DC
  • Current Consumption     3VA
  • Response Time     15ms
  • Sensitivity Adjustment     2-turn potentiometer
  • Output     SPDT relay 3 amp AC
  • Output Operation Mode     L/O mode
  • Material     Case/cover ABS (glass reinforced) Lens: PC
  • Protection     IP67
  • Shock Rating     50G
  • Temperature     -25 to 55° C
  • Connection     2 meter cable
  • Includes     Mounting bracket/screws

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Optex. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
