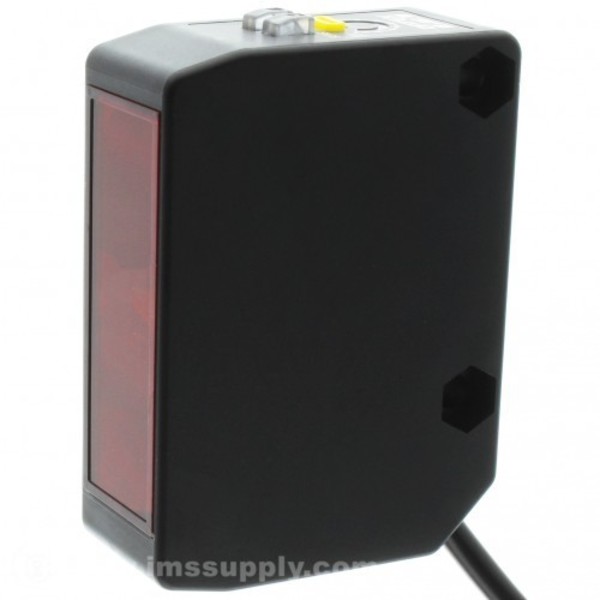

OPTEX BGS-2V50P BACKGROUND SUPPRESSION 150 TO 500MM PNP 2M CABLE

MSRP: $119.00
Starting At: $116.62

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V50P
IMS Product Code: 1779937
Packaging: Sold Individually

Description:

Optex BGS-2V50P Background Suppression 150 to 500mm PNP 2M cable

A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.

The BGS-2V50 sensor is capabale of detecting various reflective objects out to 500mm without being influence by background object. Below is a color response chart.

10 to 30VDC with PNP Output. Light ON / Dark ON selected by wiring.

Specifications:

  • Sensing Mode / Type     Background Suppression
  • Sensing Distance     150 to 500mm
  • Resolution / Min Detectable Object     1mm or less
  • Light Source     Red LED
  • Supply Voltage     10 to 30 VDC
  • Current Consumption     35mA
  • Response Time     0.5ms
  • Sensitivity Adjustment     2-turn potentiometer
  • Output     PNP
  • Output Operation Mode     LO/DO Switch Selectable
  • Material     Case/cover ABS (glass reinforced) Lens: PC
  • Protection     IP67
  • Shock Rating     50G
  • Temperature     -25 to 55° C
  • Connection     2 meter cable
  • Includes     Mounting bracket/screws

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
