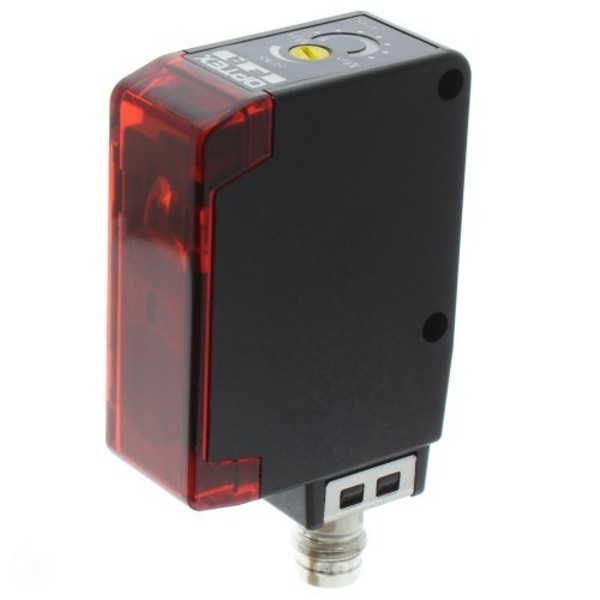

OPTEX BGS-30CN BACKGROUND SUPPRESSION 100 TO 300MM NPN M8 QD

Starting At: $151.20

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-30CN
IMS Product Code: 1779938
Packaging: Sold Individually

Description:

Optex BGS-30CN Background Suppression 100 to 300mm NPN M8 QD

The BGS Series utilizes a very focused beam. The beam spot is 10mm in diameter at a 100mm sensing distance. This allows for stable detection even on parts that are sloped or rounded.

The adjustment potentiometer is very sturdy and is very easy to adjust sensitivity

Specifications:

  • Sensing Mode / Type     Background Suppression
  • Sensing Distance     100 to300mm
  • Light Source     Red LED
  • Supply Voltage     10 to 30 VDC
  • Current Consumption     25mA
  • Response Time     2ms
  • Sensitivity Adjustment     Multi-Turn Potentiometer
  • Hysteresis     0.05
  • Output     NPN
  • Output Operation Mode     LO/DO Switch Selectable
  • Protection     IP67
  • Shock Rating     50G
  • Temperature     -25 to 55° C
  • Connection     M8 4 pin QD
  • Includes     Mounting bracket/screws

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Optex. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
