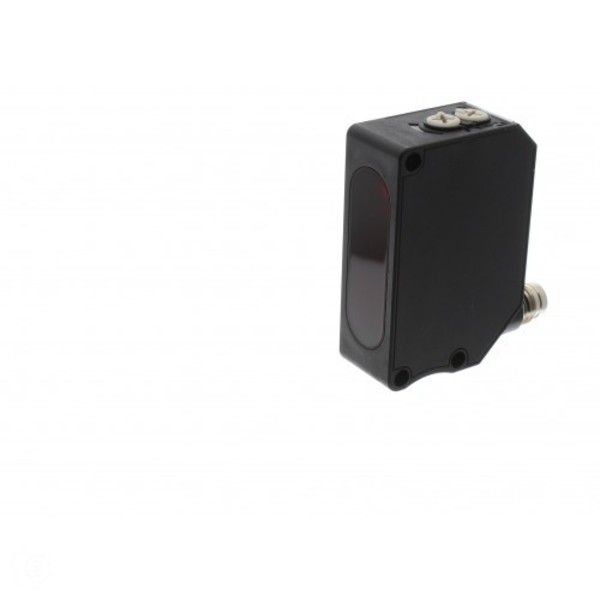

OPTEX BGS-DL10CN(E) BACK GROUND SUPPRESSION LASER 40 TO 100MM
Starting At: $164.64
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-DL10CN(E)
IMS Product Code: 1779965
Packaging: Sold Individually
Description:
Optex BGS-DL10CN(E) Back Ground Suppression Laser 40 to 100mm M8 QD NPN
Easy set-up using 4 turn adjustment potentiometer
3 versions 100mm, 300mm and 700mm available. All versions available with either 2 meter integral cable or rotating M8 4 pin quick disconnect.
Specifications:
| Sensing Mode | High Accuracy Background Suppression |
| Features | Manual adjust type BGS provides accurate sensing for shiny to black targets. |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 35mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | Max 2mW 6s |
| FDA Laser Class | Class II |
| Sensing Distance | 40 to 100mm |
| Spot Size | Ø3mm at 80mm |
| Repeatability | 0.2mm at 100mm |
| Hysteresis | 5% at 80mm |
| Sensitivity Adjustment | Potentiometer 4-turn |
| Display | LED Indicator |
| External Input | N/A |
| Response Time | 0.7ms |
| Control Output | NPN |
| Timing Option | N/A |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | 2m cable |
| Includes | BEF-W100B Mtg Brkt |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
