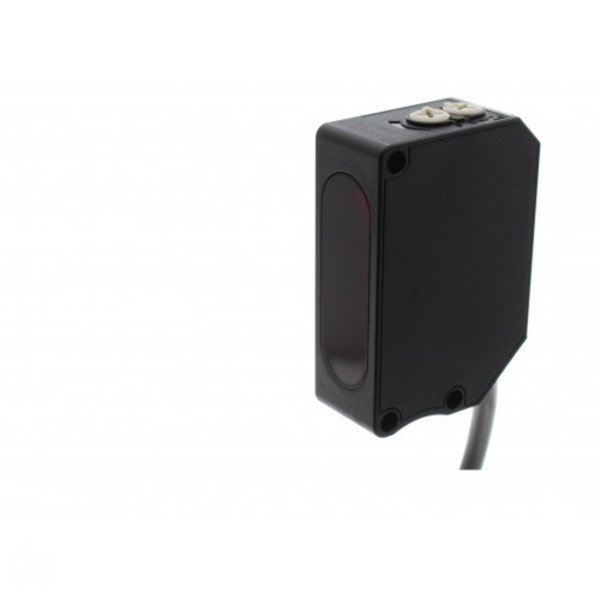

OPTEX BGS-DL10N(E) BACK GROUND SUPPRESSION LASER 40 TO 100MM

MSRP: $168.00
Starting At: $164.64

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-DL10N(E)
IMS Product Code: 1779970
Packaging: Sold Individually

Description:

Optex BGS-DL10N(E) Back Ground Suppression Laser 40 to 100mm Cable Type NPN

Easy set-up using 4 turn adjustment potentiometer

3 versions 100mm, 300mm and 700mm available. All versions available with either 2 meter integral cable or rotating M8 4 pin quick disconnect.

Specifications:

Sensing ModeHigh Accuracy Background Suppression
FeaturesManual adjust type BGS provides accurate sensing for shiny to black targets.
Operation Voltage10 to 30VDC
Current Consumption35mA
Light SourceRed Laser Diode 650nm
Light Source OutputMax 2mW 6s
FDA Laser ClassClass II
Sensing Distance40 to 100mm
Spot SizeØ3mm at 80mm
Repeatability0.2mm at 100mm
Hysteresis5% at 80mm
Sensitivity AdjustmentPotentiometer 4-turn
DisplayLED Indicator
External InputN/A
Response Time0.7ms
Control OutputNPN
Timing OptionN/A
HousingABS
Operation Temperature-10 to +50° C
ProtectionIP 67
Connection2m cable
IncludesBEF-W100B Mtg Brkt

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
