OPTEX BGS-DL25TCP(E) CMOS BACK GROUND SUPPRESSION LASER

MSRP: $245.00
Starting At: $240.10

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-DL25TCP(E)
IMS Product Code: 1779977
Packaging: Sold Individually

Description:

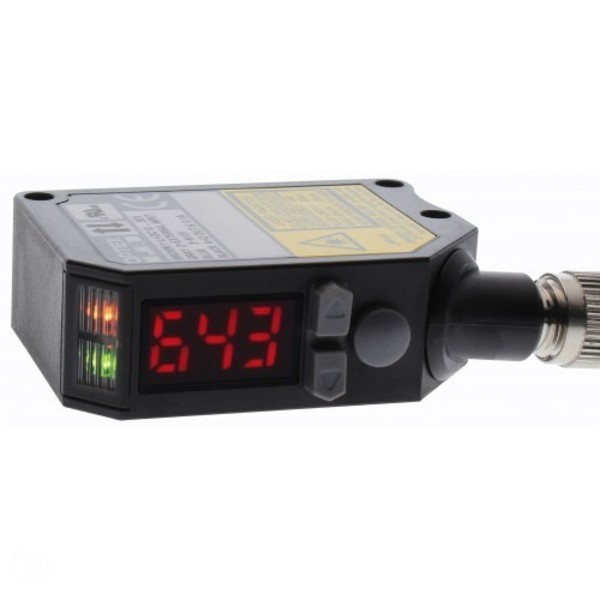

Optex BGS-DL25TCP(E) CMOS Back Ground Suppression Laser 100 to 250mm M8 QD PNP

The BGS-DLT Series incorporates utilizes a CMOS linear image sensor that provides excellent stability and accuracy regardless of color or reflectivity. Making this sensor a perfect choice for almost any background suppression application

Repeat Accuracy of the BGS-DLT sensor is 0.2 - 0.3mm making this sensor an ideal choice for precision sensing applications.

In addition to a teach button there are also two threshold adjustment buttons. Fine adjustments can be made to the threshold value after teaching by using the adjustment buttons.

The BGS-DLT sensors have an FGS function built in. The FGS sensor detects any objects, thin, black, rough and reflective, on the surface of a conveyor.

Specifications:

Sensing ModeHigh Accuracy Background/Foreground Suppression
FeaturesDigital CMOS Image sensor provides accurate method sensing for shiny to black targets.
Operation Voltage10 to 30VDC
Current Consumption50mA
Light SourceRed Laser Diode 650nm
Light Source OutputMax 1mW 300s
FDA Laser ClassClass II
Sensing Distance100 to 250mm
Spot SizeØ2mm at 200mm
Repeatability0.4mm at 100mm
Hysteresis10% at 200mm
Sensitivity AdjustmentTeaching - Manual/Remote Input
Display7 segment 3 digit LED
External InputLaser Off or Teaching
Response Time1.5ms
Control OutputPNP
Timing OptionOn-delay, Off-delay, and One shot
HousingABS
Operation Temperature-10 to +50° C
ProtectionIP 67
ConnectionM8 4P QD
IncludesBEF-W100-A Mtg Brkt

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
