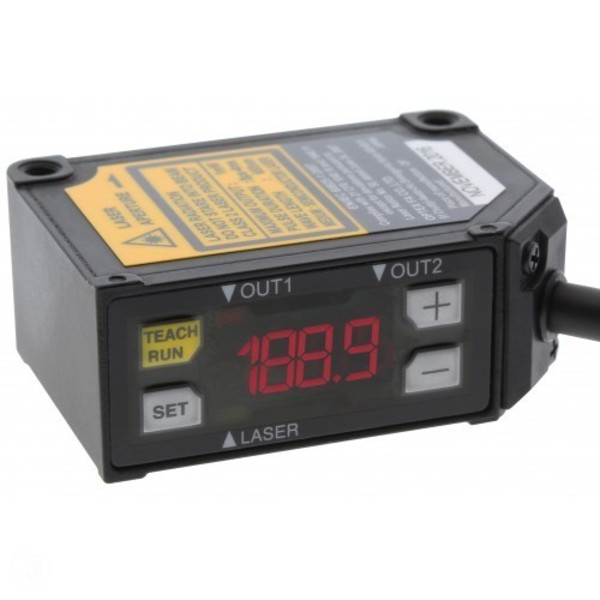

OPTEX BGS-HDL25TM122 DUAL OUTPUT LASER 50-250MM M12 5PIN

MSRP: $595.00
Starting At: $583.10

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-HDL25TM122
IMS Product Code: 1779993
Packaging: Sold Individually

Description:

Optex BGS-HDL25TM122 Dual Output Laser 50-250mm m12 5pin QD NPN/PNP

  • Minimum detectable height difference = 0.08 mm (50mm Type)
  • Built-in controller 4 digit display Stable detection regardless of object color
  • 2 distances 20 to 50mm and 50 to 250mm available Selectable NPN/PNP Output

By combining 3 separate processes Digital Sub Pixel Processing, High Resolution Electronic Shutter, and Automatic Sampling mode the BGS-HL Series from Optex is able to achieve Precise height differential detection regardless of color and material.

The BGS-HDL Type is equipped with 2 control outputs. The BGS-HDL can be set up for upper and lower limit output or 2-step output, applications that call for 2 sensors can now be covered with just a single sensor

The digital display can be set to either background mode or target mode. Select the the display mode for the aplication required.

Subpixel processing divides one pixel into sub pixels and enables accurate detection of peak.

The BGS-HDL Type can be set-up for either 2 outputs or remote teach and external input can be used for laser off, laser on, sample and hold etc.

In this application example the sensor is set up see the difference between 1,2, and 3 layers of blister packs

In this application example the sensor is set up see if the feeder is full and if the feeder is running out of parts.

Specifications:

Sensing ModeHigh Precision Background Suppression
Minimum Detectable Height DifferenceAble to detect height difference of 80µm, Reflective surfaces as well as shiny targets
Operation Voltage12 to 24VDC
Current Consumption40mA
Light SourceRed Laser Diode 655nm
Light Source OutputMax 1mW
FDA Laser ClassClass I
Sensing Distance50 to 250mm
Spot SizeØ1.0mm at 150mm
Repeatability0.1mm
Hysteresis0 to 149.9mm adjustable
Sensitivity AdjustmentTeaching - Manual/Remote Input
Display7 segment 4 digit LED
External InputLaser Off, 2 ea.Teaching, Sample or Hold, One Shot
Response Time1.5 ~ 7.5ms
Control Output2 Each Programmable NPN/PNP
Timing OptionOn-delay, Off-delay, and One shot
HousingAluminum
Operation Temperature-10 to +50° C
ProtectionIP 67
ConnectionM12 5P pigtail
IncludesBEF-0D1-B Mounting Bracket
