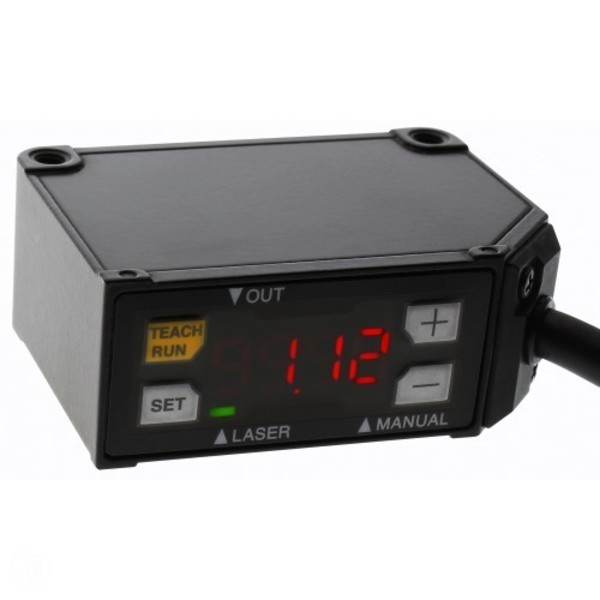

OPTEX BGS-HL25T DIGITAL LASER 50-250MM CABLE NPN/PNP

MSRP: $545.00
Starting At: $534.10

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-HL25T
IMS Product Code: 1779996
Packaging: Sold Individually

Description:

Optex BGS-HL25T Digital Laser 50-250mm Cable NPN/PNP

  • Minimum detectable height difference = 0.08 mm (50mm Type)
  • Built-in controller 4 digit display Stable detection regardless of object color
  • 2 distances 20 to 50mm and 50 to 250mm available Selectable NPN/PNP Output

By combining 3 separate processes Digital Sub Pixel Processing, High Resolution Electronic Shutter, and Automatic Sampling mode the BGS-HL Series from Optex is able to achieve Precise height differential detection regardless of color and material.

Subpixel processing divides one pixel into sub pixels and enables accurate detection of peak.

In addition to standard feedback, received light to laser power, BGS-HL has Automatic Sampling function which enables stable detection of metal surface and also black material by adjusting sampling speed.

Specifications:

Sensing ModeHigh Precision Background Suppression
Minimum Detectable Height DifferenceAble to detect height difference of 8µm, Reflective surfaces as well as shiny targets
Operation Voltage12 to 24VDC
Current Consumption40mA
Light SourceRed Laser Diode 655nm
Light Source OutputMax 390µW
FDA Laser ClassClass II
Sensing Distance20 to 50mm
Spot SizeØ0.8mm at 35mm
Repeatability0.01mm
Hysteresis0 to 22.49mm adjustable
Sensitivity AdjustmentTeaching - Manual/Remote Input
Display7 segment 4 digit LED
External InputLaser Off, Teaching, Sample or Hold, One Shot
Response Time1.5 ~ 7.5ms
Control Output1 Each Programmable NPN/PNP
Timing OptionOn-delay, Off-delay, and One shot
HousingAluminum
Operation Temperature-10 to +50° C
ProtectionIP 67
ConnectionM8 4P QD
IncludesBEF-0D1-A Mounting Bracket

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
