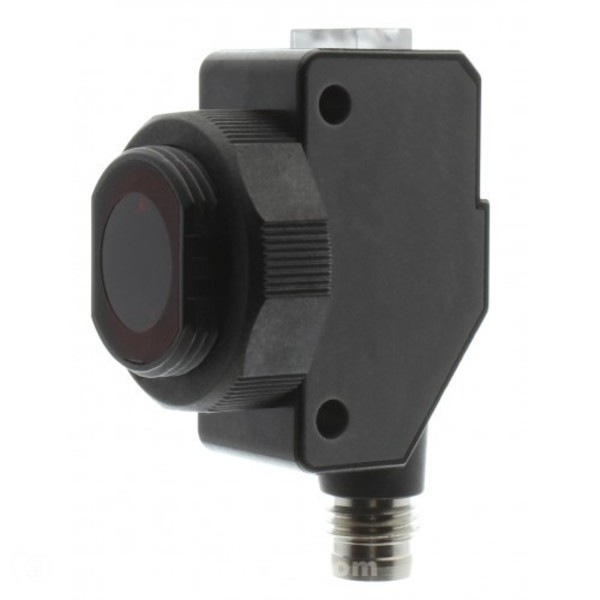

OPTEX BGS-Y8CP BACKGROUND SUPPRESSION 200MM PNP-LO/DO M8 QD
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-Y8CP
IMS Product Code: 1780027
Packaging: Sold Individually
Description:
Optex BGS-Y8CP Background Suppression 200mm PNP-LO/DO M8 QD
BGS (Background Suppression) sensors are not influenced by the color or texture of the target, the sensor is also able to ignore changes in background.
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
Specifications:
| Sensing Mode / Type | Background Suppression |
| Sensing Distance | 200mm |
| Resolution / Min Detectable Object | |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 4-turn potentiometer |
| Output | 2 each PNP |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | M18 threaded mounting nut |
