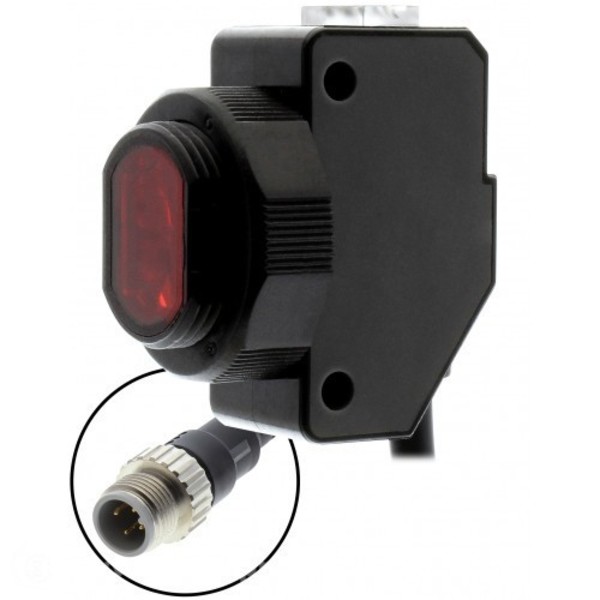

OPTEX BGS-Y8P-M12 BACKGROUND SUPPRESSION 200MM PNP-LO/DO M12

Call For Quote

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: BGS-Y8P-M12
IMS Product Code: 1780039
Packaging: Sold Individually

Description:

Optex BGS-Y8P-M12 Background Suppression 200mm PNP-LO/DO M12 pigtail

BGS (Background Suppression) sensors are not influenced by the color or texture of the target, the sensor is also able to ignore changes in background.

The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility

Specifications:

Sensing Mode / TypeBackground Suppression
Sensing Distance200mm
Resolution / Min Detectable Object
Light SourceRed LED
Supply Voltage10 to 30 VDC
Current Consumption30mA
Response Time0.5ms
Sensitivity Adjustment4-turn potentiometer
Output2 each PNP
Output Operation ModeLO and DO
MaterialABS w/20% glass (case) PMMA (lens)
ProtectionIP67
Shock Rating100G
Temperature-25 to 55° C
ConnectionM12 4 pin QD pigtail
IncludesM18 threaded mounting nut
