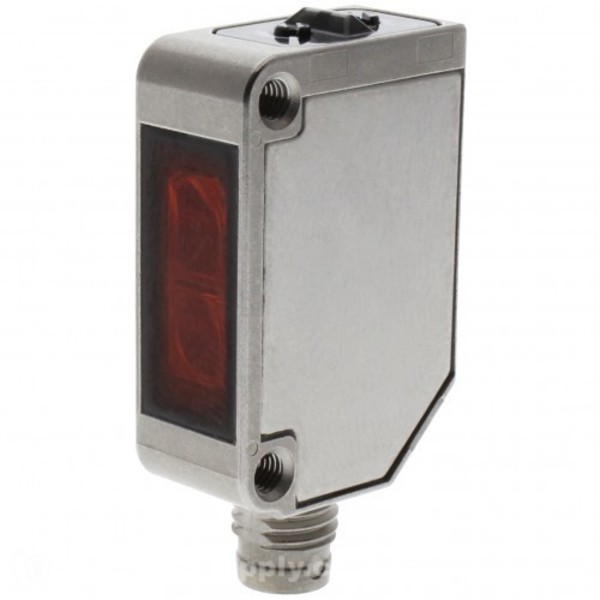

OPTEX BGS-ZM10CN3 IP69K BACKGROUND SUPPRESSION 10 TO 100MM NPN M8
Starting At: $170.20
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-ZM10CN3
IMS Product Code: 1780081
Packaging: Sold Individually
Description:
Optex BGS-ZM10CN3 IP69K Background Suppression 10 to 100mm NPN M8 QD
The BGS-ZM series was designed for use in the toughest of environments
The BGS-ZM meets and exceeds IP69K ratings standard.
Test Condition: A sensor on a the turntable that rotaes 5 times per minute pressure 80-100bar, flow rate 14-16 litre/minute, Distance from Nozzle 100-150mm
8 turn adjustment potentiometer provides precise detection
Specifications:
| Sensing Mode / Type | Background Suppression |
| Sensing Distance | 10 to 100mm |
| Resolution / Min Detectable Object | 0.5mm or less |
| Light Source | Red LED (four element) |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 28mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 8-turn potentiometer |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | SUS316L (housing) PPSU (lens) PES (top cover) PEEK (pot/switch) FKM (gasket) |
| Protection | IP69K (DIN) IP67 (IEC) |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 3 pin QD |
| Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
