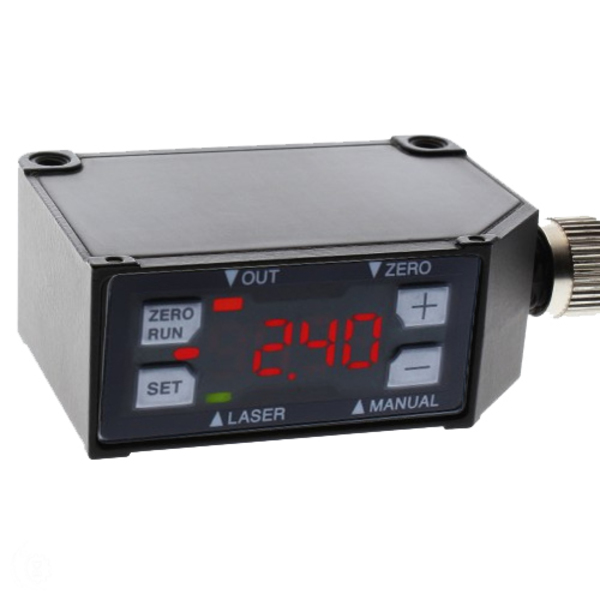

OPTEX CD22-35AC LASER MEASUREMENT 20 TO 50MM RANGE 4-20MA ANALOG

MSRP: $700.00
Starting At: $686.00

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: CD22-35AC
IMS Product Code: 1782108
Packaging: Sold Individually

Description:

Optex CD22-35AC Laser Measurement 20 to 50mm Range 4-20ma Analog with NPN/PNP M8 4pin

Compact Size perfect for online real time inspection during manufacturing

Linearity around +/-0.1% full scale or better even with stainless steel or black rubber.

In addition to standard feedback, received light to laser power, the CD22 hsa automatic sampling function which enables stable measurement of metal surfaces and also black material by adjusting the sampling speed automatically.

Bright 4 digit display in small housing, Intuitive set-up with 4 buttons, high end functions that are easily adjusted

The clamp and hold function allows the sensor to ignore small holes in parts or targets with very rough surfaces. If the sensor detects a hold in a part instead of going to out of range the sensor will hold the last known good value for the amount of time set by the user.

Digital sub-pixel processing improves linearity by more than twice that of conventional laser measurement sensors. The CD22 sub-pixel processing divides one pixel in to 65536 sub-pixels to help produce a genuine wave form.

Specifications:

Sensor TypeSelf-Contained Displacement Laser Measurement Sensor
Sensing ModeDiffuse Reflective Type
Supply Voltage12-24 VDC ±10%
Operation Temperature-10 to +50° C
Measurement Range35mm ±15mm
Sensing Window20 to 50 mm
Repeatability6µm
Light SourceRed Laser Diode
Wave Length655nm
Maximum Output390 µW
Laser Class IEC/JISClass 1
Laser Class FDAClass II
Laser Spot Size600 x 700 µm
Linearity0.1% F.S.
Temp Drift±0.02% /°C of F.S.
Digital Control OutputProgrammable as a NPN or PNP
Analog OutputNone
Serial CommunicationNone
Protection/Enclosure TypeBlack Anodized Aluminum
ConnectionM8 4 Pin QD

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
