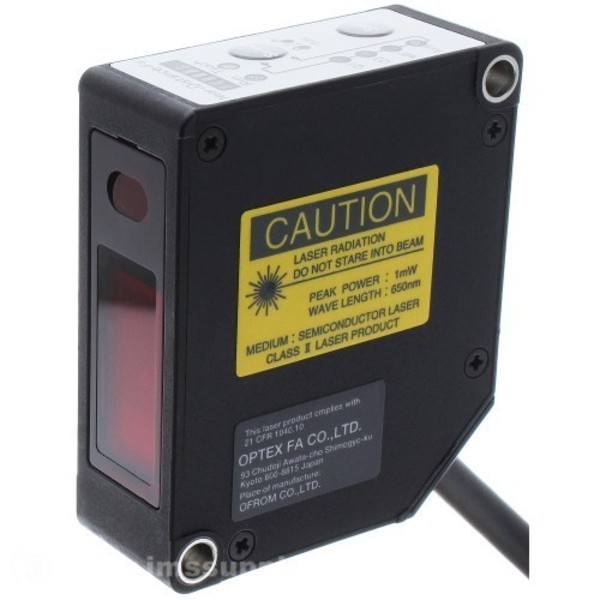

OPTEX CD33-120PV DIFFUSE 120MM ±60MM, 2CH PNP, CABLE

MSRP: $1,100.00
Starting At: $1,078.00

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: CD33-120PV
IMS Product Code: 1782174
Packaging: Sold Individually

Description:

Optex CD33-120PV Diffuse 120mm ±60mm, 2ch PNP, Cable

High accuracy 0 to 10 volt output version for measurement applications where linear output proportional to sensing distance is required. Also includes 2 digital outputs that can be used for comparator applications or use one for out of range alarm etc.

deal for mounting on robotic cylinder thanks to compact dimensions and light weight. IP67 water tightness is also secured.

High resolution electronic shtter controls to keep a constant level according to reflection. This function enables stable peak level detection even when unstable surface conditions exist.

Subpixel processing divides one pixel into small pieces that enables accurate measurement by reproducing genuine value of incoming lighte

The programmable remote MF intput can be set to one of the following laser off, external teach, hold, or one-shot trigger.

Specifications:

Sensor TypeSelf-Contained CMOS Displacement Laser Measurement Sensor
Sensing ModeDiffuse Reflective Type
Supply Voltage12-24VDC (-5% / +10%) 18-24VDC (-5% / +10%) when using 0-10 VDC Analog)
Operation Temperature-10 to +45° C
Measurement Range120mm ±60mm
Sensing Window60 to 180mm
Repeatability30µm
Light SourceRed Laser Diode
Wave Length655nm
Maximum Output1 mW
Laser Class IEC / JISClass 2
Laser Class FDAClass II
Laser Spot Size1.0 x 1.5mm at 120mm
Linearity±0.3% F.S.
Temp Drift±0.08% /°C of F.S.
Digital Control Output2 ea PNP output
Analog Output0-10 VDC
Serial CommunicationNone
Protection / Enclosure TypeIP67/PBT
Connection2m Cable




Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
