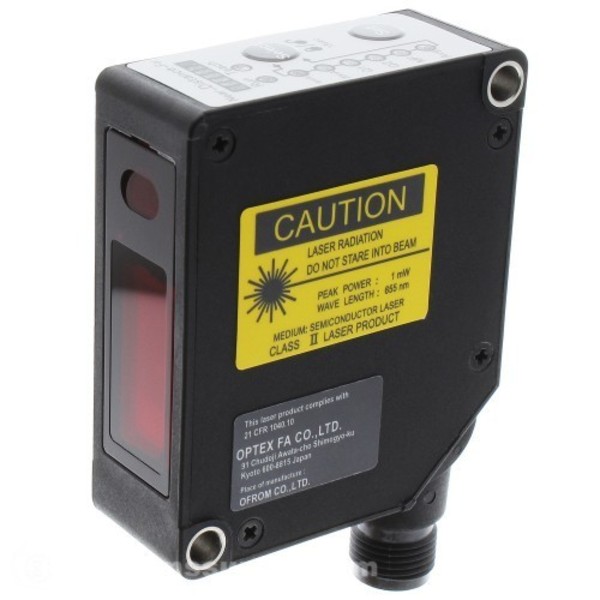

OPTEX CD33-250CNA DIFFUSE 250MM ±150MM, 2CH NPN / 4-20MA, QD

MSRP: $1,100.00
Starting At: $1,078.00

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: CD33-250CNA
IMS Product Code: 1782177
Packaging: Sold Individually

Description:

Optex CD33-250CNA Diffuse 250mm ±150mm, 2ch NPN / 4-20mA, QD

High accuracy 4-20ma current output version for measurement applications where linear output proportional to sensing distance is required. Also includes 2 digital outputs that can be used for comparator applications or use one for out of range alarm etc.

Ideal for mounting on robotic cylinder thanks to compact dimensions and light weight. IP67 water tightness is also secured.

High resolution electronic shtter controls to keep a constant level according to reflection. This function enables stable peak level detection even when unstable surface conditions exist.

Subpixel processing divides one pixel into small pieces that enables accurate measurement by reproducing genuine value of incoming lighte

The programmable remote MF intput can be set to one of the following laser off, external teach, hold, or one-shot trigger.

Specifications:

Sensor TypeSelf-Contained CMOS Displacement Laser Measurement Sensor
Sensing ModeDiffuse Reflective Type
Supply Voltage12-24VDC (-5% / +10%)
Operation Temperature-10 to +45° C
Measurement Range250mm ±150mm
Sensing Window100 to 400mm
Repeatability75µm
Light SourceRed Laser Diode
Wave Length655nm
Maximum Output1 mW
Laser Class IEC / JISClass 2
Laser Class FDAClass II
Laser Spot Size1.75 x 3.5mm at 250mm
Linearity±0.3% F.S.
Temp Drift±0.08% /°C of F.S.
Digital Control Output2 ea NPN output
Analog Output4-20mA
Serial CommunicationNone
Protection / Enclosure TypeIP67/PBT
ConnectionM12 8 Pin QD Swivel Type

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).

Lead Time: 1 to 5 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Optex. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
