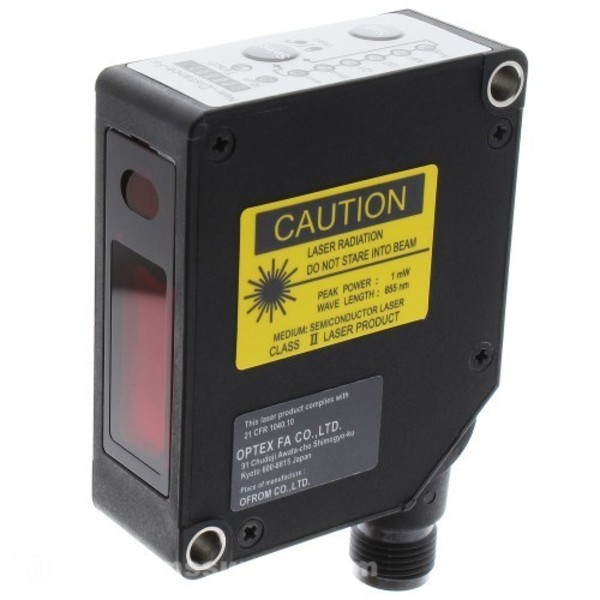

OPTEX CD33-250CP DIFFUSE 250MM ±150MM, 2CH PNP, QD

MSRP: $1,100.00
Starting At: $1,078.00

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: CD33-250CP
IMS Product Code: 1782182
Packaging: Sold Individually

Description:

Optex CD33-250CP Diffuse 250mm ±150mm, 2ch PNP, QD

Includes 2 digital outputs perfect for use in comparator applications such as the one pictured to the right. The sensor can determine whether the part is there or not there and whether ot not it is seated properly with the 2 digital outputs

Ideal for mounting on robotic cylinder thanks to compact dimensions and light weight. IP67 water tightness is also secured.

High resolution electronic shtter controls to keep a constant level according to reflection. This function enables stable peak level detection even when unstable surface conditions exist.

Subpixel processing divides one pixel into small pieces that enables accurate measurement by reproducing genuine value of incoming lighte

The programmable remote MF intput can be set to one of the following laser off, external teach, hold, or one-shot trigger.

Specifications:

Sensor TypeSelf-Contained CMOS Displacement Laser Measurement Sensor
Sensing ModeDiffuse Reflective Type
Supply Voltage12-24VDC (-5% / +10%)
Operation Temperature-10 to +45° C
Measurement Range250mm ±150mm
Sensing Window100 to 400mm
Repeatability75µm
Light SourceRed Laser Diode
Wave Length655nm
Maximum Output1 mW
Laser Class IEC / JISClass 2
Laser Class FDAClass II
Laser Spot Size1.75 x 3.5mm at 250mm
Linearity±0.3% F.S.
Temp Drift±0.08% /°C of F.S.
Digital Control Output2 ea PNP output
Analog OutputNone
Serial CommunicationNone
Protection / Enclosure TypeIP67/PBT
ConnectionM12 8 Pin QD Swivel Type




Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
