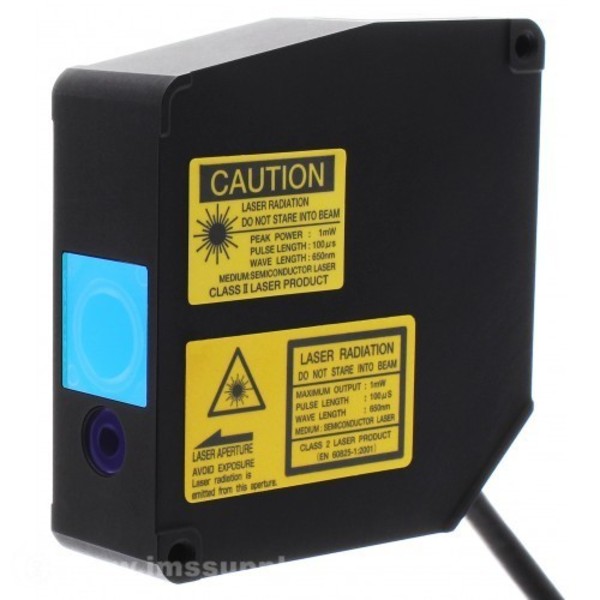

OPTEX CD4-85 LASER MEASUREMENT SENSOR 65 TO 105MM RANGE CLASS II
Starting At: $2,346.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD4-85
IMS Product Code: 1782495
Packaging: Sold Individually
Description:
Optex CD4-85 Laser Measurement Sensor 65 to 105mm Range Class II Type
65 - 105mm distance with excellent resolution. Must use with CD4 controller
Specifications:
| Description | High Accuracy Displacement Laser with Linear Image Sensor and Color LCD Controller |
| Sensing Mode | Diffuse Reflective (Use w/ CD4A Controller) |
| Features | |
| Supply Voltage | 12 to 24 VDC (CD4A controller) |
| Operation Temperature | -10 to +45° C |
| Measurement Range | 85mm ±20mm |
| Sensing Window | 65 to105mm |
| Repeatability | 3µm |
| Light Source | Red Laser Diode |
| Wave Length | 650nm |
| Maximum Output | 1 mW |
| Laser Class IEC / JIS | Class 2 |
| Laser Class FDA | Class II |
| Laser Spot Size (Diffuse Reflective) | 70 x 290 µm at 85mm |
| Linearity | ±0.1% F.S. |
| Temp Drift | ±0.01% /°C of F.S. |
| Digital Control Output | Select CD4A Controller w/ NPN or PNP |
| Analog Output | CD4A Controller: ±5 VDC and 4 to 20mA |
| Serial Communication | CD4A Controller: RS-232 |
| Protection / Enclosure Type | IP67/Diecast Alum-Glass Lens |
| Connection | 500mm Pigtail w/12 Pin Conn |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
