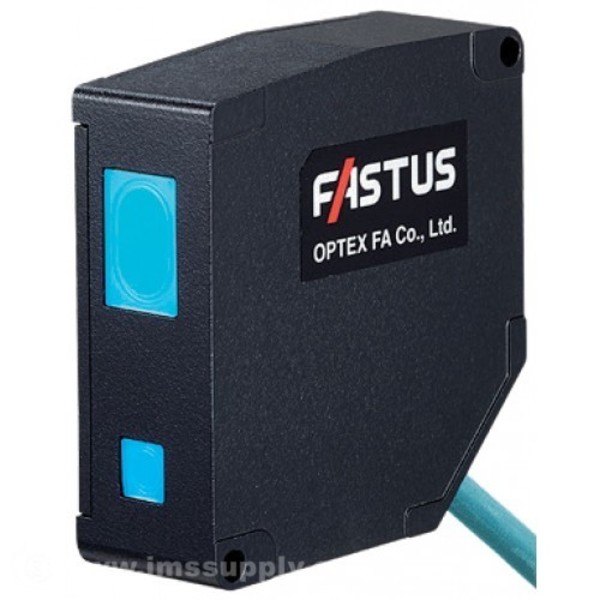

OPTEX FA CDX-85A ULTRA-HIGH ACCURACY LASER DISPLACEMENT SENSOR
Starting At: $6,061.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CDX-85A
IMS Product Code: 1783176
Packaging: Sold Individually
Description:
Optex FA CDX-85A Ultra-High Accuracy Laser Displacement Sensor - Specular Reflection Type - Narrow Beam - 85mm (±20mm) Range - 0.25µm Accuracy - Network Capable
Linearity of the CDX-85A Meas. range 65 to 85 mm: +/-0.018% of F.S. (+/-7.2 μm) Meas. range 85 to 105 mm: +/-0.03% of F.S. (+/-12.0 μm)
With conventional image sensors, feedback control to the shutter could not keep up with sudden changes in receiving light quantities caused by changes in workpiece colors, momentary inabilities to perform measurements would be caused, resulting in response delays. With newly developed ATMOS image sensors, measurements can be performed without the need for feedback control thanks to an industry-first algorithm. Because momentary inabilities to perform measurements and response delays have been eliminated, real-time measurements are now possible.
Specifications:
| Description | Ultra-High Accuracy Displacement Laser Network Capable Includes Web Server |
| Features | Stand-alone type has newly developed image sensor ATMOS with feedback-free high-speed shutter. High-speed measuring featuring 12.5µs sampling period. |
| Sensing Mode | Diffuse Reflective or Specular Reflective |
| Supply Voltage | 12-24 VDC ±10% |
| Operation Temperature | -10 to +50° C |
| Measurement Range | 85mm ±20mm |
| Sensing Window | 65 to 105mm |
| Repeatability | 0.3µm |
| Light Source | Red semiconductor laser |
| Wave Length | 655nm |
| Maximum Output | 390 µW |
| Laser Class IEC/JIS | Class 1 |
| Laser Class FDA | Class I |
| Beam Spot Type | Narrow |
| Laser Spot Size (Diffuse Reflective) | Ø70µm at 85mm |
| Linearity | +/-0.018% of F.S. @ 65 to 85 mm +/-0.03% of F.S @ 85 to 105 mm |
| Temp Drift | ±0.01% /°C of F.S. |
| Digital Control Output | 3 each NPN/PNP selectable when used with CDA-M controller |
| Analog Output | 4 to 20mA when used with CDA-M controller |
| Serial Communication | Ethernet serial interface |
| Protection/Enclosure Type | IP67 |
| Connection | 500mm Pigtail w/M12 8-Pin Connector |
