OPTEX CTD-2500P-IR 25 METER INFRARED THRUBEAM M18 BARREL PNP
Starting At: $109.76
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CTD-2500P-IR
IMS Product Code: 1780345
Packaging: Sold Individually
Description:

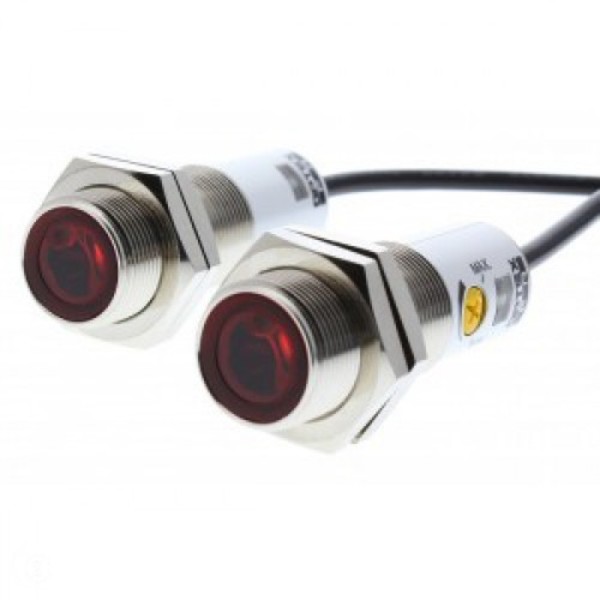

Optex CTD-2500P-IR 25 Meter Infrared Thrubeam M18 Barrel PNP 2M Cable
Optex CTD-2500P-IR 25 Meter Infrared Thrubeam M18 Barrel PNP 2M Cable
The new CR thru beam sensor has long sensing range of up to 25 meters Infrared LED
The C-R Series uses hot melt molding that enables high vibration resistance and excellent water tightness.
Built in alignment indicator makes it very easy to align teh sensor even when sensing at long distances.
Specifications:
| Sensing Mode / Type | Thrubeam |
| Housing | Nickel plated brass |
| Sensing Distance | 25 meters |
| Light Source | IR LED |
| Beam Spot Ø Size / Distance Ø | Ø1,600mm/25 meter |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 45mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO Selectable by Wire |
| Material | Brass Ni Plated (housing) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | M18 metal locking nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
