OPTEX CVS2-P21-RA COLOR SORTING OR PATTERN MATCHING PNP NARROW

MSRP: $1,910.00
Starting At: $1,871.80

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: CVS2-P21-RA
IMS Product Code: 1783043
Packaging: Sold Individually

Description:

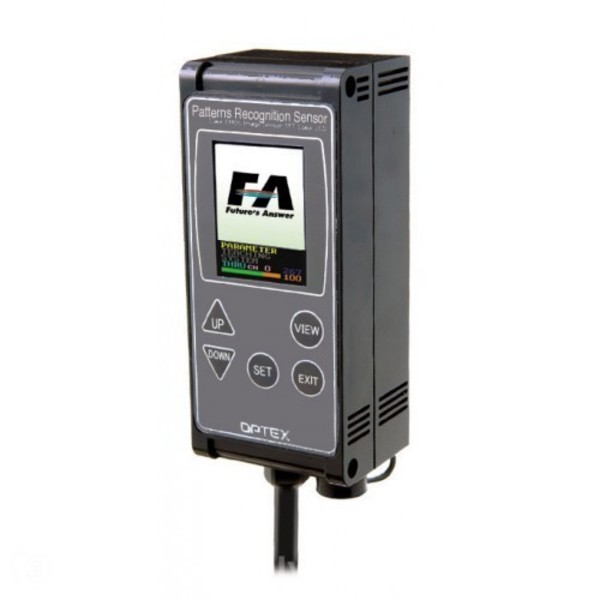

Optex CVS2-P21-RA Color Sorting or Pattern Matching PNP Narrow View Type

Sensing distance 31 to 39mm with a 17 X 20mm field of view

Can be set-up in either pattern match or color sorting mode

Background brightness can be corrected in order to provide an even background color

Specifications:

Item TypeColor Sensor
FeaturesColor pattern matching, masking, zoom, programmable aux output, and sixteen bank program storage.
Detection Angle20°
Field of View TypeNarrow View Type
Working Distance31 to 39mm
Field of View Size17 x 20mm ±10%
Light SourceWhite LED Ring
LED Light Duration50,000 hrs approximately
Image Sensor330,000 Pixel CMOS Color Image Sensor
Supply Voltage12 to 24VDC
Power Consumption140mA at 24VDC
Operation Temperature0 to 40° C
Control OutputPNP
Response Time4ms to 22ms
Remote Input FunctionsTeaching, synchronous, and 16CH bank select
ProtectionIP67
Connection2 meter cable + external connector for remote lighting or monitor




Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
