OPTEX D2SA-MP LASER AMPLIFIER MAIN UNIT 2 CHANNEL PNP WITH 4-20MA
Starting At: $416.50
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: D2SA-MP
IMS Product Code: 1780404
Packaging: Sold Individually
Description:

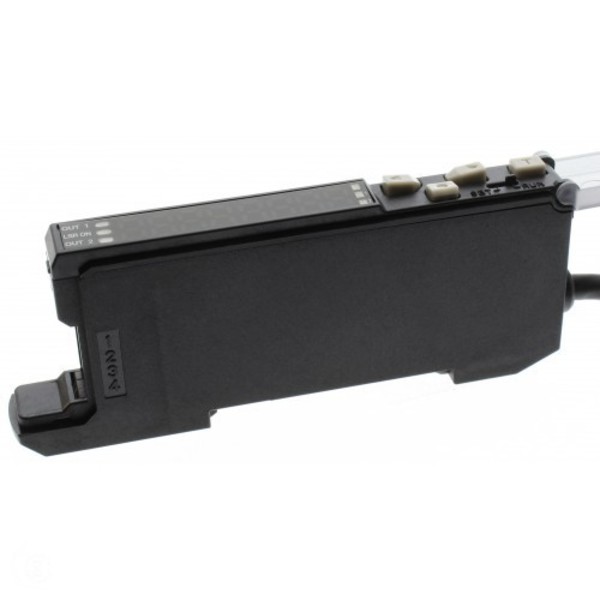

Optex D2SA-MP Laser Amplifier Main Unit 2 Channel PNP with 4-20ma
The threshold and the reflected light level are both indicated at the same time making the sensitivity set-up easy.
Quick connection between laser head and amplfier with the Econ connector. All laser heads are connectable to any D2SA amplifier.
Interconnect version allows for simple connection betweein main unit and sub units.
2 Channel model has two digital outputs for the control and or alarm. There is also a 4-20ma analog output. The external input can be configured to operate as needed.
Specifications:
| Sensing Mode | Digital Display Push-Button Teach Amplifier |
| Features | Master Unit - Interconnect Type |
| Supply Voltage | 12-24 VDC ±10% |
| Operation Temperature | -25 to +55° C |
| Sensing Distance | N/A |
| Repeatability / Response Time | 60µs, 500µs & 2ms |
| Light Source | |
| Wave Length | |
| Maximum Output | |
| Laser Class IEC / JIS | |
| Laser Class FDA | |
| Laser Spot Size (Diffuse Reflective) | N/A |
| Digital Control Output | 2CH NPN |
| Analog Output | 4-20mA |
| Protection / Enclosure Type | IP50 |
| Connection | 2 meter cable type |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
