OPTEX D2SA-SN1 LASER AMPLIFIER SUB UNIT 1 CHANNEL NPN
Starting At: $328.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: D2SA-SN1
IMS Product Code: 1780413
Packaging: Sold Individually
Description:

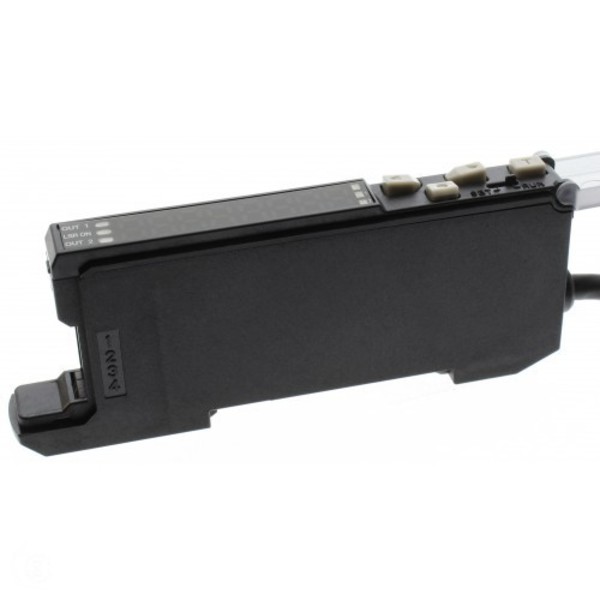

Optex D2SA-SN1 Laser Amplifier Sub Unit 1 Channel NPN
The threshold and the reflected light level are both indicated at the same time making the sensitivity set-up easy.
Quick connection between laser head and amplfier with the Econ connector. All laser heads are connectable to any D2SA amplifier.
Interconnect version allows for simple connection betweein main unit and sub units.
Specifications:
| Sensing Mode | Digital Display Push-Button Teach Amplifier |
| Features | Slave Unit - Interconnect Type |
| Supply Voltage | Powered By Master Unit Amp |
| Operation Temperature | -25 to +55° C |
| Sensing Distance | N/A |
| Repeatability / Response Time | 60µs, 500µs & 2ms |
| Light Source | |
| Wave Length | |
| Maximum Output | |
| Laser Class IEC / JIS | |
| Laser Class FDA | |
| Laser Spot Size (Diffuse Reflective) | N/A |
| Digital Control Output | 1CH NPN |
| Analog Output | None |
| Protection / Enclosure Type | IP50 |
| Connection | 2 meter cable type |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
