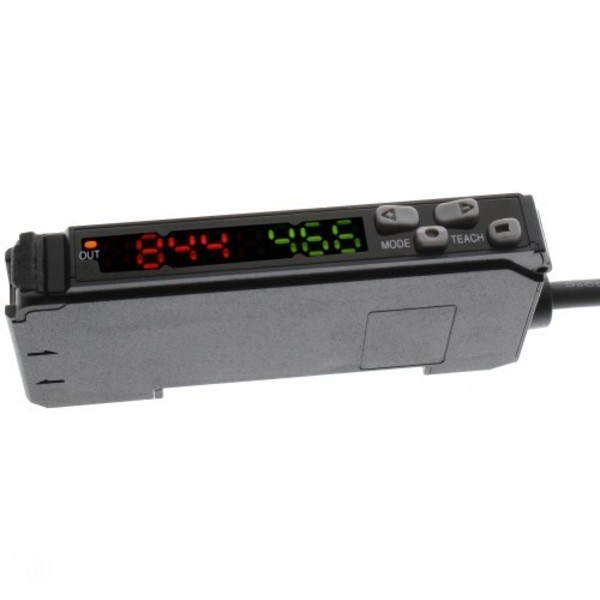

OPTEX D3IF-TN DIGITAL TEACH FO AMP FOR MOISTURE SENSING

MSRP: $393.00
Starting At: $385.14

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: D3IF-TN
IMS Product Code: 1780421
Packaging: Sold Individually

Description:

Optex D3IF-TN Digital Teach FO Amp for Moisture Sensing NPN - 2M Cable

A specially modulated infrared light source is used. This light source is absorbed when detecting water molecules. The high accuracy processor enables excellent ability to determine amount of liquid present.

Requires NF-DW01 or NF-TW01 Fiber Optic Cables or other fiber cables made from glass

Basic setup is as easy as pressing the teach button for 2 seconds. more advanced functions are located in a deeper setup layer for solving more complex applications

Hysteresis can be adjusted from 1% to 40%. This enables the sensor to be optimized for detecting slight differences in parts or applications with a lot of vibration

Specifications:

Sensing Mode - TypeFiber Optic Amplifier
FeaturesDesigned for detection of moisture using NF-DW01 diffuse or NF-TW01 thrubeam fiber cables
Sensitivity AdjustmentPB teach with 2-button fine adjust
Supply Voltage12 to 24 VDC
Light SourceIR LED
IndicatorsDual Digital LEDs Light Level (Red) Threshold (Green)
Model TypeStand-Alone Type
Cross-Talk Prevention
LED Power Level Control
Current Consumption39mA Max - 25mA max: 1ch/Power Saving Mode
Response TimeSettable: (7 Levels) from 16µs to 8ms
OutputNPN
Output Operation ModeLight-on / dark-on selectable
Timer/Counter OptionProgrammable time delay or up/down counter
Shock Rating50G
ProtectionIP50
Temperature-25 to 55° C
Connection2 meter cable
IncludesBEF-WLL170 DIN bracket

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
