OPTEX D3RF-TDSN DIGITAL TEACH FO AMP SLAVE UNIT - RED LED 2CH NPN

MSRP: $168.00
Starting At: $164.64

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: D3RF-TDSN
IMS Product Code: 1780453
Packaging: Sold Individually

Description:

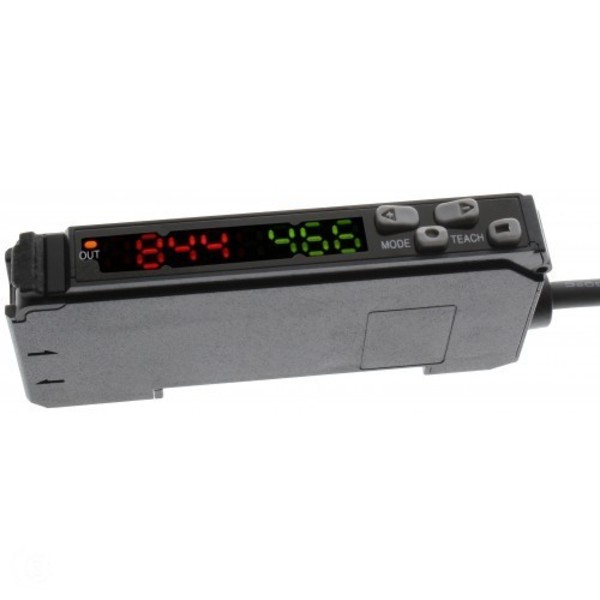

Optex D3RF-TDSN Digital Teach FO Amp Slave Unit - Red LED 2CH NPN - 2M Cable

Basic setup is as easy as pressing the teach button for 2 seconds. more advanced functions are located in a deeper setup layer for solving more complex applications

Hysteresis can be adjusted from 1% to 40%. This enables the sensor to be optimized for detecting slight differences in parts or applications with a lot of vibration

As fast as 16 microsecond response time for the stand alone versions and 22 microseconds for the interconnect versions. Utilizing a new method of emitting the beam the D3RF Series has increased sensing distances by as much as 5 times over previous generations of fiber amplifiers.

Specifications:

Sensing Mode - TypeFiber Optic Amplifier
FeaturesDual 4 Digit Display
Sensitivity AdjustmentPB teach with 2-button fine adjust
Supply Voltage12 to 24 VDC
Light SourceRed LED
IndicatorsDual Digital LEDs Light Level (Red) Threshold (Green)
Model TypeInter-Connect Type Slave Unit
Cross-Talk PreventionUp to 16 amplifiers w/master-slave
LED Power Level ControlSettable levels: 100%, 50%, and 25%
Current Consumption39mA Max - 25mA max: 1ch/Power Saving Mode
Response TimeSettable: (7 Levels) from 16µs to 8ms
OutputNPN 2 channel
Output Operation ModeLight-on / dark-on selectable
Timer/Counter OptionProgrammable time delay or up/down counter
Shock Rating50G
ProtectionIP50
Temperature-25 to 55° C
Connection2 meter cable
IncludesBEF-WLL170 DIN bracket

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
